- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
30 Years
-
Brand Name:
-
Jinko Solar
-
Model Number:
-
JKM470M-7RL3
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
2182*1029*35mm
-
Item name:
-

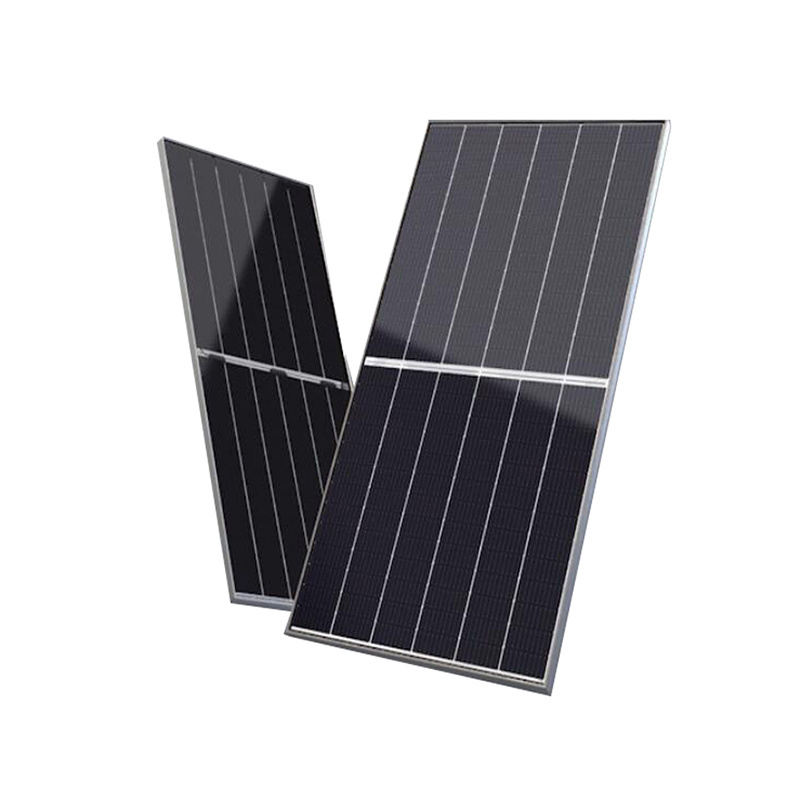

Jinko 470w solar panel
-
Solar cell:
-
N type monocrystalline
-
Weight:
-
25.0KG
-
Junction Box:
-
IP67 Rated, 3 diodes
-
Frame:
-
Anodized Aluminium Alloy
-
Connector:
-
MC4 Compatible Connector
-
Cable:
-
4mm2
-
Front Glass:
-
3.2mm Tempered Glass Low Iron
-
Backsheet:
-
Double-Sided TPT
-
Frame Color:
-
Silivery
-
Certificate:
-
TUV/IEC61215/IEC61730/CEC/CE/PID/ISO/INMETRO
Quick Details
-
Cell size:
-
166mmx166mm
-
Type:
-
PERC, Half Cell, Bifacial, Double-glass, All Black, MWT, IBC, HJT, hbc, N-TYPE, TOPCON, BIPV, Flexible, Overlapping
-
Panel Efficiency:
-
20.65%
-
Warranty:
-
30 Years
-
Brand Name:
-
Jinko Solar
-
Model Number:
-
JKM470M-7RL3
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
2182*1029*35mm
-
Item name:
-
Jinko 470w solar panel
-
Solar cell:
-
N type monocrystalline
-
Weight:
-
25.0KG
-
Junction Box:
-
IP67 Rated, 3 diodes
-
Frame:
-
Anodized Aluminium Alloy
-
Connector:
-
MC4 Compatible Connector
-
Cable:
-
4mm2
-
Front Glass:
-
3.2mm Tempered Glass Low Iron
-
Backsheet:
-
Double-Sided TPT
-
Frame Color:
-
Silivery
-
Certificate:
-
TUV/IEC61215/IEC61730/CEC/CE/PID/ISO/INMETRO
Product Details
|
Mechanical Data
|
|
|
|
|
||||
|
Model:
|
JKM470M-7RL3-TV
|
|
|
|
||||
|
Cell type:
|
N type monocrystalline
|
|
|
|
||||
|
Cell number:
|
156 (2*78)
|
|
|
|
||||
|
Dimensions:
|
2182×1029×35mm (86.81×40.63×1.38 inch)
|
|
|
|
||||
|
Weight:
|
25.0 kg (55.12 lbs)
|
|
|
|
||||
|
Front glass:
|
3.2mm,Anti-Reflection Coating, High Transmission, Low Iron, Tempered Glass
|
|
|
|
||||
|
Junction box:
|
IP67 Rated
|
|
|
|
||||
|
Frame:
|
Anodized Aluminium Alloy
|
|
|
|
||||
|
Connector:
|
MC4 Compatible
|
|
|
|
||||
|
Output Cables:
|
TUV 1×4.0mm2 (+): 250mm , (-): 150 mm or Customized Length
|
|
|
|
||||
|
Standard Test Conditions:
|
AM1.5 100MW/cm 25°C
|
|
|
|
||||
|
Electrical Data
|
|
|
|
|
|
|||||
|
Peak Power Watt- Pmax (W)
|
450W
|
455W
|
460W
|
465W
|
470W
|
|||||
|
Maximum Power Voltage- Vmpp (V)
|
43.48
|
43.54
|
43.60
|
43.66
|
43.72
|
|||||
|
Maximum Power Current- Impp (A)
|
10.35
|
10.45
|
10.55
|
10.65
|
10.75
|
|||||
|
Open Circuit Voltage- Voc (V)
|
51.7
|
51.8
|
51.9
|
52.00
|
52.10
|
|||||
|
Short Circuit Current- Isc (A)
|
11.07
|
11.16
|
11.25
|
11.34
|
11.43
|
|||||
|
Module Efficiency (%)
|
19.78
|
20.00
|
20.21
|
20.43
|
20.65
|
|||||
|
Power Output Tolerance (W)
|
0 ~ +3
|
|
|
|
|
|||||
|
STC
|
Irradiance 1000W/m², Cell temperature 25℃, Air Mass AM1.5
|
|
|
|
|
|||||
|
Operational Temperature
|
-40~+85℃
|
|
|
|
|
|||||
|
Maximum System Voltage
|
1500V DC(IEC), 1500V DC(UL)
|
|
|
|
|
|||||
|
Max Series Fuse Rating
|
20A
|
|
|
|
|
|||||
Product Description
Packing & Delivery
|
Packing
|
31pcs/pallet,310pcs/20'GP,620pcs/40'HQ
|
|
Carton size
|
2.15*1.14*1.14m
|
|
Gross weight
|
813KG
|
|
Shipping way
|
by express, by air, by sea
|
|
Lead time
|
within 5 working days after received the payment.
|
Project
10MW solar power station project in Israel
5.7MW solar power plant project in Australia
2.5MW solar panel project in Netherland
200KW on grid solar project in California,USA
320KW on grid solar project in Poland
