Quick Details
-
Model Number:
-
MG13
-
Product name:
-
Elastomer Bellows MG13 Mechanical Seal
-
Feature:
-
Elastomer Bellows Mechanical Seal
-
Temperature:
-
-20~140℃
-
Pressure:
-
< 1.5MPa
-
Line speed:
-
< 10m/s
-
Certificate:
-
ISO9001:2015
-
MOQ:
-
1set
-
Application:
-
Pump
-
Item:
-
Mechanical seal
Quick Details
-
Size:
-
Standard Size, Standard Size
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
Zhaoqiang
-
Model Number:
-
MG13
-
Product name:
-
Elastomer Bellows MG13 Mechanical Seal
-
Feature:
-
Elastomer Bellows Mechanical Seal
-
Temperature:
-
-20~140℃
-
Pressure:
-
< 1.5MPa
-
Line speed:
-
< 10m/s
-
Certificate:
-
ISO9001:2015
-
MOQ:
-
1set
-
Application:
-
Pump
-
Item:
-
Mechanical seal

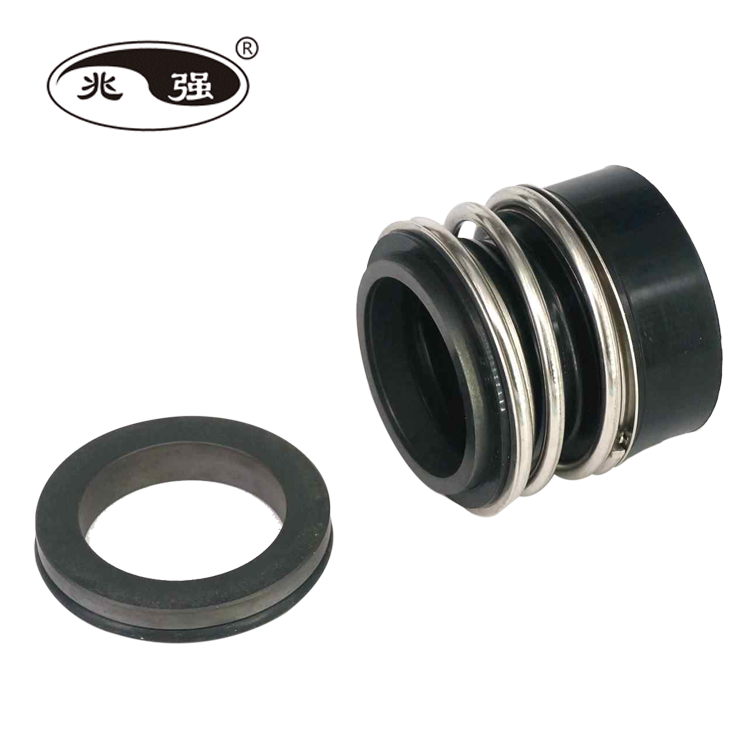

Elastomer Bellows MG13 Mechanical Seal
The bellows is not subjected to any torsional stress and its ingenious design incorporates several functions, as seal face carrier, secondary sealing element and drive collar.
The seal face is driven through the spring and “L“-rings.
There are no bonded joints and all the face materials are interchangeable without having to modify any dimensions.
Highly recommended for duties with media containing solids eg. in waste water and sewage applications
Mechanical Seal Operating Limits
Pressure: ≤ 1.5Mpa
linear velocity: ≤ 10m/s
Temperature: -20~140℃
Mechanical Seal Material
•Stationary Ring(Ceramic/SiC/TC)
•Rotary Ring(Carbon/SiC/TC)
•Secondary Seal(NBR/EPDM/VITON)
•Spring & Other Parts(SUS304/SUS316)
