Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
TYM
-
Model Number:
-
PE
-
Dimension(L*W*H):
-
as model
-
Weight:
-
as model
-
Warranty:
-
1 year
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
stone crusher machine price
-
Installation:
-
under the guidance of engineer
-
Warrenty:
-
1 year
-
After-sale service:
-
training, technical support, etc.
-
Material:
-
Mn-steel
-
Color:
-
Yellow Iron Grey
-
Spare parts supply:
-
life long supply
-
Motor:
-
Chinese famous brand
-
Price:
-
competitive
-
Certification:
-
ISO CE SGS
Quick Details
-
Application:
-
stone ore crushing, cement, corhart, refractory, building material, etc.
-
Power:
-
as model
-
Capacity(t/h):
-
as model
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
TYM
-
Model Number:
-
PE
-
Dimension(L*W*H):
-
as model
-
Weight:
-
as model
-
Warranty:
-
1 year
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
stone crusher machine price
-
Installation:
-
under the guidance of engineer
-
Warrenty:
-
1 year
-
After-sale service:
-
training, technical support, etc.
-
Material:
-
Mn-steel
-
Color:
-
Yellow Iron Grey
-
Spare parts supply:
-
life long supply
-
Motor:
-
Chinese famous brand
-
Price:
-
competitive
-
Certification:
-
ISO CE SGS

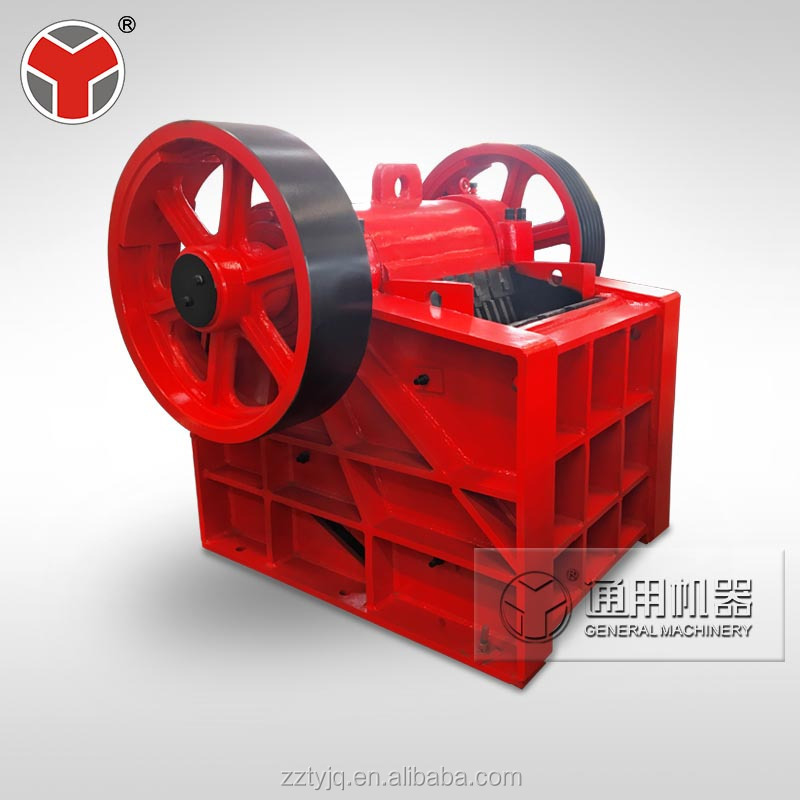

Quarry Rock Ore Stone Breaking Crusher Mineral Crushing Mining Machine
1. Application of stone crusher machine price :
Jaw crusher widely used for crushing various materials like stone, granite, trap rock, coke, coal, manganese ore, iron ore, emery, fused aluminum, oxide, fused calcium carbide, lime stone, quartzite, alloys, etc.
2. Working Principle of stone crusher machine price :
The motor transmits power through belt, drives the moving jaw do periodic motion to the fixed jaw surround the eccentric shaft. The angle between toggle plate and moving jaw increases when moving jaw moves up. So the moving jaw closes to the fixed jaw. The stuff will be crushed in this process. The angle between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw moves away from fixed jaw by the pulling of rod and spring, the products such as stone after crushing will be discharged from the outlet.
3. Advantages of stone crusher machine price :
- High ratio of crushing
- Homogeneous final grain size
- Simple structure
- Reliable working condition
- Easy maintenance
- Low operating cost
4. Technical parameter of stone crusher machine price :
|
Model |
Size of Feeder Opening
|
Max. Feeding Size (mm) |
Capacity
|
Motor Power (KW) |
Overall Dimensions
|
Weight
|
|
PE150×250 |
150×250 |
125 |
1-3 |
5.5 |
896×745×935 |
0.8 |
|
PE250×400 |
250×400 |
200 |
5-20 |
15 |
1430×1310×1340 |
3 |
|
PE400×600 |
400×600 |
350 |
15-60 |
30--37 |
1700×1732×1653 |
7 |
|
PE500×750 |
500×750 |
425 |
50-100 |
45--55 |
2035×1921×2000 |
12 |
|
PE600×900 |
600×900 |
480 |
60-130 |
55--75 |
2290×2206×2370 |
17 |
|
PE750×1060 |
750×1060 |
630 |
80-180 |
90--110 |
2655×2302×3110 |
29 |
|
PE900×1200 |
900×1200 |
750 |
140-260 |
110-132 |
3789×2826×3025 |
58 |
|
PEX250×750 |
250×750 |
210 |
10-40 |
22--30 |
1667×1545×1020 |
5 |
|
PEX250×1000 |
250×1000 |
210 |
15-50 |
30--37 |
1550×1964×1380 |
7 |
|
PEX250×1200 |
250×1200 |
210 |
20-60 |
37--45 |
2192×1900×1950 |
8.5 |
5 . Stone Crusher machine in warehouse:
1.Price: negotiation
2.MOQ: 1 Set
3.Packaging Details: International Standard Container, Nude Packs or in Bulk.
4.Delivery Time: 5-15 days
