Quick Details
-
Brand Name:
-
DAYTAI
-
Use:
-
FTTH
-
Warranty Time:
-
1-2 years
-
Operation Wavelength (nm):
-
1310 ± 30 or 1550 ± 30
-
Typical Isolation (dB):
-
≥50
-
Return Loss (dB):
-
≥50
-
Power Handling (mW):
-
300
-
Operating Temperature (°C):
-
0~+70
Quick Details
-
Type:
-
Circulator, FTTx Solutions
-
Model Number:
-
3 Ports Optical Circulator
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DAYTAI
-
Use:
-
FTTH
-
Warranty Time:
-
1-2 years
-
Operation Wavelength (nm):
-
1310 ± 30 or 1550 ± 30
-
Typical Isolation (dB):
-
≥50
-
Return Loss (dB):
-
≥50
-
Power Handling (mW):
-
300
-
Operating Temperature (°C):
-
0~+70
Product Description

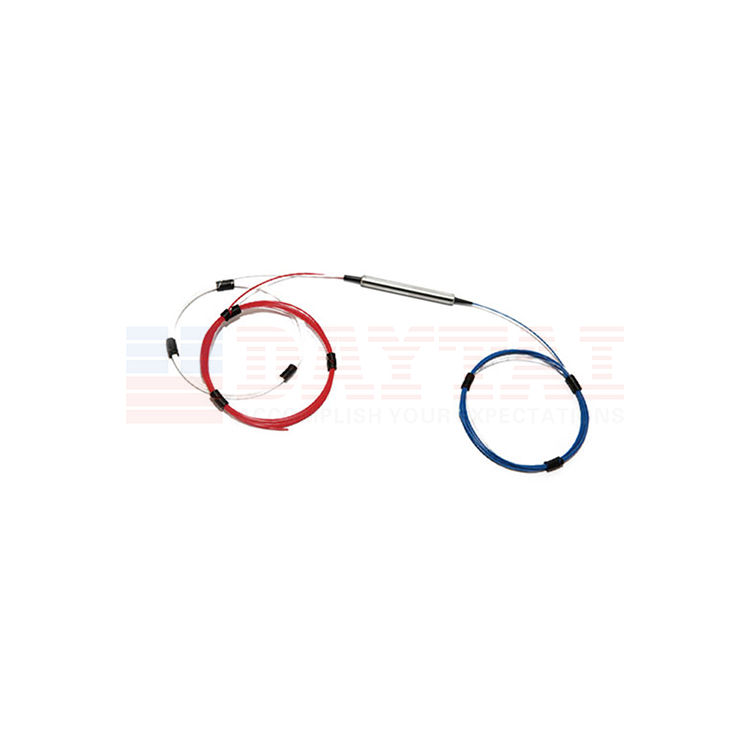

3 Ports Polarization-Insensitive Optical Circulator,Configuration:Port 1 to 2,Port 2 to 3,
Operation Wavelength:1310 ± 30 or 1550 ± 30,Insertion Loss:(Typical:0.6,Maximum:0.8),
Return Loss:≥50,Port:3 Port OR 4 Port,Wavelength:1310nm OR 1550nm,Grade:P Grade,
Package:Steel Tube OR ABS Box Module OR Specify,Fiber Diameter:250μm OR 900μm
OR 2.0mm OR3.0mm,Fiber Length:1m OR 2m OR Specify,Connector:Without,SC/APC,
SC/UPC,FC/APC,FC/UPC,LC/APC,LC/UPC,ST OR Specify.
★Features
⊙Low PDL
⊙Low insertion loss
⊙Wide band high isolation
⊙Compact in-line package
⊙High stability and reliability
⊙Epoxy free on optical path
★Specification
|
Parameter
|
|
P Grade
|
|
||
|
|
|
3 Ports
|
4 Ports
|
||
|
Configuration
|
|
Port 1 to 2,Port 2 to 3
|
Port 1 to 2, Port 2 to 3, Port 3 to 4
|
||
|
Operation Wavelength (nm)
|
|
1310 ± 30 or 1550 ± 30
|
|
||
|
Insertion Loss (dB)
|
Typical
|
0.6
|
1.0
|
||
|
|
Maximum
|
0.8
|
1.2
|
||
|
Typical Isolation (dB)
|
|
≥50
|
≥50
|
||
|
Minimum Isolation (dB)
|
|
≥40
|
≥30
|
||
|
Cross Talk (dB)
|
|
≥50
|
≥50
|
||
|
Polarization Dependent Loss (dB)
|
|
≤0.15
|
≤0.2
|
||
|
Polarization Mode Dispersion (ps)
|
|
≤0.1
|
|
||
|
Return Loss (dB)
|
|
≥50
|
|
||
|
Power Handling (mW)
|
|
300
|
|
||
|
Operating Temperature (°C)
|
|
0~+70
|
|
||
|
Storage Temperature (°C)
|
|
-40~+85
|
|
||
|
Package Dimension (mm)
|
For 250μm, 900μm
|
Φ5.5 x L50
|
Φ5.5 x L68
|
||
|
|
For 2.0mm, 3.0mm
|
90 x 20 x 10
|
|
||
★ Order Information
|
|
|
|
|
|
|
|
|
Port
|
Wavelength
|
Grade
|
Package
|
Fiber Diameter
|
Fiber Length
|
Connector
|
|
A=3 Ports
|
A=1310nm
|
A=P Grade
|
A=Steel Tube
|
A=250μm
|
A=1m
|
A=None
|
|
B=4 Ports
|
B=1550nm
|
|
B=ABS Box Module
|
B=900μm
|
B=2m
|
B=FC/APC
|
|
/
|
/
|
|
C=Specify
|
C=2.0mm
|
C=Specify
|
C=FC/UPC
|
|
|
|
|
|
D=3.0mm
|
|
D=SC/APC
|
|
|
|
|
|
/
|
|
E=SC/UPC
|
|
|
|
|
|
|
|
F=LC/APC
|
|
|
|
|
|
|
|
G=LC/UPC
|
|
|
|
|
|
|
|
H=ST
|
|
|
|
|
|
|
|
I=Specify
|
