Quick Details
-
Brand Name:
-
YOKE
-
Model Number:
-
YK-LDG
-
Medium:
-
liquid
-
Repeatability:
-
±0.1%
-
Connection:
-
Screw,Flange,Clamp
-
Rated Pressure:
-
0.6MPa~4MPa
-
Velocity range:
-
0.1~15m/s
-
Output:
-
4-20mA,Pulse
-
Communication Protocol:
-
RS485,MODBUS,HART,Profibus-DP
-
Power supply:
-
220VAC/ 24VDC
Quick Details
-
Type:
-

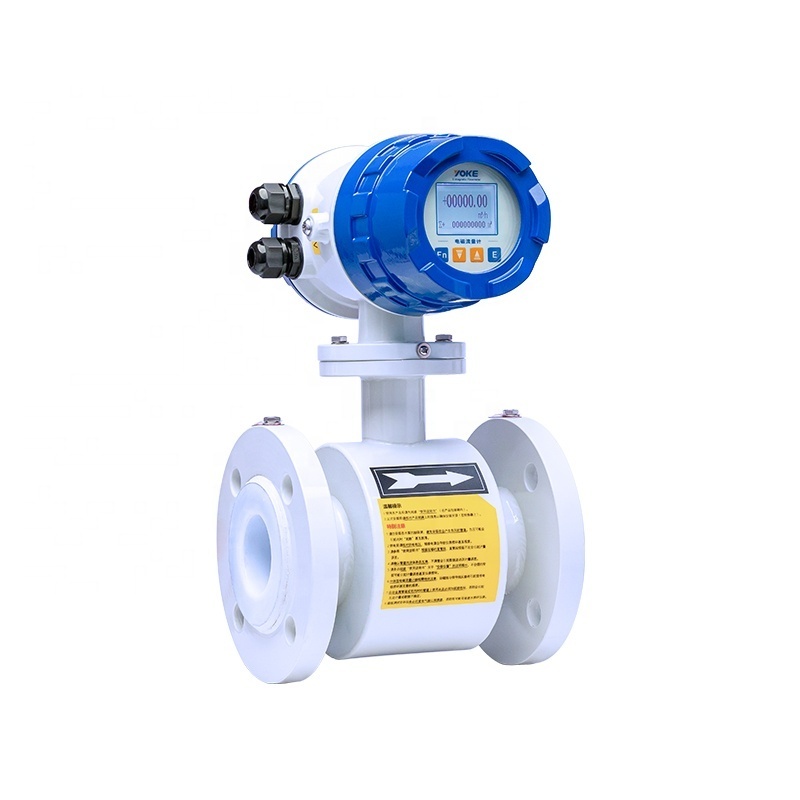

Electromagnetic Flow Meter
-
Warranty:
-
18 months
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
YOKE
-
Model Number:
-
YK-LDG
-
Medium:
-
liquid
-
Repeatability:
-
±0.1%
-
Connection:
-
Screw,Flange,Clamp
-
Rated Pressure:
-
0.6MPa~4MPa
-
Velocity range:
-
0.1~15m/s
-
Output:
-
4-20mA,Pulse
-
Communication Protocol:
-
RS485,MODBUS,HART,Profibus-DP
-
Power supply:
-
220VAC/ 24VDC
|
Technical Parameters
|
|
|
|
Main Application
|
Conductive Liquid(Water,Sewage,Chemical,Slurry etc)
|
|
|
Measuring Principle
|
Electromagnetic
|
|
|
Nominal Diameter Range
|
DN15 to DN1200
|
|
|
Wetted Materials
|
Liner:CR;PTFE;Telflon;PU
Electrode:SS316L;Ti;Ta;Pt |
|
|
Measured Variables
|
Current Flow
Totalized Flow Velocity |
|
|
Measure Precision
|
0.5%(0.2% optional)
|
|
|
Velocity Range
|
0.1-15m/s
|
|
|
Range Ratio
|
150:1
|
|
|
Repeatability
|
±0.1%
|
|
|
Conductivity Range
|
≥5μs/cm
|
|
|
Max Processed Pressure
|
PN6-PN40
|
|
|
Medium Temperature Range
|
Liner CR:-20~+90℃
Liner PTFE:-30~+160℃ Liner Telflon:-30~+120℃ Liner PU:-20~+60℃ |
|
|
Ambient Temperature Range
|
Stainless Steel:-40~+60℃
Carbon Steel:-10℃~+60℃ |
|
|
Sensor Housing Material
|
Carbon Steel with Protective Varnish
Stainless Steel |
|
|
Degree of Protection
|
Standard IP65
Optional IP68 |
|
|
Explosion Proof Grade
|
Exd[ia]qIICT5
|
|
|
Display/Operation
|
4-line backlit display with touch control (operation from outside)
Configuration via local display and operating tools possible Remote display available |
|
|
Outputs
|
1) 4-20 mA RS485 (active/passive)
2) 4-20 mA (active/passive) 3) Pulse/frequency/switch output (active/passive) 4) Relay output |
|
|
Digital Communication
|
Modbus RS485;HART
|
|
|
Power Supply
|
DC 24 V
AC 100 to 230 V 3.6V Lithium Battery |
|
Q1:Are you the Manufacturer?Why you are both trading company and manufacturer?
A1:We are manufacturer which is verified by Alibaba.We also have our owntrading indentification for more service for our clients.
Q2:How long is your warranty?
A2:Normally our warranty is 18 months.
Q3:How do you support the aftersale service?
A3:By phone call,by video chat,by sending our engineer to your work field.
Q4:How do you pack and ship your products?
A4:We pack our product with protective filler inside(such as foam),and packed with stable paper or wood carton outside.Normally we ship by air,for big quantity we ship by sea.
Q5:Do you provide the free sample?
A5:Normally we do not provide free sample,but we can deduct the sample charge when you set final order.
Q6:Could we buy through trade assurance?
A6:Absolutely,we higuly recommend you to trade through the trade assurance service of Alibaba.
Q7:How is the panment term?
A7:It is Negotiatable.Normally if the trade amount is less than $15000,the term need to be 100%T/T in Alibaba.
Q2:How long is your warranty?
A2:Normally our warranty is 18 months.
Q3:How do you support the aftersale service?
A3:By phone call,by video chat,by sending our engineer to your work field.
Q4:How do you pack and ship your products?
A4:We pack our product with protective filler inside(such as foam),and packed with stable paper or wood carton outside.Normally we ship by air,for big quantity we ship by sea.
Q5:Do you provide the free sample?
A5:Normally we do not provide free sample,but we can deduct the sample charge when you set final order.
Q6:Could we buy through trade assurance?
A6:Absolutely,we higuly recommend you to trade through the trade assurance service of Alibaba.
Q7:How is the panment term?
A7:It is Negotiatable.Normally if the trade amount is less than $15000,the term need to be 100%T/T in Alibaba.
