Quick Details
-
Model Number:
-
LF-5210
-
Brand Name:
-
Texoon
-
Customized support:
-
other
-
Product name:
-

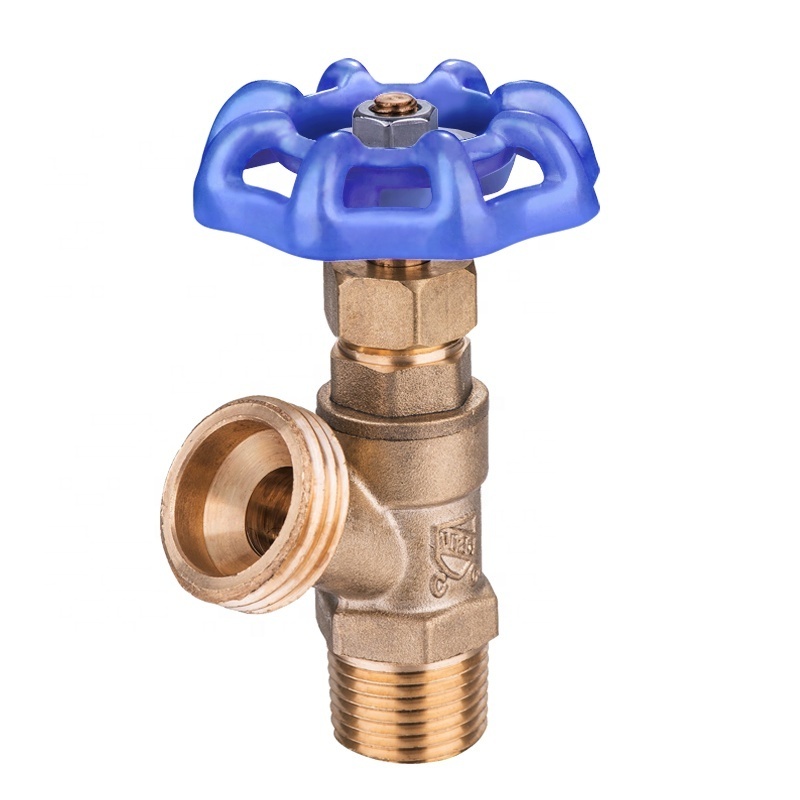

Brass Boiler valve Male NPT * NH Male
-
Material:
-
Brass/Lead Free Brass
-
Pressure:
-
Low Pressure
-
Warranty period:
-
2 years
Quick Details
-
Port Size:
-
1/2"-3/4"
-
Warranty:
-
2 years
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
LF-5210
-
Brand Name:
-
Texoon
-
Customized support:
-
other
-
Product name:
-
Brass Boiler valve Male NPT * NH Male
-
Material:
-
Brass/Lead Free Brass
-
Pressure:
-
Low Pressure
-
Warranty period:
-
2 years
Products Description
Specification
●Forged Brass Body
●NPT Thread Conform to ANSI B1.20.1
●Hose thread Conform to ANSI B1.20.7
Certification
●cUPC、NSF/ANSI 61、NSF/ANSI 372 and CSA B125.1 Approved
Model & Structure Dimension
|
Model
|
Size
|
Port
|
|
LF-52101
|
1/2"
|
0.472"
|
|
LF-52102
|
3/4”
|
0.472"
|
Material List
|
No.
|
Name
|
Material
|
QTY
|
|
1
|
Body
|
Lead Free Brass
|
1
|
|
2
|
Nut
|
Lead Free Brass
|
1
|
|
3
|
Stem
|
Lead Free Brass
|
1
|
|
4
|
Nut
|
Brass
|
1
|
|
5
|
Packing
|
PTFE
|
1
|
|
6
|
Nameplate
|
AL-Alloy
|
1
|
|
7
|
Handle Nut
|
Stainless Steel
|
1
|
|
8
|
Screw
|
Brass
|
1
|
|
9
|
Sealing Gasket
|
EPDM
|
1
|
|
10
|
Handle
|
Cast Iron
|
1
|
