Quick Details
-
Screw Speed (rpm):
-
34 rpm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
JWELL
-
Voltage:
-
Customized
-
Dimension(L*W*H):
-
4200*1500*2100
-
Power (kW):
-
115
-
Weight:
-
4000 KG
-
Raw material:
-
PVC Powder
-
Type:
-
Pipe Extrusion Making Machine
-
Screw type:
-
Twin Conical Screw
-
Pipe diameter:
-
16-630mm Pvc Pipe Machine
-
Temperature controller:
-
Japan RKC
-
Control:
-
SIEMENS PLC+Touch Screen
-
Gear box:
-
Jiangyin
-
Inverter:
-
ABB Brand
-
Output (kg/h):
-
300 - 350 kg/h
-
Name:
-
Jwell CPVC Pipe Plastic Compounding Machines for High-voltage Cable
Quick Details
-
Screw Design:
-
conical twin screw
-
Screw L/D Ratio:
-
80/156
-
Screw diameter (mm):
-
80 mm
-
Screw Speed (rpm):
-
34 rpm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
JWELL
-
Voltage:
-
Customized
-
Dimension(L*W*H):
-
4200*1500*2100
-
Power (kW):
-
115
-
Weight:
-
4000 KG
-
Raw material:
-
PVC Powder
-
Type:
-
Pipe Extrusion Making Machine
-
Screw type:
-
Twin Conical Screw
-
Pipe diameter:
-
16-630mm Pvc Pipe Machine
-
Temperature controller:
-
Japan RKC
-
Control:
-
SIEMENS PLC+Touch Screen
-
Gear box:
-
Jiangyin
-
Inverter:
-
ABB Brand
-
Output (kg/h):
-
300 - 350 kg/h
-
Name:
-
Jwell CPVC Pipe Plastic Compounding Machines for High-voltage Cable

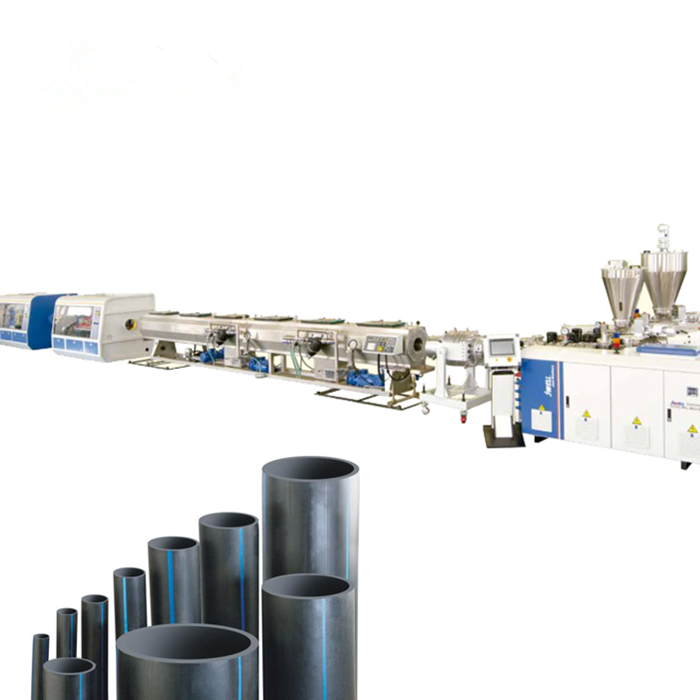

PIPES EXTRUSION LINES
Jwell CPVC Pipe Plastic Compounding Machines
for High-voltage Cable
Details Images
|
|
SJZ92/188
Twin-screw Extruder
|
|
Main power(kw)
|
110kw
|
|
Specification(mm)
|
315-630mm
|
|
Output(kg/h)
|
650-750kg/h
|
|
Heating power (kw)
|
5 Zones.Total 68kw
|
|
Fan power(kw)
|
0.55*4 Zones
|
|
|
Mold
|
|
Heating control area
|
17
|
|
Total heating power
|
45KW
|
|
Mode
|
Spiral, replaceable bush and core
|
|
Sizing sleeve
|
High-speed sizing sleeve
|
|
|
|
|
|
Vacuum calibration tank
|
|
Vacuum pump
|
5.5KW,2sets
|
|
Water pump
|
7.5KW,2sets
|
|
Tank material
|
Stainless steel (water contact area) |
|
length
|
2m+10.5m
|
|
Travel (screw movement)
|
110mm
|
|
Tank
|
High-level water tank
|
|
|
Haul off
|
|
Traction mode
|
Six Track Clamping
|
|
Clamping form
|
Pneumatic clamping
|
|
Effective track length
|
|
|
Traction speed
|
Maximum 0.1～1.5m/min
|
|
Driving motor
|
Electrical Control ,Servo-driven , 1.8kw×6 sets
|
|
|
Cutter
|
|
Mode
|
Cutting dust-free
|
|
Clamping form
|
Pneumatic system
|
|
Workbench displacement mode
|
气动系统Motor-driven movement
|
|
Diameter
|
315-630mm
|
|
Cutting accuracy
|
≤5mm
|
|
Motor power
|
5.5KW
|
|
|
Stacker
|
|
Length
|
8000mm
|
|
Form
|
welded
|
