Quick Details
-
Warranty:
-
1year
-
Brand Name:
-
Lingqiao
-
Model Number:
-
ZB
-
Place of Origin:
-
Guangxi, China
-
Power:
-
3kw, Electric
-
motor:
-
50MPa
-
Usage:
-
Oil
-
Standard or Nonstandard:
-
Standard
-
Product name:
-

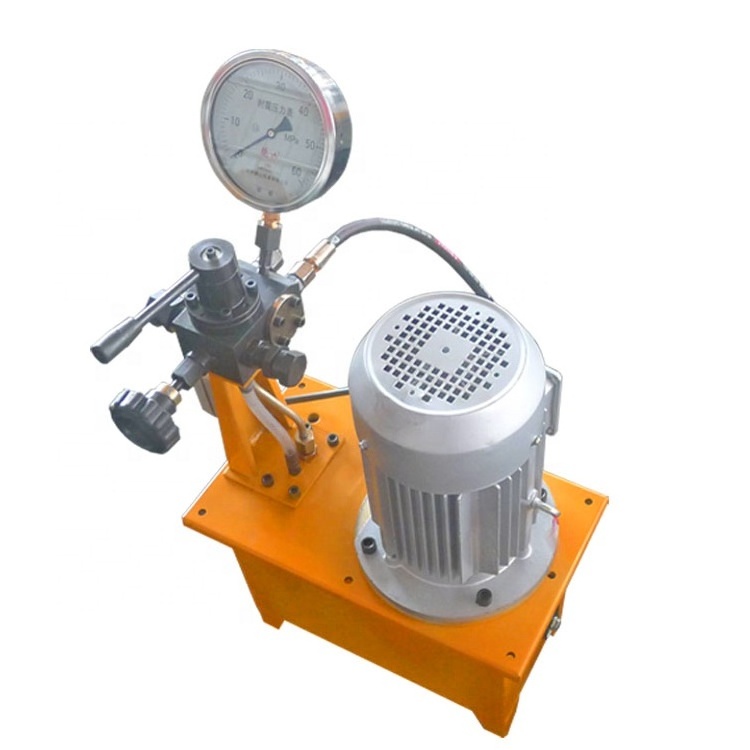

High Pressure Prestressed Jacking Hydraulic Electric Oil Pump
-
Certificate:
-
ISO9001:2008
-
Color:
-
Customers' Requirement
-
Type:
-
Hydraulic
-
Keywords:
-
Hand Oil Pump
-
Weight:
-
60KG
Quick Details
-
Application:
-
Other
-
Pressure:
-
High Pressure
-
Voltage:
-
220v
-
Warranty:
-
1year
-
Brand Name:
-
Lingqiao
-
Model Number:
-
ZB
-
Place of Origin:
-
Guangxi, China
-
Power:
-
3kw, Electric
-
motor:
-
50MPa
-
Usage:
-
Oil
-
Standard or Nonstandard:
-
Standard
-
Product name:
-
High Pressure Prestressed Jacking Hydraulic Electric Oil Pump
-
Certificate:
-
ISO9001:2008
-
Color:
-
Customers' Requirement
-
Type:
-
Hydraulic
-
Keywords:
-
Hand Oil Pump
-
Weight:
-
60KG
Best Price Advanced High Pressure Electric Hydraulic Oil Power Pump ZB2-500H for Concrete Works
Specifications of:
ZB serise High Pressure Prestressed Jacking Hydraulic Electric Oil Pump For Building consists of pump, control valve,cabinet,and internal pipes.P1 hydraulic system.
|
Type |
Nom. Pressure
MPa |
Nom. Flow
L/Min |
Power
KW |
Cylinder capacity
L |
Frequency
HZ |
Weight
K G |
Size
MM |
| ZB10-800H | 80 | 10x10 | 7.5 | 120 | 50 | 270 | 1090*590*1120 |
| ZB6-600 |
60 |
6x6 | 5.5 | 120 | 50 | 270 | 1090*590*1120 |
| ZB4-600H | 50 | 4x4 | 4 | 40 | 50 | 120 | 745*494*1052 |
| ZB4-500 | 50 | 2x2 | 3 | 40 | 50 | 130 | 745*494*1052 |
| ZB2-500 | 50 | 2x2 | 1.5 | 25 | 50 | 66 | 660*460*260 |
P1: Hydraulic System Chart
(1)The device is a self-priming axial plunger High Pressure Prestressed Jacking Hydraulic Electric Oil Pump For Building . When motor drives axis9, leaned tray will push the plunger into plunger sleeve and return spring raises the plunger. The plunger repeats the operation to meet the function of in-taking and out-putting oil.
|
P2:Pump Structure
|
1 | Screw Plug |
| 2 | Distributing | |
| 3 | Nozzle | |
| 4 | Lower Part | |
| 5 | Plunger Sleeve | |
| 6 | Plunger | |
| 7 | Return Spring | |
| 8 | Upper Part | |
| 9 | Axis | |
| 10 | Out-Put Port |
ZBs High Pressure Prestressed Jacking Hydraulic Electric Oil Pump For Building electric oil pump is the power resource and control device for wire tension, which is used in conjunction with various jacks(Nom. Pressure 50MPa), as well as other low flow or high-pressure hydraulic types of equipment.ZBs pump is based on ZBs additional installation of a three-way four-way valve improved, the advantage of the construction of the top tensioning anchor can be carried out at the same time, without having to separately uninstall the tubing.
· One set High Pressure Prestressed Jacking Hydraulic Electric Oil Pump For Building in one wooden box.
