Quick Details
-
Model Number:
-
RCV-278
-
Brand Name:
-
THT
-
Standard or Nonstandard:
-
Standard
-
Connection:
-
Flange ends
-
Product name:
-
Flange ends rubber duckbill valve
-
Body material:
-
rubber
-
Certificate:
-
ISO9001:2008 CE API
-
Medium:
-
Water
-
Size:
-
DN100-DN2000
-
Nominal pressure:
-
PN10, PN16
-
Packing:
-
Wooden Case
Quick Details
-
Port Size:
-
DN100-DN2000
-
Warranty:
-
12 months, 12 months
-
Place of Origin:
-
Tianjin, China
-
Model Number:
-
RCV-278
-
Brand Name:
-
THT
-
Standard or Nonstandard:
-
Standard
-
Connection:
-
Flange ends
-
Product name:
-
Flange ends rubber duckbill valve
-
Body material:
-
rubber
-
Certificate:
-
ISO9001:2008 CE API
-
Medium:
-
Water
-
Size:
-
DN100-DN2000
-
Nominal pressure:
-
PN10, PN16
-
Packing:
-
Wooden Case

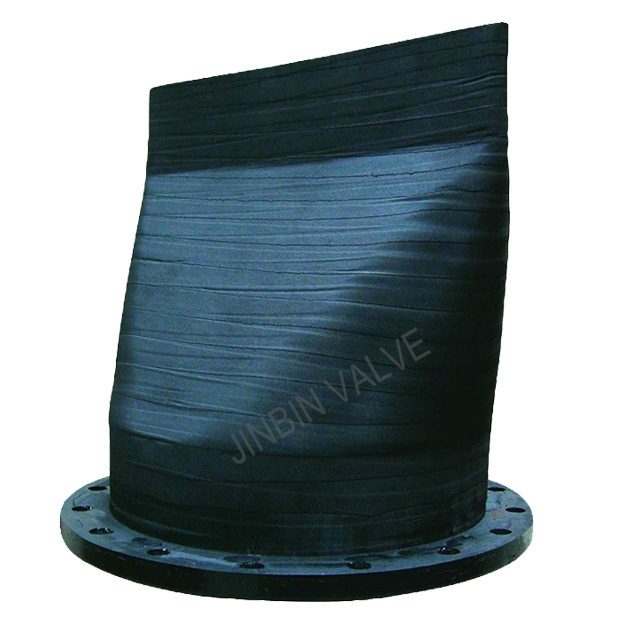

Flange ends rubber duckbill valve
Pressure and temperature
| working pressure | PN10/PN16 |
| testing pressure |
Shell: 1.5 times rated pressure, Seat: 1.1 times rated pressure. |
| working temperature |
-10°C to 80°C (NBR) -10°C to 120°C (EPDM) |
| suitable media | Water |
Main material list
| part | material |
| body | Chloroprene rubber, Neoprene, NBR & EPDM rubber, etc. |
| seat ring | NBR / EPDM |
| seat | metal |
Features & Benefits
•
Packaged in pallet box containers or on pallets, adequately protected for shipment.
•
Each valve is individually tested.
•
Various materials and services available to meet your unique requireme
Application:
Mainly used in water systems,drainage systems,outlet of water pumps and upgrading the pumping station and liquid aeration system. Rubber flange and valve body are as a whole, so the installation is very convenient.The valve body is designed with a full rubber, which will not cause siltation and stickin. It reduces the maintenance cost, and allow the solid particles to pass smoothly.
