Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
ROYALPACKING
-
Weight:
-
1250 kg
-
Marketing Type:
-
New Product 2022
-
Width:
-
1800mm
-
Max.design speed:
-
200m/min
-
Cutting precision:
-
±1mm
-
Order keeping:
-
999orders
Quick Details
-
Type:
-
NC Cutter
-
Production Capacity:
-
200m/min
-
Max. workable width:
-
1800mm
-
Place of Origin:
-
China
-
Brand Name:
-
ROYALPACKING
-
Weight:
-
1250 kg
-
Marketing Type:
-
New Product 2022
-
Width:
-
1800mm
-
Max.design speed:
-
200m/min
-
Cutting precision:
-
±1mm
-
Order keeping:
-
999orders

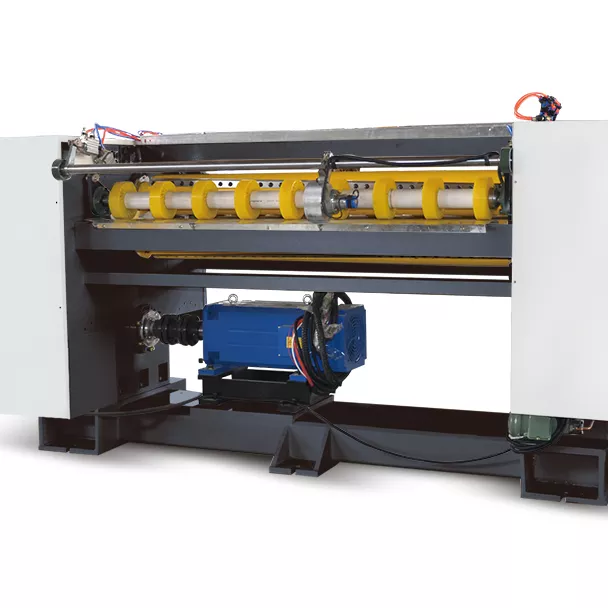

MJNC-1 High Speed NC Paperboard Cutter
(Computer control with spiral knife)
(Computer control with spiral knife)
Introduction
MJNC-1 High Speed NC paperboard cutter is mainly used for the transversely cutting of the corrugated paperboard, single-face paperboard, industrial paperboard. It is connected to the high-speed 7-layer, 5-layer, 3-layer corrugated paperboard production line and single-facer line. It has high working speed and high cutting precision. The Computer control system use German servo control technology. The technology is advanced all over the world.
Characteristics
1. Computer control intercourse servo controller drives the motor working, has high cutting precision.
2. Have following special functions: Order can be real-time input, the computer can save many different orders, edit, modify, save, real-time monitor (parameters of speed, cut length, rest length, production process and so on.), automatically change order (change in order, change by force), output, alarm for the rest order and so on.
3. Instantaneously control cutting length and numbers, can modify, add or cancel at any moment.
4. The transmission gears are dealt with grinding, spray lubrication.
5. High-quality alloy spiral knife, exactly gears driving, cutting is stable and smooth.
6. Intercourse servo cutting control, high precision, high efficiency and high credibility.
7. Frequency conversion control the transportation of input & output paperboard, synchronize with the production line.
8. Certain length, color-mark tracing the cutting, automatically change order.
9. Colorful touch-screen for easy operation, control and monitor.
10. Run in-phase with the paperboard production line.
MJNC-1 High Speed NC paperboard cutter is mainly used for the transversely cutting of the corrugated paperboard, single-face paperboard, industrial paperboard. It is connected to the high-speed 7-layer, 5-layer, 3-layer corrugated paperboard production line and single-facer line. It has high working speed and high cutting precision. The Computer control system use German servo control technology. The technology is advanced all over the world.
Characteristics
1. Computer control intercourse servo controller drives the motor working, has high cutting precision.
2. Have following special functions: Order can be real-time input, the computer can save many different orders, edit, modify, save, real-time monitor (parameters of speed, cut length, rest length, production process and so on.), automatically change order (change in order, change by force), output, alarm for the rest order and so on.
3. Instantaneously control cutting length and numbers, can modify, add or cancel at any moment.
4. The transmission gears are dealt with grinding, spray lubrication.
5. High-quality alloy spiral knife, exactly gears driving, cutting is stable and smooth.
6. Intercourse servo cutting control, high precision, high efficiency and high credibility.
7. Frequency conversion control the transportation of input & output paperboard, synchronize with the production line.
8. Certain length, color-mark tracing the cutting, automatically change order.
9. Colorful touch-screen for easy operation, control and monitor.
10. Run in-phase with the paperboard production line.
|
Model
|
MJNC-1-1800
|
MJNC-1-2200
|
|
Width
|
1800mm
|
2200mm
|
|
Cutting length
|
50 - 9999mm
|
50 - 9999mm
|
|
Order keeping
|
999orders
|
999orders
|
|
Cutting precision
|
±1mm
|
±1mm
|
|
Max.design speed
|
200m/min
|
200m/min
|
|
Economic production speed
|
180m/min
|
180m/min
|
✦ how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
✦why should you buy from us not from other suppliers?
We have our own factory in China. We have high quality employee team, special engineers, and special operators for export work of
machines.And we have our Sales branch In Amman city, Jordan.
✦How to operate the machine ?
We will deliver English manual and video with the machine to you. If you still need our help, please contact us.
✦Does the machine can be customized according to my requirements ?
Sure, we have a strong technical team and have rich experience. Our goal is to make you satisfied.
✦Can you arrange the shipment for me ?
We can arrange the shipment for our clients by sea or by air. Trading terms FOB, CIF, EXW are available.
Always a pre-production sample before mass production;
Always final Inspection before shipment;
✦why should you buy from us not from other suppliers?
We have our own factory in China. We have high quality employee team, special engineers, and special operators for export work of
machines.And we have our Sales branch In Amman city, Jordan.
✦How to operate the machine ?
We will deliver English manual and video with the machine to you. If you still need our help, please contact us.
✦Does the machine can be customized according to my requirements ?
Sure, we have a strong technical team and have rich experience. Our goal is to make you satisfied.
✦Can you arrange the shipment for me ?
We can arrange the shipment for our clients by sea or by air. Trading terms FOB, CIF, EXW are available.
