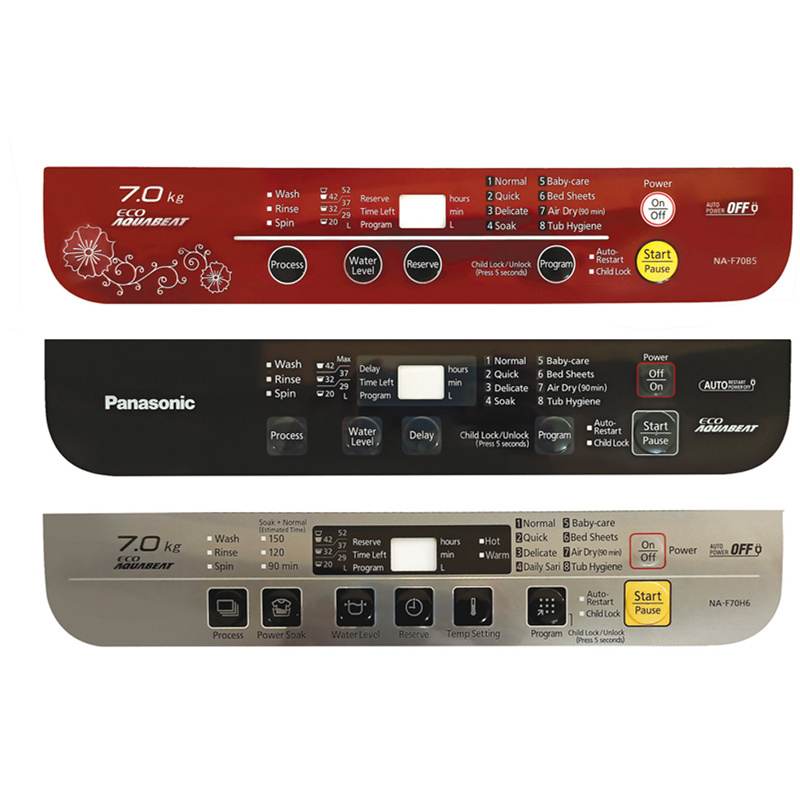

Custom home appliance function keypad membrane switch printing washing machine graphic overlay

Custom home appliance function keypad membrane switch printing washing machine graphic overlay

FOB Reference Price: Get Latest Price

≥5 Pieces

US $5

≥100 Pieces

US $0.5

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Application:: electronic equipment, electronic equipment

Cross Reference:: PET PC PMMA

Color:: Pantone and RAL color

Material:: PET PC PVC

printing type:: silk screen printing /3D digital printing

adhesive:: 3M467,3M468

size:: Customized Size Accepted

feature:: Waterproof, Dust-resistance, Durable

Connector:: 2..54mm female connector or 1mm ZIF connector

Circuit:: PET+Silver Circuit

Certification:: ISO9001/ISO14001/RoHS

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: CE

Model Number:: Customized

Application:: electronic equipment, electronic equipment

Cross Reference:: PET PC PMMA

Color:: Pantone and RAL color

Material:: PET PC PVC

printing type:: silk screen printing /3D digital printing

adhesive:: 3M467,3M468

size:: Customized Size Accepted

feature:: Waterproof, Dust-resistance, Durable

Connector:: 2..54mm female connector or 1mm ZIF connector

Circuit:: PET+Silver Circuit

Certification:: ISO9001/ISO14001/RoHS

What is a "membrane switch"?

Usually, the membrane switch is an integration of printed flex circuit and graphic overlays.

The surface pattern is covered on the flex circuit by adhesive, and the instant closing of the circuit can be instantly closed easily by pressing the keys on the membrane switches.

At the same time, the membrane switch is also the interface between human and machine, which makes it particularly important to consider its usage environment in the design.

The interface, function and layered structure of membrane switch can be customized.

That’s why it can be applied to many industries and meet the needs of different industries. Citic Treasure Electronic has experienced engineers who are very confident in providing customized membrane switches!

As a membrane switch manufacturer, Citic Treasure Electroni has rich experience in from concept to design, development, verification and manufacturing, helping customers transform their ideas into products.

Certificate

Electronic Characteristic	<35V ( DC ) <100mA 1W	Operation Force	flat type 57-284g (2-10 Oz), tactile type 170-397g (6-14 Oz
Contact Resistance	10Ω--500Ω (According the trace length and materials to confirm)	Life Expectancy	flat type ≥ 500 milliontimes, tactile type: ≥ 100 million times
Insulating Impedance	>100MΩ 250V DC	Operation Temperature	-40 °c ~ + 80 °c
Resistance of the wire	<1 Ω/cm width 1.27mm	Stock Temperature	-40 °c ~ + 85 °c

Structure of membrane switch

The structure of membrane switch can be designed according to different requirements. Usually, membrane switch has 5-8 layers or even more. The thickness can be controlled at about 0.6-1mm, which makes the membrane switch occupy less space. It is small in shape, thin and light, and easy to install. Membrane switches are generally composed of surface graphic overlay and adhesive, PET or copper foil and other materials

embossed key type

connector

Application

measuring instrument

medical equipment

industrial controls

health&fitness equipment
