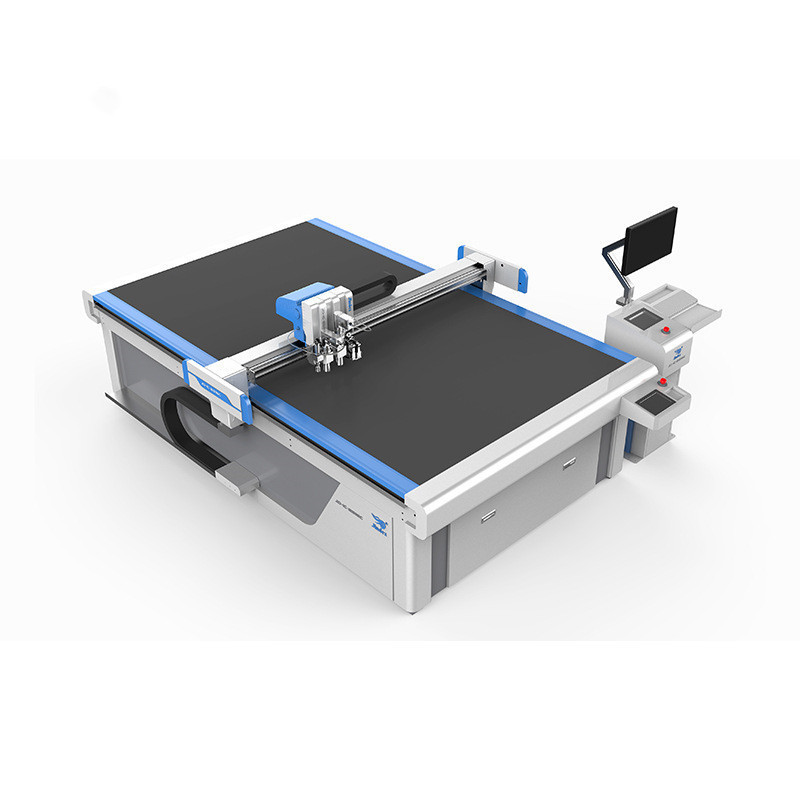

Jindex AI CNC knife cutting machine Fabric Textile Cutting Machine

Jindex AI CNC knife cutting machine Fabric Textile Cutting Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $12500

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Jindex

Power:: 11 kw

Dimension(L*W*H):: 325*230*140 cm

Weight:: 1200 KG

Cutting Area:: 250*160 cm (more optional)

Knife Tools:: Oscillating/Rotary Knife, Pen, Notch

Cutting Precision:: +/-0.2mm

Cutting Speed:: Max. 1500mm/s

Compliance Formats:: DXF/PLT

Cutting Thickness:: 0-30 mm

Material Fixing:: 9kw Vacuum punp

Optional Features:: Vision System/Software

Motors&Drivers:: Japanese Mitsubishi full servo

Quick Details

Production Capacity:: 30 sets/month

Voltage:: 380v

Place of Origin:: China

Brand Name:: Jindex

Power:: 11 kw

Dimension(L*W*H):: 325*230*140 cm

Weight:: 1200 KG

Cutting Area:: 250*160 cm (more optional)

Knife Tools:: Oscillating/Rotary Knife, Pen, Notch

Cutting Precision:: +/-0.2mm

Cutting Speed:: Max. 1500mm/s

Compliance Formats:: DXF/PLT

Cutting Thickness:: 0-30 mm

Material Fixing:: 9kw Vacuum punp

Optional Features:: Vision System/Software

Motors&Drivers:: Japanese Mitsubishi full servo

Product Description

Jindex Factory Direct Sales Intelligent CNC Carton Packaging Box Cutting Machine Honeycomb Plate V Groove Cutter

Standard configuration C:

6 axis, Oscillating knife + V cut + independent presser + pen + half cut head

Technical information/model	JD-AS-2516A
Cutting Areaa	250*160CM
Cutting Speed	<1000mm/s
Available Material	Rotating knife,vibrating knife,punch,pressing pin
Material Fixed Method	Vacuum Suction
Command System	Compatible format of HP-GL,GP-GLand IPP-G1
Supply Voltage	AC 220V 380V ±10%,50HZ

Our Advantages

Japanese MITSUBISHI motor

High precision and stable

Safety Device.

Front,back,left and right four-way anticollision safety device.

System

Jindex leather digital intelligent management system

1.Fully automatic camera positioning function (optional):Automatically realize printing materials with advanced CCD camera Positioning and cutting of the material

2. Fixed Platform: Fixed Platform with High Precision.

3. High-power Round Knife Oscillating Head: Upgrade 120W high-power motor, strong and powerful

4. High-speed Oscillating head:Efficient cutting speed to achieve high quality cutting effect.

5. Optional automatic partition adsorption, 8-48 adsorption adsorption. Can follow adsorption, and automatically correct the table to ensure accurate cutting

OEM Service

We are manufacturer to make machine. We can make machine as your request.

So we strongly welcome all of you to get customization service.

To meet all our customers' requirements.

So you can tell us your detailed requirements .

Such as: cutting which material , need use which cutting tool, need how many axis and so on.

Please contact us free for more details!

For this cutting machine can choose configuration .

There are 4 configuration . you can choose A or B or C or D .

Different configuration ,different price.

Configuration A (4 axis, Oscillating knife + pen)

Configuration B (4 axis, Oscillating knife+ Pneumatic rotary presser（notch）+ pen)

Configuration C (6 axis, Oscillating knife + V cut（independent presser）+ half cut head + pen)

Configuration D (7 axis,Spindle + Oscillating knife + V cut（independent presser）+ half cut head + pen)

Jindex Intelligent Oscillating Cutting Machine AS Series-Cutting Tool Optional: A variety of optional tools:Oscillatng knife,
presser, half knife, V knife, foam knife, milling cutter, round Knife, etc.

Recommend Products

Packing&Shipping

We Will Pack Machine By Carton Or Wooden .

We Will Ship Machine By Sea After Receiving Payment 7-15 Days.

More Quantity Need Consultation .

Company Introduction

Shen Zhen Jindex Stock Co., Ltd. a s high-technology company in professional R&D, manufacturer, sales and after service in CAD/CAM fields, that’s globally advanced and smart auto cutting machine manufacturer with full production lines for soft material and sales in 60 different countries oversea.

Jindex senior R&D and production people have nearly 20 years experience in the high-tech CAD/CAM industry. It has created a high-quality service team to serve nearly 10,000 customers at home and abroad after nearly ten years of development. Thanks to the praise of customers, we will work harder!worldwide.
