Quick Details
-
Warranty(Year):
-
5-Year
-
Color Temperature(CCT):
-
6500K
-
Input Voltage(V):
-
AC100-277V
-
Lamp Luminous Flux(lm):
-
30000
-
Working Temperature(℃):
-
-30 - 50
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Rayborn
-
Model Number:
-
RB-HB-200WU2
-
LED Chip:
-
SMD3030 led high bay
-
Power Factor:
-
>0.98 industrial pendant led ufo 200 power 200w
-
Power Efficiency:
-
>92% Industrial UFO Lights
-
Luminous Efficiency:
-
150lm/W, 160lm/W reflector led high bay light
-
LED Power:
-
250W LED High Bay Luminaires
-
Beam Angle:
-
60°/90°/120° led industrial lamps
-
Size:
-
460*H238mm high bay reflector
-
Color Temperature (CCT):
-
3000K, 4000K, 5000K, 6000K ufo led industrial lamps
-
Housing Color:
-
Black, White led industrial light
-
Installation:
-
Hanging hook, Hanging ring, Angle adjustable
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
150
-
Lamp Body Material:
-
Aluminum
-
Application:
-
Warehouse
-
Warranty(Year):
-
5-Year
-
Color Temperature(CCT):
-
6500K
-
Input Voltage(V):
-
AC100-277V
-
Lamp Luminous Flux(lm):
-
30000
-
Working Temperature(℃):
-
-30 - 50
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Rayborn
-
Model Number:
-
RB-HB-200WU2
-
LED Chip:
-
SMD3030 led high bay
-
Power Factor:
-
>0.98 industrial pendant led ufo 200 power 200w
-
Power Efficiency:
-
>92% Industrial UFO Lights
-
Luminous Efficiency:
-
150lm/W, 160lm/W reflector led high bay light
-
LED Power:
-
250W LED High Bay Luminaires
-
Beam Angle:
-
60°/90°/120° led industrial lamps
-
Size:
-
460*H238mm high bay reflector
-
Color Temperature (CCT):
-
3000K, 4000K, 5000K, 6000K ufo led industrial lamps
-
Housing Color:
-
Black, White led industrial light
-
Installation:
-
Hanging hook, Hanging ring, Angle adjustable

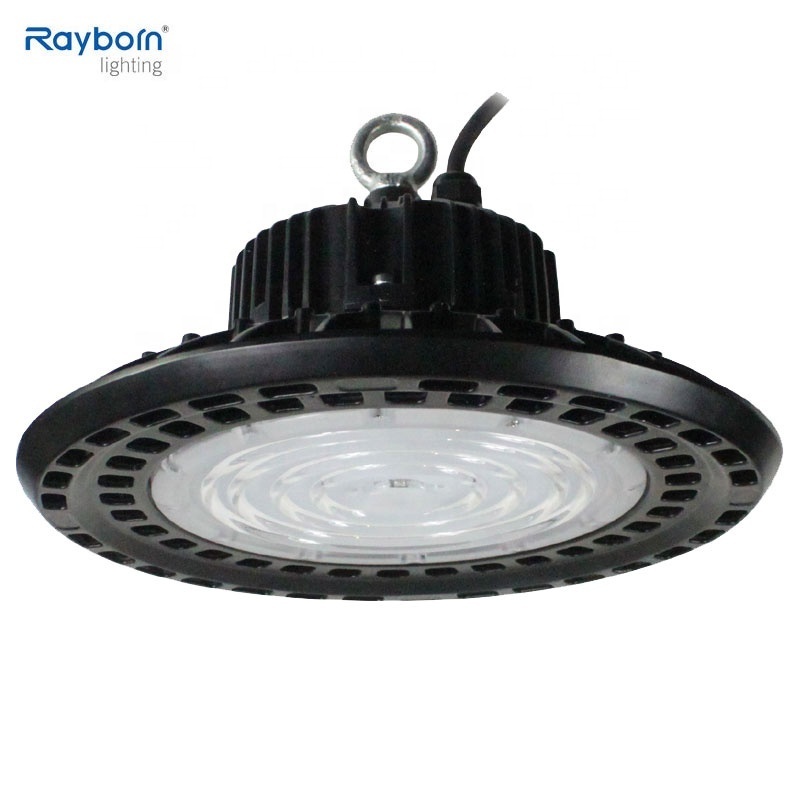

Ceiling Mount 250w 150w Emergency Pack Battery High Bay Industrial Led Light Fixtures with Stainless Roof Hook
S pecifications of 100 W 150W 200W 250W UFO LED High Bay Light :
200W UFO LED HIGH BAY | |||
Item No.: | RB-HB-200WU2 | ||
Input Voltage: | AC 100-277V | ||
Freqency Range: | 50Hz~60Hz | ||
LED Chip: | Lumileds Chip | ||
Power Driver: | Meanwell | ||
Power Factor: | >0.98 | ||
Power Efficiency: | >93% | ||
Luminous Efficiency: | 150LM/W | ||
LED Power | 200W | ||
LED QTY: | 343pcs 3030SMD | ||
LED Working Voltage: | DC 42~48V | ||
System Consumption: | 205W | ||
LIGHT Luminous Flux | Warm White | 26000LM | |
Pure White | 28000LM | ||
Cool White | 28000LM | ||
Viewing Angle: | 120/90/60 degree | ||
Center Luminance | Height 3M | 4728LUX | |
Height 4M | 2659LUX | ||
Height 5M | 1702LUX | ||
Illuminance Area | Height 3M | Dia.267CM points visible | |
Height 4M | Dia.356CM points visible | ||
Height 5M | Dia.445CM points visible | ||
Illuminance Uniformity: | >0.6 | ||
Color Temperature | Warm White | 3000K~3500K | |
Pure White | 4000K~5500K | ||
Cool White | 6000K~6500K | ||
Color Rendering Index | Ra>80 | ||
Light Distribution: | LED points visible | ||
LED Junction Temperature: | ≤115℃ | ||
Working Temperature: | –35℃~65℃ | ||
IP Grade: | IP65 | ||
Working Life-span: | 50000 H | ||
Power Line: | 1.0 m three line | ||
Connect Wire | Brown | L | |
Blue | N | ||
Yellow / Green | G | ||
Certificate | CE/ET/SAA/RoHS | ||
Size: | 400*H170 | ||
Net Weight: | 6.3KG | ||
Packaging | 45.5*45.5*22.5cm | ||
Price | Contact us get best price |
UFO LED High bay Light Features:
1. UFO design LED High Bay light ,60W/100W/150W/200W/250W all are avaliable ;
2. The luminous efficacy of whole lamp can reach 135-160LM/W with high brightness ;
3. LED High bay light are adopted Metal plate pure aluminum heat sink and heat conduction by copper cylinder ;
4. Difference beam angle 60/90/120 degree distribution design as optional ;
5. Reflective rate >90%, CRI is more high,and Lighting is more comfortable ;
6. 304 Stainless steel,high quality, easy install,good rust prevention and durable ;
7. The welding spot high temperature of LED Chip is 70ºC, the high temperature of heat sink is 55 ºC,with excellent heat dissipation capacity and low Light decay ,greatly improves the life of lamps ;
8. Installation ways :rings with chains or other installation accessories ;
9. Waterproof IP65 design ,widely use for indoor and outdoor ,suitable for warehouse ,industrial ,cold storage ,steel workshop etc .
UFO LED High Bay Light Competitive Advantage:
1. CE & RoHS & TUV&SAA approved, Quality Guaranteed
2. Imported original high brightness LED chip, superior light source
3. OEM & ODM welcome, independent R&D ability, patent design.
4. Fast delivery, 2-15 workdays depends on order quantity after payment confirmed
5. Reliable quality & credit, 5 years warranty and 50.000 hours lifespan
Installation Information of 20 0W UFO LED High Bay Light :
1. Check all the parts and accessories of UFO LED High bay light;
2. Must cut off the power supply before installation;
3. Make sure the light is fixed tightly to the surface of place for installation ;
4. Connect the power line of light with power supply, then switch on the power.
5. When the UFO highbay light is working, it must be kept vertical downward.
Applications of UFO High Bay LED Light :
1. Workshop and factory lighting.
2. Shopping mall lighting.
3. Museum and stadium lighting.
4. Highway toll station and gas station lighting.
5. Warehouse and smeltery lighting.
Strict Tests of Industrial LED High Bay Lighting :
Before shipping, all the LED high bay lights will be over 24 hours aging tested, inspection department will test 100% products including light up test , power wattage test , high-Voltage test , waterproof test , ground connection test and so on, d efective rate is controlled less than 0.1% . Quality is ensured, you can be assured.
We have CE,RoHS,SAA certifications and so on.So you can rest assured to use our products.
