Quick Details
-
Warranty:
-
1 year
-
Brand Name:
-
HENGBIAO
-
Model Number:
-
G
-
Place of Origin:
-
Hebei, China
-
Outlet Size:
-
25-200mm
-
Power:
-
220V/380V/400v-480v
-
Usage:
-
Chemical Industry
-
Material:
-
Stainless Steel
-
Keywords:
-
Screw pump
-
Certification:
-
ISO9001
-
Fuel:
-
AC Electric Induction Motor
-
Standard or Nonstandard:
-
International Standard
-
Max Tempeature:
-
150 Celsius
-
Sealing:
-
Mechanical Seal
-
Advantage:
-
Flow Stability,Small Pulse Fluctuation
-
MOQ:
-
1 Set
Quick Details
-
Application:
-
Food and Beverage Industry
-
Pressure:
-
Low Pressure
-
Voltage:
-
0.75-37 kW
-
Warranty:
-
1 year
-
Brand Name:
-
HENGBIAO
-
Model Number:
-
G
-
Place of Origin:
-
Hebei, China
-
Outlet Size:
-
25-200mm
-
Power:
-
220V/380V/400v-480v
-
Usage:
-
Chemical Industry
-
Material:
-
Stainless Steel
-
Keywords:
-
Screw pump
-
Certification:
-
ISO9001
-
Fuel:
-
AC Electric Induction Motor
-
Standard or Nonstandard:
-
International Standard
-
Max Tempeature:
-
150 Celsius
-
Sealing:
-
Mechanical Seal
-
Advantage:
-
Flow Stability,Small Pulse Fluctuation
-
MOQ:
-
1 Set
Product Description

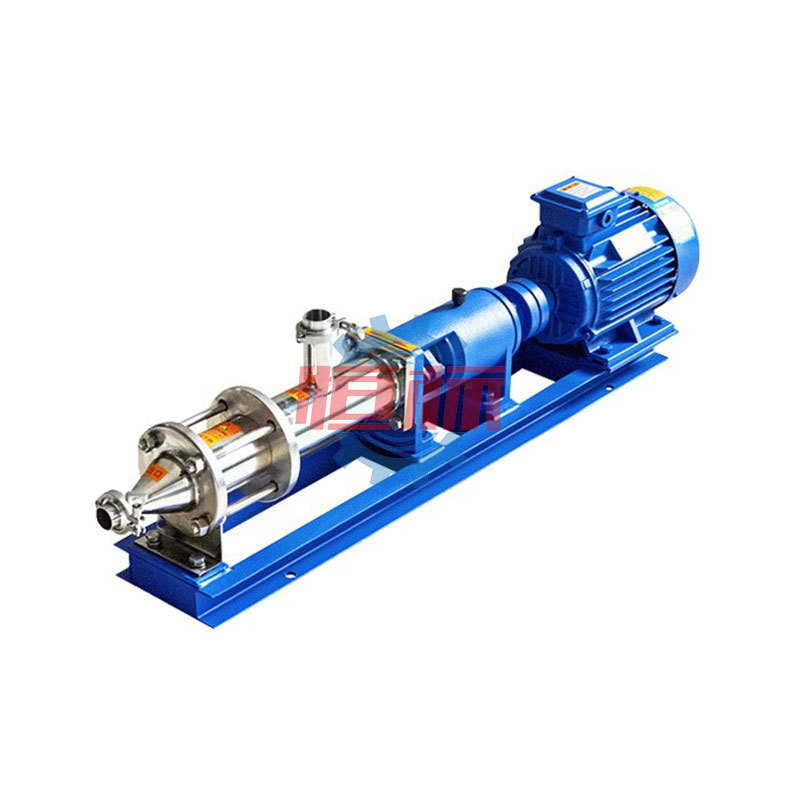

G Series Screw Pump
The G series single-screw pump main working parts are eccentric screw (rotor) and fixed bushing (stator). Due to the special geometry of the two components, a separate sealed cavity is formed, the medium is uniformly flowed from the axial direction, the internal flow velocity is low, the volume remains unchanged, and the pressure is stable, so that eddy current and agitation are not generated. The output pressure of each pump is 0.6MPa, the head is 60m (clean water), and it is suitable for conveying medium
temperature below 80 °C (special requirements up to 150 °C).
The G series single-screw pump main working parts are eccentric screw (rotor) and fixed bushing (stator). Due to the special geometry of the two components, a separate sealed cavity is formed, the medium is uniformly flowed from the axial direction, the internal flow velocity is low, the volume remains unchanged, and the pressure is stable, so that eddy current and agitation are not generated. The output pressure of each pump is 0.6MPa, the head is 60m (clean water), and it is suitable for conveying medium
temperature below 80 °C (special requirements up to 150 °C).
Specification
|
item
|
value
|
|
Warranty
|
1 year
|
|
Customized support
|
OEM, ODM
|
|
Brand Name
|
HENGBIAO
|
|
Model Number
|
G
|
|
Place of Origin
|
China
|
|
|
Hebei
|
|
Application
|
Food and Beverage Industry
|
|
Power Source
|
Electric
|
|
Pressure
|
Low Pressure
|
|
Structure
|
SCREW PUMP
|
|
Outlet Size
|
25-200mm
|
|
Voltage
|
0.75-37 kW
|
|
Power
|
220V/380V/400v-480v
|
|
Usage
|
Chemical Industry
|
|
Material
|
Stainless Steel
|
|
Keywords
|
Screw pump
|
|
Certification
|
ISO9001
|
|
Fuel
|
AC Electric Induction Motor
|
|
Standard or Nonstandard
|
International Standard
|
|
Max Tempeature
|
150 Celsius
|
|
Sealing
|
Mechanical Seal
|
|
Advantage
|
Flow Stability,Small Pulse Fluctuation
|
|
MOQ
|
1 Set
|
Details Images
Features:
1.High solid content(diameter of the biggest particle is 50mm)or no solid content
2.Medium with all viscosities(1mPas-3, 000, 000mPas)
3.Medium that is easy to be generated and swelled
4.Shearing sensitive medium
5.Medium with erosion
6.Medium with/without self lubrication
7.Erosive medium(PH=0-14)
8.Adhesive medium
9.Toxicity hazard medium
2.Medium with all viscosities(1mPas-3, 000, 000mPas)
3.Medium that is easy to be generated and swelled
4.Shearing sensitive medium
5.Medium with erosion
6.Medium with/without self lubrication
7.Erosive medium(PH=0-14)
8.Adhesive medium
9.Toxicity hazard medium
Product Paramenters
|
Model
|
Q
m3/h
|
Pressure
(Bar)
|
Max Rev
(r/min)
|
Motor Power
(kw)
|
NPSHr
(m)
|
Inlet Size
(mm)
|
Outlet Size
(mm)
|
Max Particles Size
(mm)
|
Max Fiber Size
(mm)
|
|
G20-1
|
0.8
|
6
|
960
|
0.75
|
4
|
25
|
25
|
1.5
|
25
|
|
G20-2
|
|
12
|
|
1.5
|
|
|
|
|
|
|
G25-1
|
2
|
6
|
960
|
1.5
|
|
40
|
32
|
2
|
30
|
|
G25-2
|
|
12
|
|
2.2
|
|
|
|
|
|
|
G30-1
|
5
|
6
|
960
|
2.2
|
|
50
|
40
|
2.5
|
35
|
|
G30-2
|
|
12
|
|
3
|
|
|
|
|
|
|
G35-1
|
8
|
6
|
960
|
3
|
|
65
|
50
|
3
|
40
|
|
G35-2
|
|
12
|
|
4
|
|
|
|
|
|
|
G40-1
|
12
|
6
|
960
|
4
|
|
80
|
65
|
3.8
|
45
|
|
G40-2
|
|
12
|
|
5.5
|
|
|
|
|
|
|
G50-1
|
14
|
6
|
720
|
5.5
|
4.5
|
100
|
80
|
5
|
50
|
|
G50-2
|
|
12
|
|
7.5
|
|
|
|
|
|
|
G60-1
|
22
|
6
|
720
|
11
|
5
|
125
|
100
|
6
|
60
|
|
G60-2
|
|
12
|
|
15
|
|
|
|
|
|
|
G70-1
|
38
|
6
|
720
|
11
|
|
150
|
|
8
|
70
|
|
G70-2
|
|
12
|
|
18.5
|
|
|
|
|
|
|
G85-1
|
56
|
6
|
630
|
15
|
|
150
|
|
10
|
80
|
|
G85-2
|
|
12
|
|
30
|
|
|
|
|
|
|
G105-1
|
100
|
6
|
500
|
30
|
|
200
|
|
15
|
110
|
|
G105-2
|
|
12
|
|
35
|
|
|
|
|
|
|
G135-1
|
150
|
6
|
400
|
45
|
|
250
|
250
|
20
|
150
|
|
G135-2
|
|
12
|
|
90
|
|
|
|
|
|
Application
Application Scope
1. Environmental protection: Industrial sewage, domestic sewage, and sludge turbid water containing solid particles and short fibers are especially used in oil-water separator plate and frame filter press equipment.
2. Shipbuilding industry: round bottom cleaning, oil water, oil residue, oil sewage and other ring. transportation.
3. Petroleum industry: transporting crude oil, a mixture of crude oil and water, a mixture of coal gas and water, pouring polymers into the formation, and the like.
4. Medicine, daily: a variety of thick paste, emulsion, various ointment cosmetics.
5. Food canning industry: all kinds of viscous starch, distiller's grains, grain slag, various sauces, pulp, solid slurry.
6. Construction industry: spraying of cement mortar, lime slurry, paint and paste.
7. Mining industry: solid particles, groundwater, and slurry water in mines.
8. Chemical industry: various suspensions, greases, various colloidal pastes, various adhesives.
9. Printing, paper making: high viscosity ink, wallpaper PVC polymer paste and various concentrations of pulp, short fiber slurry.
10. Industrial boilers, power plants: coal water slurry transportation.
2. Shipbuilding industry: round bottom cleaning, oil water, oil residue, oil sewage and other ring. transportation.
3. Petroleum industry: transporting crude oil, a mixture of crude oil and water, a mixture of coal gas and water, pouring polymers into the formation, and the like.
4. Medicine, daily: a variety of thick paste, emulsion, various ointment cosmetics.
5. Food canning industry: all kinds of viscous starch, distiller's grains, grain slag, various sauces, pulp, solid slurry.
6. Construction industry: spraying of cement mortar, lime slurry, paint and paste.
7. Mining industry: solid particles, groundwater, and slurry water in mines.
8. Chemical industry: various suspensions, greases, various colloidal pastes, various adhesives.
9. Printing, paper making: high viscosity ink, wallpaper PVC polymer paste and various concentrations of pulp, short fiber slurry.
10. Industrial boilers, power plants: coal water slurry transportation.
