Quick Details
-
Brand Name:
-
AC
-
Model Number:
-
ARC
-
Colour:
-
White
-
Dimension:
-
16-32 mm
-
Length:
-
2.92m
-
Thickness:
-
light, medium, heavy or it can be customized on your request
-
Standard:
-
BS EN 50086-2-1
-
Application:
-
Electric Cable Wire
-
Product name:
-
RIGID CONDUIT
-
Size:
-
20mm/25mm/32mm/40mm/50mm
-
Certificated:
-
ISO9001:2008
-
Structure:
-
PVC Jacketed
Quick Details
-
Type:
-
Combustion-Proof
-
Material:
-
PVC
-
Place of Origin:
-
Dong Nai, Vietnam
-
Brand Name:
-
AC
-
Model Number:
-
ARC
-
Colour:
-
White
-
Dimension:
-
16-32 mm
-
Length:
-
2.92m
-
Thickness:
-
light, medium, heavy or it can be customized on your request
-
Standard:
-
BS EN 50086-2-1
-
Application:
-
Electric Cable Wire
-
Product name:
-
RIGID CONDUIT
-
Size:
-
20mm/25mm/32mm/40mm/50mm
-
Certificated:
-
ISO9001:2008
-
Structure:
-
PVC Jacketed
Application :
For tubing of electric wire surface- mountedly, through concrete structures or underground. In places exposed to high compression, needed to be able to resist fire, impact, erosion and well insulating
Decription :

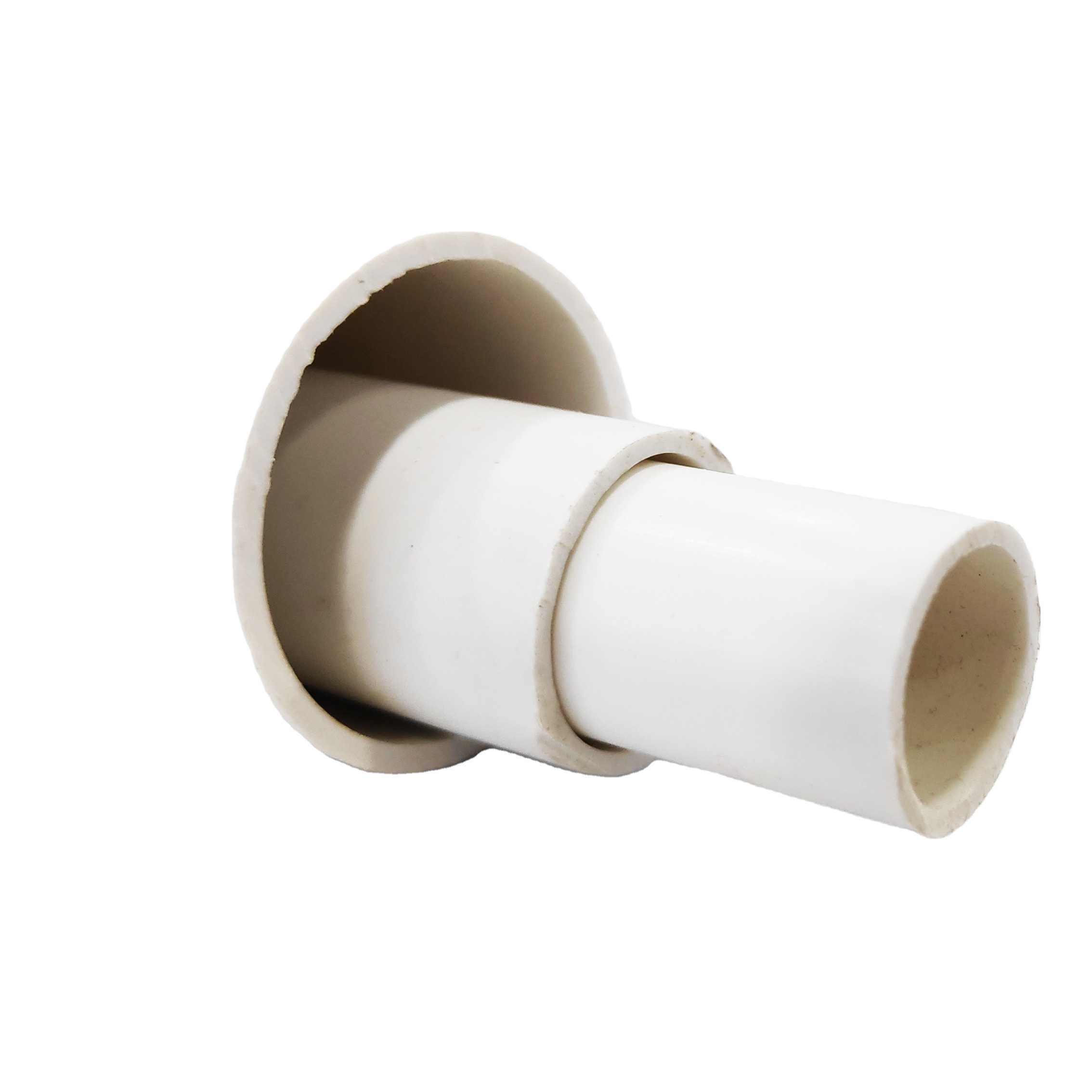

AC trademark rigid conduit includes H series ( Heavy duty) and M series ( Medium duty) made of high - class PVC and some chemical subtances confirming to the BS EN 50086-2-1 standard with advantages:
+ Resistance to high compression : not broken when fit in the wall, in the concrete floor and underground.
+ Resistance to impact : pliability, good streng and stretch, easy to bend and install...
+ Resistance to fire : un- flammable when directly burnt; incase of fire, the flame goes out itselt in less than 30 seconds, unable to spread out to the surrouding.
+ Resistance to erosion : non electrically eroded, durable to high humidity, non- hydrophilic, durable to acid and most of other normal chemical subtances.
+ Resistance to corrosion : some special chemicals in composition are able to afford to exterminate termites, moths and insects.
+ Good electrical insulating strength : endurable to high- voltage transformer...
+ Specifications:
H Series (Heavy Duty)
| Code | OD (mm) | T(mm) | L(mm) |
| GB16 | 16 | 1.5 | 2.92 |
| GB20 | 20 | 1.8 | 2.92 |
| GB25 | 25 | 1.9 | 2.92 |
| GB32 | 32 | 2.3 | 2.92 |
| GB40 | 40 | 2.5 | 2.92 |
| GB50 | 50 | 3.5 | 2.92 |
M Series ( Medium Duty)
| Code | OD (mm) | T(mm) | L(mm) |
| ARC 16/M | 16 | 1.25 | 2.92 |
| ARC 20/M | 20 | 1.4 | 2.92 |
| ARC25/M | 25 | 1.6 | 2.92 |
| ARC32/M | 32 | 1.9 | 2.92 |
Standard export packing, suitable for long distance transportation, protected against shock, moisture, and breakage.
We can ship goods in FCL as 20DC, 40DC, 40HQ
