Quick Details
-
Productivity:
-
Other
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
SINOMADA
-
Weight:
-
36350 kg
-
Dimension(L*W*H):
-
12500mmX2500mmX4000mm
-
Vertical reach:
-
43.3m
-
Horizontal reach:
-
38.3m
-
Reach depth:
-
25.5m
-
Unfolding reach:
-
13.9m
-
1st section-Length:
-
9760mm
-
1st section-Articulation:
-
89°
-
2nd section - Length:
-
7670mm
-
3rd section - Length:
-
7410mm
Quick Details
-
Power Type:
-
Diesel
-
Max. vertical conveying distance:
-
50M
-
Max. horizontal conveying distance:
-
80M
-
Productivity:
-
Other
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
SINOMADA
-
Weight:
-
36350 kg
-
Dimension(L*W*H):
-
12500mmX2500mmX4000mm
-
Vertical reach:
-
43.3m
-
Horizontal reach:
-
38.3m
-
Reach depth:
-
25.5m
-
Unfolding reach:
-
13.9m
-
1st section-Length:
-
9760mm
-
1st section-Articulation:
-
89°
-
2nd section - Length:
-
7670mm
-
3rd section - Length:
-
7410mm
Product Details
SPECIFICATION
Please let me know your specific needs so that we can provide better service.
If you are finding laying foundations difficult due to tricky to reach spaces, then a concrete boom pump vehicle could make all the difference. Why not take a look at the pump options available and take a chance on a more flexible system and operation for your building and construction needs?
If you are finding laying foundations difficult due to tricky to reach spaces, then a concrete boom pump vehicle could make all the difference. Why not take a look at the pump options available and take a chance on a more flexible system and operation for your building and construction needs?
|

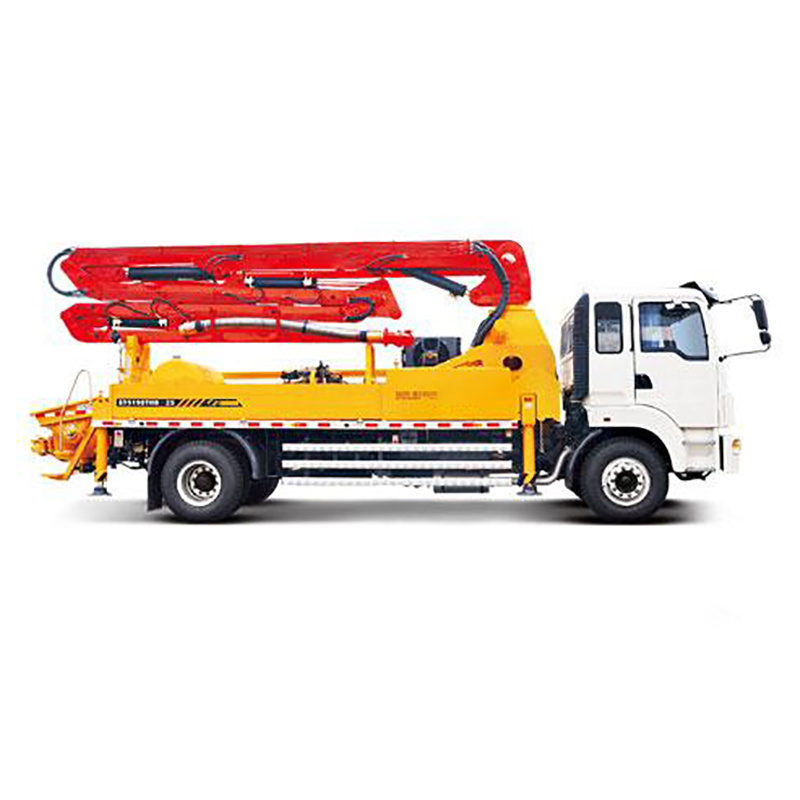

Truck-mounted Concrete Pump
|
|
|
|
|||
|
Vertical Reach
|
Output
|
Pressure
|
Models
|
|||
|
24-36m |
100 - 150m³/h |
6 - 6.6MPa |
SYG5210THB 25C-8(SZ-EU) / SYG5210THB 25C-8(SZ-EU) / SYM5180THBES 30C-8 / SYG5210THB 30V8(SZ-AUS) / SYG5180THB 300C-8(SZ-IN) /
SYG5181THB 30C-8(SZ-IDN) |
|||
|
37m |
48 - 160m³/h |
6 - 13MPa |
SYM5230THB 370C-10 / SYG5231THBCS 370C-10 / SYG5231THBCS 370C-10(R) / SYG5232THBES 370C-10(R) / SYG5260THB 370C-10 / SYG5261THBES
370C-10 / ... |
|||
|
38-48m |
120 - 200m³/h |
7 - 12MPa |
SYG5270THB 380C-10(SZ-AM) / SYG5280THB 38(SZ-AUS) / SYG5280THB 380C-10(SZ-IS) / SYG5260THB 390C-10 / SYG5310THBES 430C-10 /
SYG5370THB 430C-10(SZ-IS) /... |
|||
|
49-55m |
120 - 200m³/h |
7 - 12MPa |
SYG5340THB 490C-10 / SYG5341THB 490C-10 / SYG5341THB 490C-10(R) / SYG5342THB 490C-10(R) / SYG5350THBCB 490C-10 / SYG5370THBES
490C-10 / SYG5371THBCB 490C-10 / ... |
|||
|
56-60m |
120 - 200m³/h |
7 - 12MPa |
SYG5441THBCB 560C-10 / SYG5443THBCS 560C-10 / SYG5443THBCS 560C-10(R) / SYG5445THBES 560C-10(R) / SYG5445THBES 560C-10 /
SYG5450THB 56(SZ-EU) / ... |
|||
|
over 60m |
120 - 200m³/h |
8.3 - 12MPa |
SYM5502THB 620C-10A / SYG5570THB 62(SZ-EU) / SYM5525THB 650C-10 / SYG5590THB 67(SZ-EU) / SYM5590THB 680C-10(SZ-AM)
|
|||
