Quick Details
-
Brand Name:
-
OEM
-
Model Number:
-
SW-206GM
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
4+2 fiber sc port ethernet switch
-
Interface:
-
4 rj45+2 Fiber sc
-
Fiber:
-
850nm/1310nm/1550nm optional
-
power:
-
12v 1a dc
-
Temp.:
-
-25-60℃
-
Fiber distance:
-
550m-25km
-
Size:
-
165mm*104mm*35mm
-
Housing case:
-
desktop/wall-mounted
-
OEM:
-
Support
-
Warranty:
-
1 year
Quick Details
-
Transmission Rate:
-
10/100Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
1.2Gbps
-
Brand Name:
-
OEM
-
Model Number:
-
SW-206GM
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
4+2 fiber sc port ethernet switch
-
Interface:
-
4 rj45+2 Fiber sc
-
Fiber:
-
850nm/1310nm/1550nm optional
-
power:
-
12v 1a dc
-
Temp.:
-
-25-60℃
-
Fiber distance:
-
550m-25km
-
Size:
-
165mm*104mm*35mm
-
Housing case:
-
desktop/wall-mounted
-
OEM:
-
Support
-
Warranty:
-
1 year

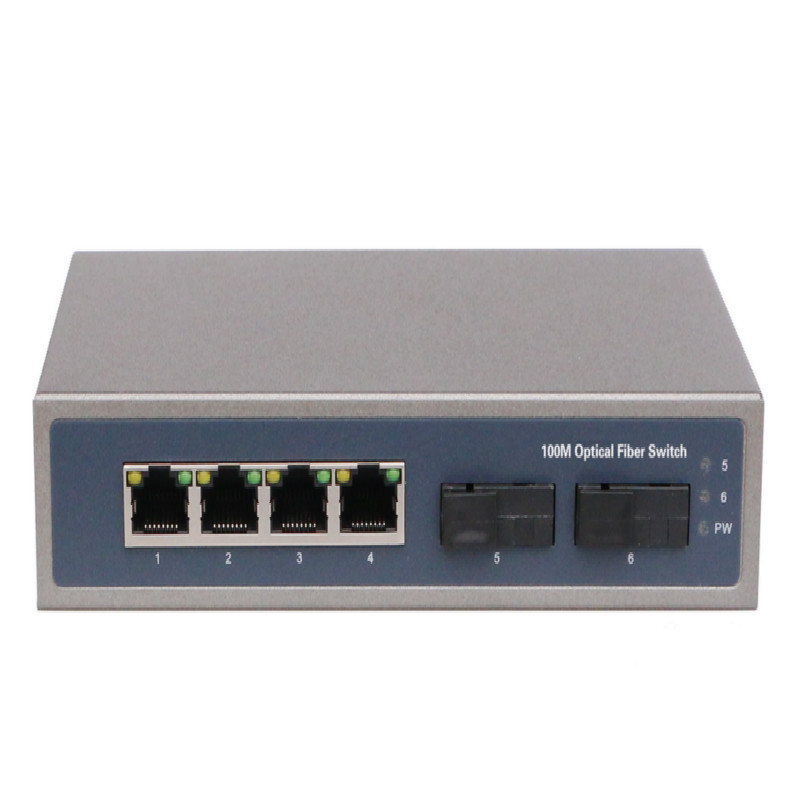

Factory 4+2 fiber sc port ethernet switch 12v
SW-206GM is a high performance 4+2 fiber sc port ethernet switch 12v.
It provides 4 10/100mbps rj45 ports.Power supply 12v1a dc.Voltage range DC 5-15v.
In addition,there are 2 fiber optical sc,extending network connections.850nm/1310nm/1550nm fiber sc module optional.
It's widely used to extend network deploy in many industrial fields.
Features
1,4FE RJ45+2FE fiber optic sc.
2,Comply to IEEE 802.3, IEEE 802.3u, IEEE 802.3x.
3,Flow Control: Full-duplex: IEEE 802.3x, Half-duplex: back pressure.
4,Auto MDI/MDIX.
5,Upstream port lightning protection.
6,Store-and-forward.
7,All ports support wire speed store-and-forward, jumbo frame transmission.
8,Unmanaged,no need configuration
9,LED indicators monitor working status,supporting simple trouble shooting
10,Desktop/wall-mounted metal housing case
11,12v 1a power supply,DC input voltage range 5-15v.
Shipped by EMS/FedEx/DHL/UPS/TNT/Air/Sea etc.
40pcs/ctn,kraft paper box or OEM package.
How about the quality?
All our products manufactured with new brand materials,best design with strict old-aging testing and qc tested.
Do you provide OEM service?
Yes, we mainly provide OEM/ODM manufacturing.
Do you provide only PCBA?
Sure,PCBA is welcome here.
Is there MOQ limited?
Welcome to place sample order to check the quality before bulk orders.
Any qty welcome,but as you know,different qty with different price.
Large qty means low cost.
How long warranty period?
All products offered by CCTECH provides 1 year warranty.
Shenzhen CC Tech Co.,Ltd.is located in Shenzhen China.devoted to providing high quality network equipment network equippment hardwares like Ethernet switch/POE switch/media converter/Fiber switchSplitter/Injector,WIFI access point/router/bridge/CPE, etc.
•All products have been double checked and packed in good condition before dispatching.
•All products have 1 year warranty.
•Provide OEM/ODM service
