Quick Details
-
Type:
-
Air Source Heat Pump
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
M&T
-
Model Number:
-
MHWT-8
-
Material:
-
Stainless-steel SUS304, 316L,duplex
-
Source:
-
Air Source Heat Pump
-
Heating source:
-
solar/heat pump/ electric heater/gas boiler
-
Volume:
-
50-1000L
-
Coil material:
-
copper/stainless steel/ aluminum
-
Storage:
-
water
-
Pressure:
-
Pressurized
-
Heating System:
-
Thermosyphon (Passive)
-
Certification:
-
ce,WaterMark
Quick Details
-
Warranty:
-
1 Year
-
Application:
-
Hotel, Household
-
Power Source:
-
Electric, Solar
-
Type:
-
Air Source Heat Pump
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
M&T
-
Model Number:
-
MHWT-8
-
Material:
-
Stainless-steel SUS304, 316L,duplex
-
Source:
-
Air Source Heat Pump
-
Heating source:
-
solar/heat pump/ electric heater/gas boiler
-
Volume:
-
50-1000L
-
Coil material:
-
copper/stainless steel/ aluminum
-
Storage:
-
water
-
Pressure:
-
Pressurized
-
Heating System:
-
Thermosyphon (Passive)
-
Certification:
-
ce,WaterMark

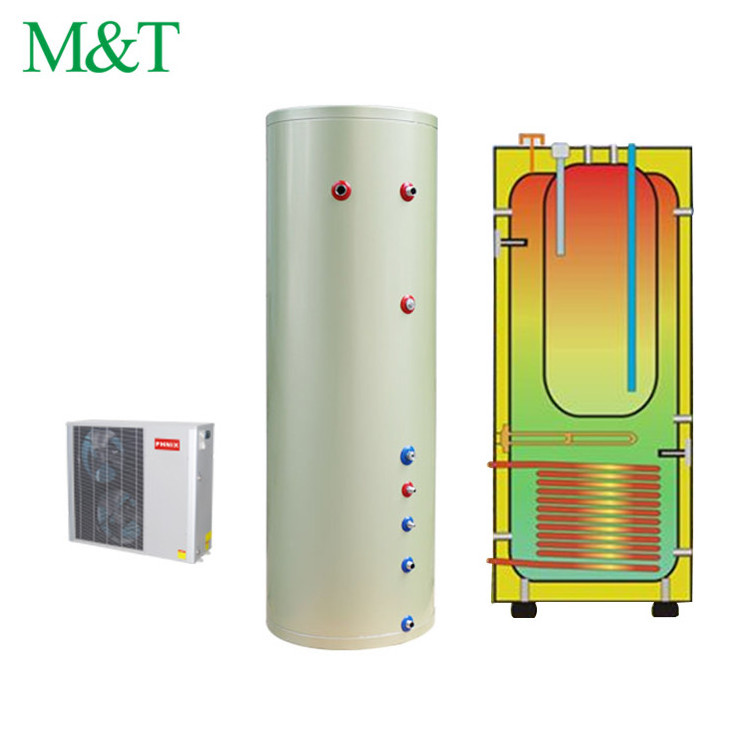

HInverter heat pump 12kw power world hot water unit water to water system buffer tank 200l
Advantage:
The largest leading manufacturer of stainless steel hot water tank and the No.:1 duplex stainless steel water tank and butt welding technology producer in China with more than 12 years experiences,we are good at OEM and ODM.
• combined with solar heation system, heat pump, electrical heater and other heating source
• Optional outer copper coil or inner stainless steel coil;
• Optional coils to fast the efficiency of heat transferring;
• Optional water connections according to customers requests;
• High dencity polyurethane foam reduces heat loss and energy costs for maximum efficiency
| Capacity | L | 100 | 200 | 300 | 400 | 500 | 600 | 800 | 1000 |
| Inner tank diameter | mm | Φ370 | Φ470 | Φ500 | Φ550 | Φ600 | Φ650 | Φ700 | Φ800 |
| Out shell diameter | mm | Φ470 | Φ560 | Φ600 | Φ650 | Φ700 | Φ760 | Φ800 | Φ900 |
| Inner tank material | mm | SUS304 / SUS316L / Duplex2205 / Duplex2304 | |||||||
| Out shell material | mm | galvanized steel with painting / stainless steel / PU | |||||||
| Out shell color | white / silver-grey / blue /red / golden / stainless steel | ||||||||
| Max.working pressure | bar | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
| Max.testing pressure | bar | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
| Max.running temperature | ℃ | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 |
| Heating loss | W/K | 0.65 | 0.72 | 0.89 | 1.02 | 1.15 | 1.26 | —— | —— |
| Standing loss | W | 30 | 33 | 40 | 46 | 52 | 57 | —— | —— |
| ERP Class | A | A | A | A | A | A | —— | —— | |
| Electrical heater | kw | 1.5 | 1.5 | 1.5 | 1.5 | 3 | 3 | 3 | 3 |
| Mg.Anode | mm | Φ22*300 | |||||||
| Water connection | G / BSP / NPT 3/4" | G / BSP / NPT 1" | |||||||
| Packing size | mm |
L:540
W:540 H:1170 |
L:630
W:630 H:1440 |
L:670
W:670 H:1630 |
L:720
W:720 H:1920 |
L:780
W:780 H:1930 |
L:850
W:850 H:1940 |
Φ900*2200 | Φ980*2420 |
