Quick Details
-
Model Number:
-
GMZ-3800MM
-
Power:
-
22kw
-
Dimension(L*W*H):
-
L4970W1600H2425(mm)
-
Weight:
-
9350kgs, 9050kgs/9350kgs
-
Warranty:
-
One Year
-
Certification:
-
CE Certificate
-
Color:
-
any color
-
Main motor:
-
15KW; 3 phase AC power 50Hz/
-
Working width:
-
3800mm
-
Trip of needle:
-
60 mm /40mm/40mm
-
Dimension of M/C:
-
L4970W1600H2425(mm)
Quick Details
-
Voltage:
-
380V
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
RD
-
Model Number:
-
GMZ-3800MM
-
Power:
-
22kw
-
Dimension(L*W*H):
-
L4970W1600H2425(mm)
-
Weight:
-
9350kgs, 9050kgs/9350kgs
-
Warranty:
-
One Year
-
Certification:
-
CE Certificate
-
Color:
-
any color
-
Main motor:
-
15KW; 3 phase AC power 50Hz/
-
Working width:
-
3800mm
-
Trip of needle:
-
60 mm /40mm/40mm
-
Dimension of M/C:
-
L4970W1600H2425(mm)

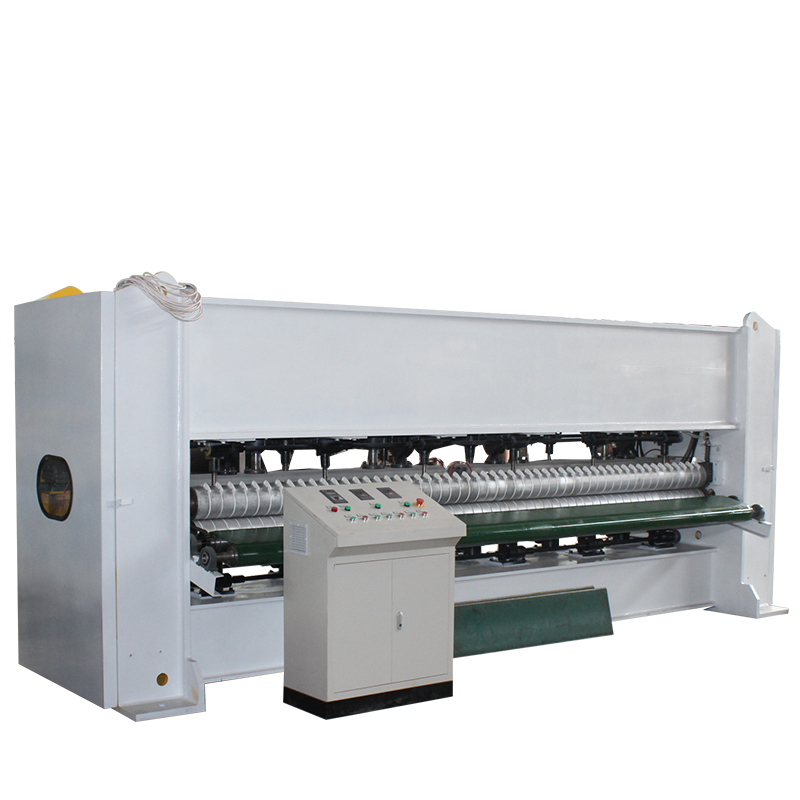

Middle speed Needle Punching Machine
Needle punching machine can convent the fleeciness textile fiber into Acupuncture cotton,high-density and high-spring such as Thermal insulation blanket,Greenhouses quilt raw materials,Shoes materials,Mattresses,Sofa cushion,Car mats,Chemical products and Non-woven fabrics for engineering etc,through Carding process,Spreading process,Acupuncture process,Strengthening process.
The needle punching machine unit consists of Opening machine,Carding machine with chute feeder,Needle machine with winder and cutter.The necessary parts include Fan motor,Main motors,Speed reducers and Electric control cabinet.We can match machinery for you according to customer's requirement.
Product Specification
|
NO |
ITEM |
DESCRIPTION |
|
1 |
Model |
GMZ- 3 8 00 MM |
|
2 |
Dimension of M/C |
L 4970 W 1600 H 2425 (mm) |
|
3 |
Weight |
9050kgs/9350kgs |
|
4 |
Total power |
22 kw |
|
5 |
Main motor |
15 KW; 3 phase AC power 50Hz / |
|
6 |
Needle density |
D epend on the customer ’ s requirements |
|
7 |
The average output |
360kg/hour( W orking at width 2500mm&300g/m2 under running normal) |
|
8 |
Protection |
Main motor overload protection |
|
9 |
The control mode |
Constant power & Inverter control |
|
10 |
Working width |
38 00mm |
|
11 |
Needle plate |
H igh-strength aluminum alloy |
|
1 2 |
Bearing |
KOYO/Or according to the customer's requirements |
|
1 3 |
Type of holes |
Diameter1.83mm/ An inverted cone |
|
18 |
T rip of needle |
60 mm /40mm/40mm |
|
19 |
Transfer roller |
D iameter:168mm/ Chromium plating process /high quality 50# steel |
|
20 |
N eedle plate |
High strength alloys and shock shape / totally 18 mm thickness |
T he needle punching machine unit consists of Opening machine,Carding machine with chute feeder,Needle machine with winder and cutter.The necessary parts include Fan motor,Main motors,Speed reducers and Electric control cabinet.We can match machinery for you according to customer's requirement.
Product Features
1.Adopt CNC gantry milling machine with good stability, high precision and high finish.
2.Automatic oil injection system,good for machine lubrication and maintenance.
3. Cagnesium alloy/PU combined needle board locked firmly by lock-bolt or air tube; multi random computer needling methods for needle board.
4.Chrome plated delivery rollers with carved or patterned surface.
