Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LLT aviation plug
-
Model Number:
-
LLT-M14-05007F1051
-
Product name:
-

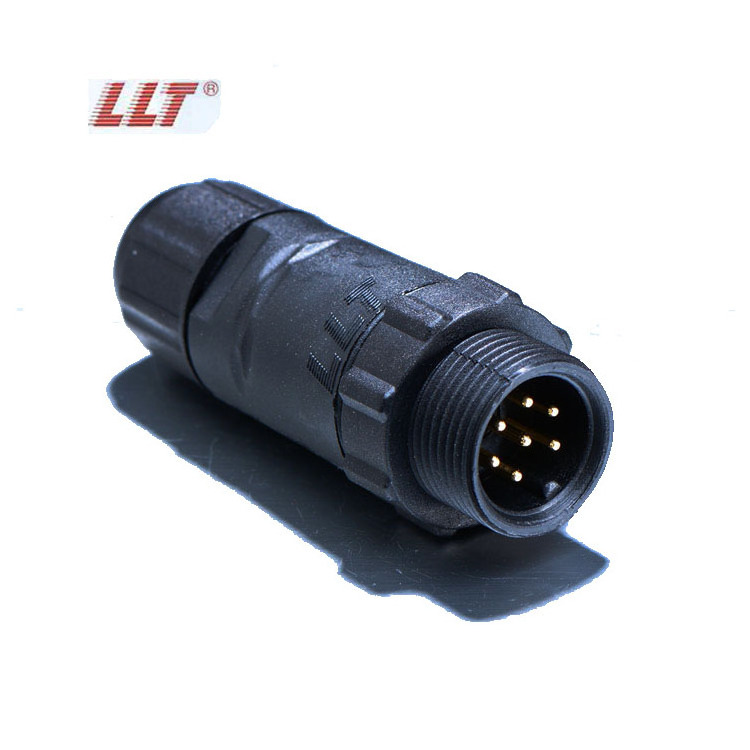

7 pin connector waterproof connector
-
Material (External)::
-
Eco-friendly NYLON
-
Usage:
-
data transfer
-
Contactor Material:
-
Phosphor Copper with Gold Plated
-
Protector Level:
-
IP67 IP68 waterproof
-
Certifications:
-
CE ROHS SAA TUV
-
Cable Connector Type:
-
circular
-
Cable OD.:
-
Max. 7.5mm
-
Rated Voltage:
-
250V 15A
Quick Details
-
Type:
-
Assembly waterproof connnector
-
Application:
-
Outdoor LED light power and automotive
-
Gender:
-
Male female
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LLT aviation plug
-
Model Number:
-
LLT-M14-05007F1051
-
Product name:
-
7 pin connector waterproof connector
-
Material (External)::
-
Eco-friendly NYLON
-
Usage:
-
data transfer
-
Contactor Material:
-
Phosphor Copper with Gold Plated
-
Protector Level:
-
IP67 IP68 waterproof
-
Certifications:
-
CE ROHS SAA TUV
-
Cable Connector Type:
-
circular
-
Cable OD.:
-
Max. 7.5mm
-
Rated Voltage:
-
250V 15A
Related products
LLT M14 2 3 4 5 6 7 8 9 10 pin screw IP68 waterproof Male Female Docking Connectors Plug and Socket
M14 Series: waterproof connector
| 1 | Model No. | LLT-M14 7 pin connector waterproof connector | |
| 2 | Material | Connector Body | Nylon(PA66)+GF UL94V-0 1/16'' |
| 3 | Contact | Brass with Gold Plated | |
| 4 | Sealing | Silica Gel | |
| 5 | Property | Current Rating | 15AMP |
| 6 | Voltage Rating | 250V | |
| 7 | Contact Resistance | <10mΩ | |
| 8 | Insulation Resistance | 1000MΩ at DC 500V | |
| 9 | Breakdown Voltage | 1.5KV/1minute | |
| 10 | Temperature Rating | -45 °C~ +105 °C | |
| 11 | Durability(Plug/Unplug) | 3000 times | |
| 12 | Waterproof Rating | IP67 IP68 waterproof | |
| 13 | Cable Max. Diameter | 7.5mm | |
| 14 | Wire size | <=1.5mm2 | |
| 15 | Pins Range | 2, 3, 4, 5, 6, 7, 8, 9, 10 | |
| 16 | Certificate | CCC; CE; RoHS | |
Advantages
Buyer Feedback
Certifications
We have a full set of certificate such as CE ROHS UL SAA TUV ISO and so on.
