Quick Details
-
Application:
-
Wall Materials
-
Standing Temperature:
-
200
-
Alkali Content:
-
Medium
-
Certification:
-
ISO9001:2008/CE
-
Mesh Size:
-
4x4mm,5x5mm,6x6mm
-
Width:
-
2000mm
-
Yarn Type:
-
E-Glass
-
Name:
-
fiberglass mesh machine
-
Voltage:
-
380V50HZ/220V60HZ/customized
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
Malaysia, Kenya, UAE, Algeria, South Africa, Uzbekistan, Viet Nam, Philippines, Peru, Indonesia, India, Mexico, Russia, Thailand
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
WANZHONG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
-
Application:
-
Wall Materials
-
Standing Temperature:
-
200
-
Alkali Content:
-
Medium
-
Certification:
-
ISO9001:2008/CE
-
Mesh Size:
-
4x4mm,5x5mm,6x6mm
-
Width:
-
2000mm
-
Yarn Type:
-
E-Glass
-
Name:
-
fiberglass mesh machine
-
Voltage:
-
380V50HZ/220V60HZ/customized
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
Malaysia, Kenya, UAE, Algeria, South Africa, Uzbekistan, Viet Nam, Philippines, Peru, Indonesia, India, Mexico, Russia, Thailand
factory directly manufacturing and automatic and operating easily fiberglass mesh production machine
fiberglass mesh machine
It is composed of three units :
a) Warping Machine
b) Weaving Machine
c) Coating Equipment
It is mainly used to weave the fiberglass mesh. The fiberglass mesh can be used on wall thermal insulating material.
1. Detailed Paramters
|
Mesh Size |
4x4mm, 5x5mm,6x6mm |
|
Width : |
2000mm ( 2 rollers , every 1000mm ) |
|
Length |
50m,100m, and any length required |
|
Speed : |
90-140 times/min |
|
Production Capacity |
800-1200m/h |
|
Motor power |
1.5KW |
|
Overall dimension |
4.2x1.8x1.4m |
|
Weight |
1.8 tons |
Function Features
a) This machine model is our latest development. It is designed at 2000mm width , as so, it can produce two rollers , every at 1m. And the production effeciency will be greately improved . Another the 2000mm width mesh will be c ut automaticly along with the weaving process.
b)) Another after this new improvement, the cross fiberglass feeding will be more faster.
c) For some key and important part ,like as sword scalp plate and needle row , we will exactly make sure every manufacturing procedure to required quality.

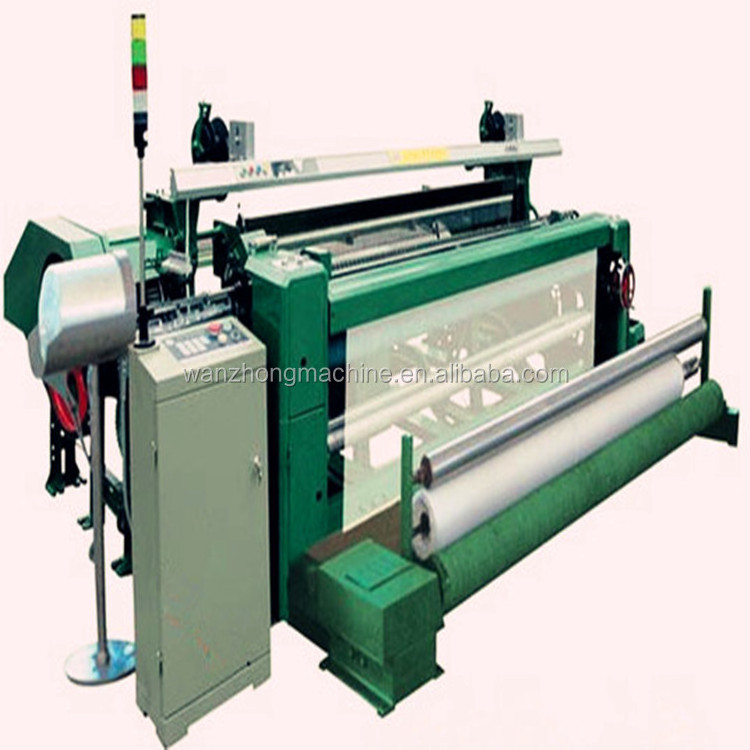

Reference Picture of Automatic Fiberglass Mesh Machine
