- Product Details
- {{item.text}}
Quick Details
-
Raw material:
-
forged steel
-
Usage:
-
For door and window profile,construction and industrial profile
-
The maximum width of aluminum profile:
-
150mm
-
Type:
-
1000MT(5 inch)
-
Heating mode:
-
by natural gas,coal,diesel.etc
-
Weight:
-
43tons
-
Voltage:
-
220V/380V/440V/415V
-
Installation period:
-
around 1 month
-
Engineers:
-
1 or 2 engineers for the complete line
-
After-sales Service Provided:
-
Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
None
Quick Details
-
Place of Origin:
-
WUXI
-
Brand Name:
-
HX
-
Product name:
-

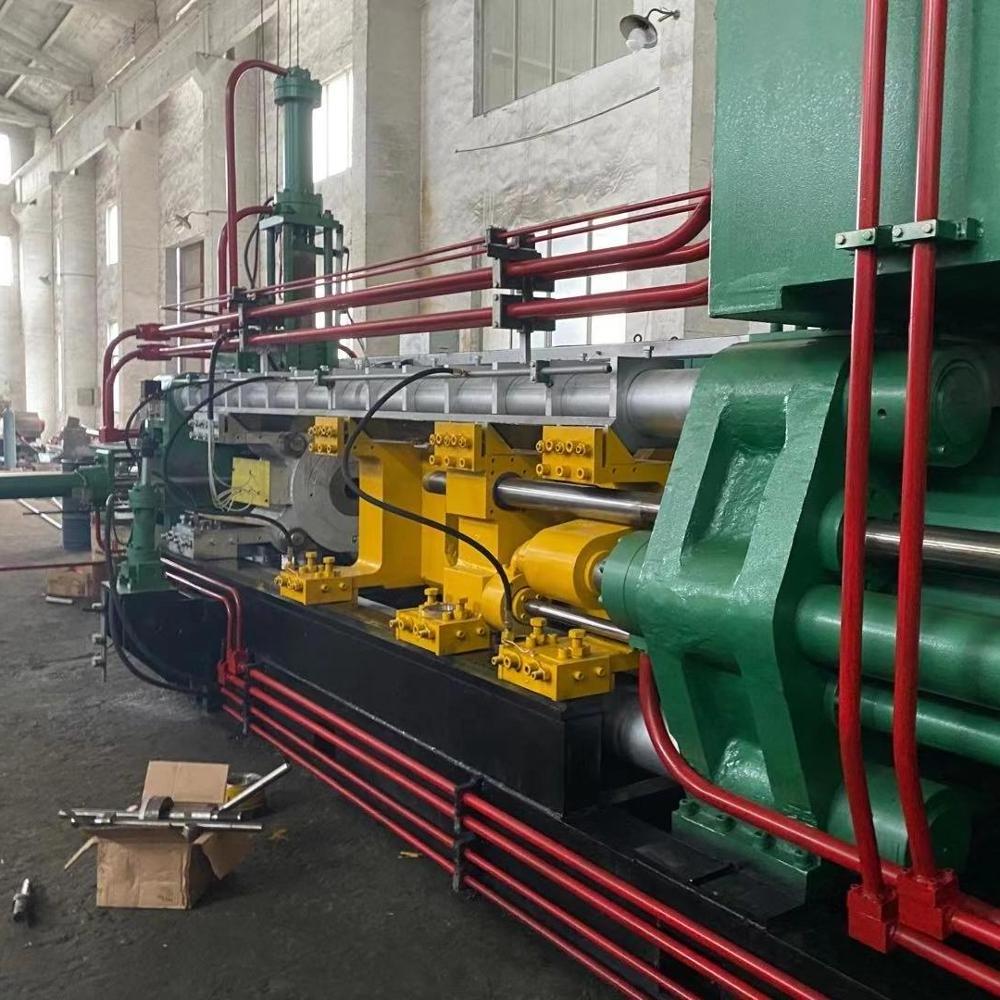

Turnkey complete aluminum extrusion press machine
-
Raw material:
-
forged steel
-
Usage:
-
For door and window profile,construction and industrial profile
-
The maximum width of aluminum profile:
-
150mm
-
Type:
-
1000MT(5 inch)
-
Heating mode:
-
by natural gas,coal,diesel.etc
-
Weight:
-
43tons
-
Voltage:
-
220V/380V/440V/415V
-
Installation period:
-
around 1 month
-
Engineers:
-
1 or 2 engineers for the complete line
-
After-sales Service Provided:
-
Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
None
The technical data of 1000MT Aluminum Extrusion Press
|
NO. |
Item |
Specification |
Remarks |
|
1 |
Working Pressure |
21Mpa |
|
|
2 |
Extrusion Force |
Main cylinder force: 942T side cylinder force:84T |
|
|
3 |
Backward Force |
32T |
|
|
4 |
Locking Force |
63T |
|
|
5 |
Shearing Force |
42T |
|
|
6 |
Speed of Extruder |
0.3-13mm/s |
|
|
7 |
Fast Forward Speed |
389mm/s |
|
|
8 |
Fast Backward Speed |
353 mm/s |
|
|
9 |
Locking Speed |
272mm/s |
|
|
10 |
Open Speed |
165mm/s |
|
|
11 |
Speed of Shearing Down |
331mm/s |
|
|
12 |
Speed of Shearing Up |
544mm/s |
|
|
13 |
Size of Container |
Diameter: Φ125-Φ155mm |
|
|
L:600mm |
|
||
|
14 |
Billet Size |
Diameter: Φ120-Φ150mm |
|
|
L:500mm |
|
||
|
15 |
Total Power Of Motors |
55KW*2 sets |
|
|
16 |
Power of Container Heating |
1.3KW*15=19.5KW |
|
|
17 |
Operating Mode |
Manual or Auto Single Stroke |
|
|
18 |
Four locks on the front |
|
(Customizable) |
|
19 |
Dimension of Press |
7.8m*3.9m*3.7m |
|
