- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
380V 50Hz
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Xinyun
-
Dimension(L*W*H):
-
4432x1115x1750
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
-
Name:
-
Full automatic single roll toilet tissue paper wrapping machine
-
Machine for:
-
Packing Single Toilet Paper Roll
-
High speed:
-
60-120 rolls /min
-
Color of machine:
-
White
-
Packing specification:
-
100-250x90-130x90-130 mm
-
Best selling:
-
Low price and easy operation
-
machine name:
-
Full automatic single roll toilet tissue paper peaking machine
-
Machine Type:
-
Pillow packing machine
-
Raw meterial:
-
Plastic film
-
Certification:
-
CE Certification
Quick Details
-
Function:
-
FILLING, Sealing, Wrapping
-
Packaging Type:
-
Bags
-
Packaging Material:
-
Plastic
-
Voltage:
-
380V 50Hz
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Xinyun
-
Dimension(L*W*H):
-
4432x1115x1750
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
-
Name:
-
Full automatic single roll toilet tissue paper wrapping machine
-
Machine for:
-
Packing Single Toilet Paper Roll
-
High speed:
-
60-120 rolls /min
-
Color of machine:
-
White
-
Packing specification:
-
100-250x90-130x90-130 mm
-
Best selling:
-
Low price and easy operation
-
machine name:
-
Full automatic single roll toilet tissue paper peaking machine
-
Machine Type:
-
Pillow packing machine
-
Raw meterial:
-
Plastic film
-
Certification:
-
CE Certification
Product Description

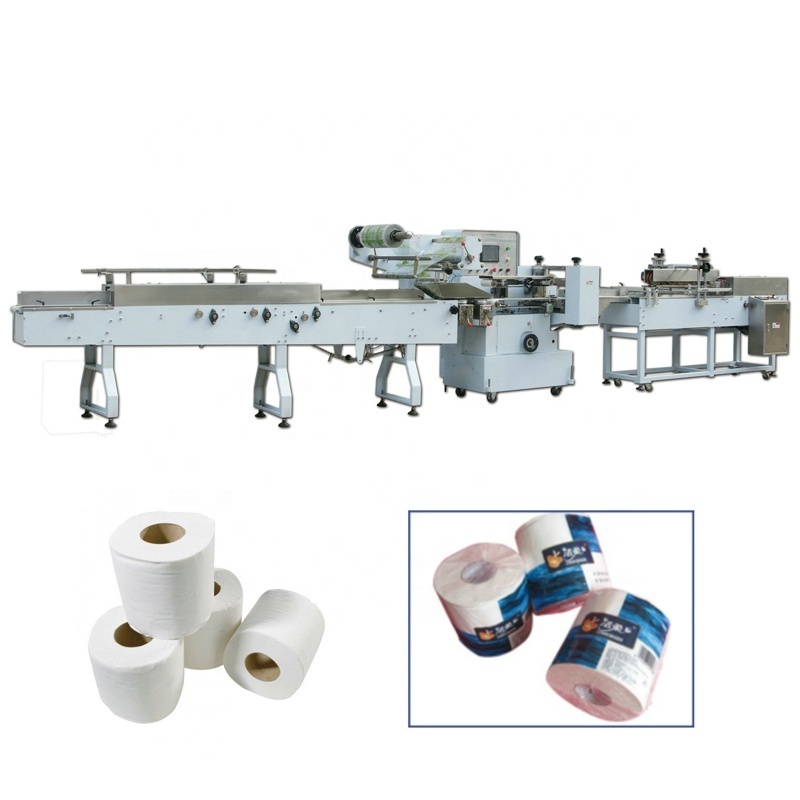

Full automatic single roll toilet tissue paper wrapping machine XY-503IZ
Product Application
Adopt MCU for master control circuit, display on LCD screen, control by the inverter, excellent person-computer interface, easy to pack. And the length of product adopt double frequency converter, stepless speed change, various range adjustment,, automatic clear up the packing product, and make it enter packaging machine. This machine can match with front-end production very well. The length of finished bag will be accurate tracked by high sensitivity sensor. It will not need to adjust by manual as soon as set. Individual control temperature for each sealing. It suitable for many kind of wrapping material.
|
Model
|
XY-503IZ -A
|
XY-503IZ-B
|
|
Packing speed (pcs/min)
|
50-130
|
50-130
|
|
Packing specification(mm)
|
150-250x140x120
|
150-250x140x120
|
|
Overall dimension(mm)
|
4432x1115x1750
|
4432x1115x1750
|
|
Weight (kg)
|
950
|
980
|
|
Air compressor (Mpa)
|
0.5
|
0.5
|
|
Max.width of package film (mm)
|
600
|
450
|
|
Total power
|
3.3 (380v 50Hz)
|
3.3 (380v 50Hz)
|
Related Products
XY-AI-398A Semi automataic multi rolls toilet paper packing machine
1.Speed: 5—8 bag/min
2.Power: 0.8KW 380V 50HZ
3.Pressure :0.4 --- 0.5MPA
4.Machine size: 5x1.2x1.2M
5.Weight: 400KG
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 60-90 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Packing & Delivery
Packing Details : Packing, standard export wooden case
Delivery Details : 30-90 days after order
Our Service
Why buy Machine from Fujian Xinyun Machinery Development Co.,Ltd ?
1. Good quality of machine with reasonable price.
2. Good service: Any question from customer will be reply within 24 hours
For all the machines we sell, we will offer two-years guarantee for free and all life maintenance.We deliver a DVD of Operation Video with machine,it will help customer to work the machine easy.After the machines arrive, the sellers shall send technician to install the production line(if need). And the buyer shall pay their round-trip air tickets from China factory to buyer’s factory, the charge of visa, food ,transportations and accommodation in buyer’s city.
