- Product Details
- {{item.text}}
Quick Details
-
Control System Brand:
-
RuiDa
-
Cutting Area:
-
1300mm*900mm
-
Cutting Thickness:
-
0-30mm
-
Control Software:
-
RuiDa
-
Place of Origin:
-
China
-
Brand Name:
-
Gweike
-
Weight (KG):
-
350 KG
-
Laser power:
-
80w/100w/130w/150w
-
Working Voltage:
-
220V/110V
-
Driving system:
-
Stepper
-
Operating humidity:
-
5-95%
-
Resetting positioning accuracy:
-
±0.05mm
-
Operating temperature:
-
0-45℃
-
Minimum shaping character:
-
English 1*1mm
-
Worktable:
-
motorized up down table
-
Certification:
-
ce, ISO, IAF
-
Showroom Location:
-
Canada, France, Germany, Brazil, Saudi Arabia, Mexico, Thailand
Quick Details
-
Laser Type:
-
CO2
-
Cutting Speed:
-
0-40000mm/min
-
Cooling Mode:
-
WATER COOLING
-
Control System Brand:
-
RuiDa
-
Cutting Area:
-
1300mm*900mm
-
Cutting Thickness:
-
0-30mm
-
Control Software:
-
RuiDa
-
Place of Origin:
-
China
-
Brand Name:
-
Gweike
-
Weight (KG):
-
350 KG
-
Laser power:
-
80w/100w/130w/150w
-
Working Voltage:
-
220V/110V
-
Driving system:
-
Stepper
-
Operating humidity:
-
5-95%
-
Resetting positioning accuracy:
-
±0.05mm
-
Operating temperature:
-
0-45℃
-
Minimum shaping character:
-
English 1*1mm
-
Worktable:
-
motorized up down table
-
Certification:
-
ce, ISO, IAF
-
Showroom Location:
-
Canada, France, Germany, Brazil, Saudi Arabia, Mexico, Thailand
Product Description

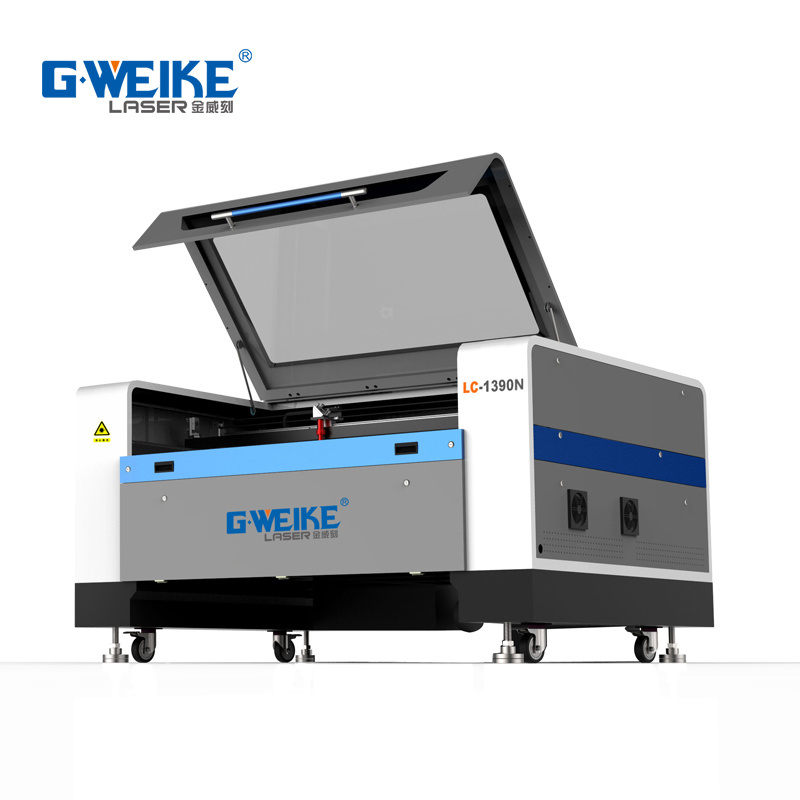

LC1390N Laser Cutting Machine
Co.,Ltd. The machine is mainly equipped with sealed max. 150W CO2 glass laser tube or metal radio - frequency tube with the
function of cutting and carving common non-metal materials and with the wide scope of application in the field of printing,
advertisement, garment, leather and electronics.
|
Application
|
Laser Engraving
|
|
Applicable Material
|
Acrylic, Glass, Leather, MDF, Paper, Plastic, Plywood, Wood
|
|
Engraving Area
|
1300*900mm
|
|
Laser Type
|
CO2
|
|
Warranty of core components
|
1 Year
|
|
Core Components
|
Other
|
|
Mode of Operation
|
continuous wave
|
|
Configuration
|
gantry type
|
|
Feature
|
Water-cooled
|
|
Product name
|
LC1390N
|
|
Function
|
Cutting Engraving Non-metal Materials
|
|
Laser power
|
60W/80W/100W/130W/150W
|
|
Laser tube
|
RECI
|
|
Keywords
|
Co2 Laser Cuting Machine
|
|
After-sales Service Provided
|
Online
|
|
Type
|
Water Cooling CO2 Laser Engraving Machines
|
|
Working table
|
Honeycomb
|
|
Working Voltage
|
AC220V 10%
|
|
Material
|
Non-metel
|
Machine Configuration
Quality control
Samples Display
Company Profile
GWEIKE is established in July 2004 , professional focused on laser cutting machine more than 17 years, owns more than 500 square meters of researching and office space, more than 90000 square meters factory. All machines passed the European CE authentication and are certified to ISO 9001. Products are sold to USA, Canada, Australia, Europe, South east Asia,Africa etc, more than 100 countries and areas, and supply OEM service for more than 30 manufactures.
Packaging & Shipping
Exhibition & Certifications
FAQ
1. How do I install the machine and what services can you provide?
We have prepared a complete user manual, installation preparation guide and installation video. These documents will be sent to you in advance and you can prepare according to them.
After the machine arrives, we will set up an online group where our engineers will be available to guide you, and we will stay online 24 hours a day.
After the machine arrives, we will set up an online group where our engineers will be available to guide you, and we will stay online 24 hours a day.
2. Does the machine have CE or other safety certificates?
-All our machines have these safety certificates. You can ask for the electronic version of the certificate with our sales staff for confirmation. We have agents in Europe and America, so you don't have to worry about the customs clearance of the machines.
3. What is the delivery time for the machine?
-Fast delivery. The delivery time for most machine models is usually within 15-30 working days.
4.How do you provide after-sales service?
-You need to confirm with our engineers in the group now what the problem is, and our engineers will check if they can solve it by remote technical guidance.
If it can't be solved remotely, we will send DHL express to replace the parts for you quickly.
