Thank you for purchas ing of our products.

To enable you to master the correct operation and maintenance of this product as soon as possible.

Common sense, general trouble shooting, please read and make full use of this.

The instruction manual is designed to maintain the performance of this product for a long time.

When you turn on the machine, be sure to follow the instructions .

1. Summarize and use

v Product features

The temperature controller of high and low temperature alternating humidity and heat test chamber adopts TH7110 series wide-screen LCD programmable temperature controller, which can run in fixed value or program, and is simple and convenient to operate. The refrigeration unit adopts the French Taikang unit. The experimental box is equipped with the electrothermal coating vacuum observation window, which can effectively solve the condensation problem of the observation window. The test box adopts integral integrated assembly structure with beautiful appearance.

v Main uses and scope of application

High and low temperature alternating humidity and heat test box is mainly used to test the temperature and humidity stress of specimens. It can be used in aerospace, aviation, electronics, metallurgy, petroleum, chemical and other industries.

v Main Parameters(500L):

v Temperature range :  -40~ +150℃

v Working dimension : 700 × 800 × 900 (mm) ( Depth × width × Height )

v Temperature Average :   ≤2.0℃

v Humidity Error :  20% ~98%R.H

v Voltage :  AC 380 V, 50Hz

v Power : 9 kW

v Control parameters

2. structural characteristics and working principles

Ø The high temperature and low temperature alternating heat and humidity test chamber adopts integral structure. SUS304 stainless steel plate with 1.0 mm thickness inside and 1.2 mm cold-rolled steel plate with 1.2 mm thickness outside are sprayed with electrostatic powder on the surface and filled with 100 mm thick environmentally friendly fibre cotton as insulation layer in the middle.

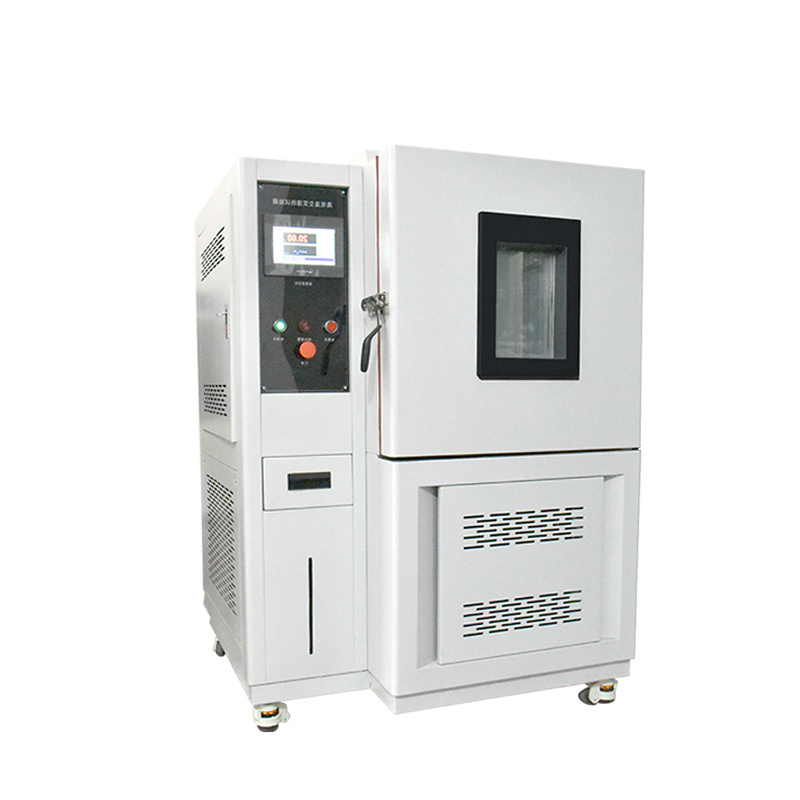

Ø The upper part of the test box is the studio, the right side is the electrical control room; the lower part is the refrigeration unit, and the lower part is the front door of the right side is equipped with a water storage bucket for humidification. The conductive film heating glass window is installed in the middle of the door of the studio to ensure that the state of the test piece can be effectively observed at low temperature and high humidity.

Ø The control system of the high and low temperature alternating humidity and heat test box adopts TH7110 series wide-screen LCD programmable temperature controller, PLC programmable controller and contactless solid-state relay, which can control the temperature and humidity of the test box programmably and record and save the temperature and humidity test curve in real time without paper. (the longest 100 days)

Ø The high and low temperature alternating heat moisture test chamber has multiple safety protection functions:

u Over temperature protection function;

u Water shortage protection function;

u Compressor overload protector

u Compressor overvoltage protection.

1.Response within 24 hours for any problem.

2.Lifelong after sales service & maintenance.

3.Installation and training service is available.

4.According to different user materials, DECCA also provides customized services to meet different users' needs.
