Quick Details
-
Power:
-
1.8W
-
Voltage:
-
10v-32v
-
Warranty:
-
13 Months
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM&DOM / LUVIEW
-
Model Number:
-
JY-PT09 +JY-M750 + JY-6731
-
Radar sensor:
-
Millimeter wave radar
-
Transmission frequency:
-
24.00-24.20GHz
-
Update rate:
-
20Hz
-
Video Signal type:
-
AHD
-
Distance measuring range:
-
0.1-30m
-
Operating Voltage:
-
12-24V
-
Operating Temperature:
-
-40℃-85℃
-
Detection Angle:
-
Horizontal degrees: 100, vertical degrees:40
-
Installation height:
-
40-150cm
-
Distance accuracy:
-
0.1m
Quick Details
-
Car Fitment:
-
Other
-
View Angle:
-
Radar:100° / Car Camera: 150°
-
Function:
-
Waterproof, NIGHT VIEW, G-Sensor, Split Screen, Parking Line, Voice Interaction
-
Power:
-
1.8W
-
Voltage:
-
10v-32v
-
Warranty:
-
13 Months
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM&DOM / LUVIEW
-
Model Number:
-
JY-PT09 +JY-M750 + JY-6731
-
Radar sensor:
-
Millimeter wave radar
-
Transmission frequency:
-
24.00-24.20GHz
-
Update rate:
-
20Hz
-
Video Signal type:
-
AHD
-
Distance measuring range:
-
0.1-30m
-
Operating Voltage:
-
12-24V
-
Operating Temperature:
-
-40℃-85℃
-
Detection Angle:
-
Horizontal degrees: 100, vertical degrees:40
-
Installation height:
-
40-150cm
-
Distance accuracy:
-
0.1m

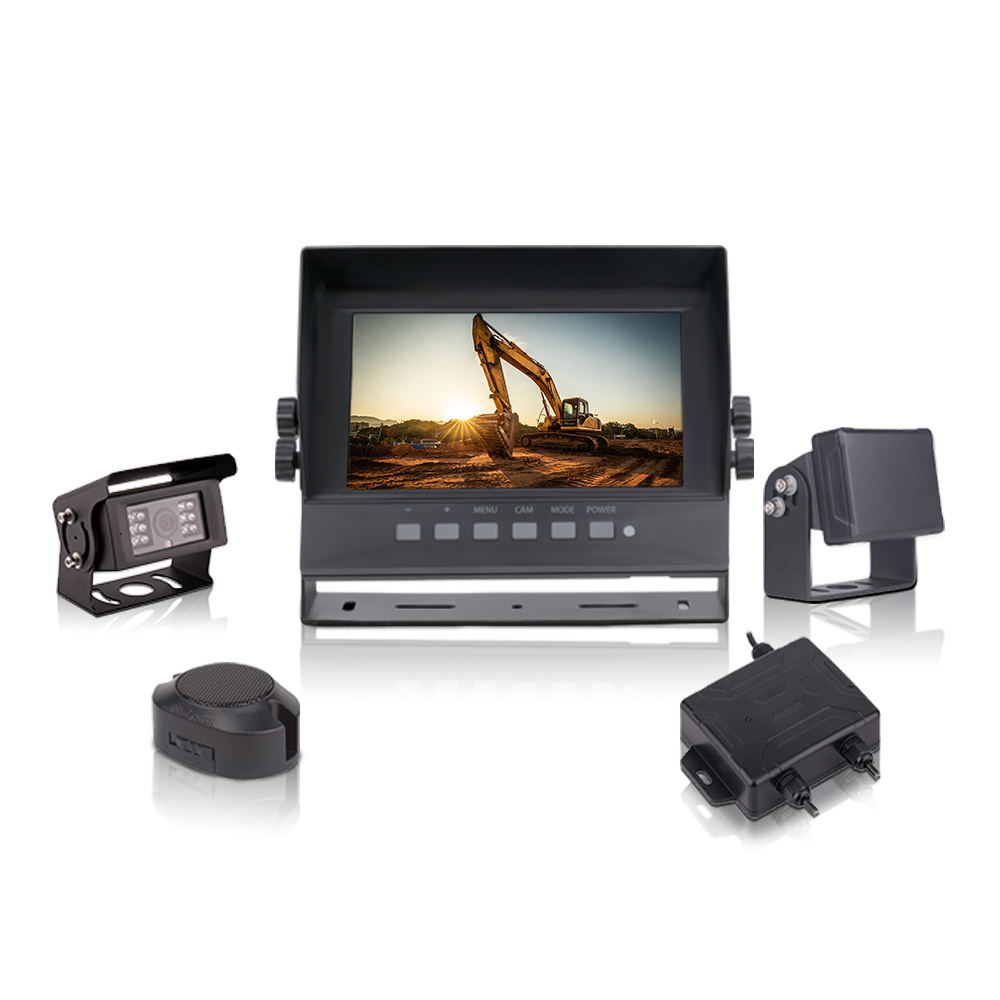

LUVIEW | R159 AI BSD Millimeter Microwave 24GHZ Blind Spot Proximity Warning & Alert Systems
| Radar main box | Radar sensor | ||
| Operating Voltage | 12-24V | Transmission frequency | 24.00-24.20GHz |
| Operating Current | 210mA/12V | Transmission power | 20dBm |
| Video Signal type | AHD | Update rate | 20Hz |
| Signal Standards | NTSC/PAL | Power consumption | 1.8W MAX @12V DC 25℃ |
| Operating Temperature | -20℃—70℃ | Distance measuring range | 0.1-30m |
| Operating Humidity | RH50%~95% | Operating Voltage | 12-24V |
| Storage Temperature | -40℃—85℃ | Operating Temperature | -40℃-85℃ |
| Storage Temperatur | -40℃-95℃ | ||
| Maximum Operating Current | Max:200mA@12V DC | ||
| Detection Angle | Horizontal degrees:100, vertical degrees:40 | ||
| Installation height | 40-150cm | ||
| Distance accuracy | 0.1m | ||
Q: What are your warranty terms?
A: The warranty period of our products is 1-3year, but the parts that are consumables are not covered by the wananty.
Q: Are you a real factory?
A: Yes, we are a leading professional manufacturer in China, engaged in R&D, production and sales of automotive rear-view products.
Q: How long is the delivery time?
A: Usually, the sample order is 3 to 5 days, and the custom prodtuct order is 15 to 20 working days.
Q: Does it support OEM or ODM?
A: Of course, we can accept OEM & ODM orders atany time.
Q: Does your product have a certificate?
A: Yes, our products have CE, FCC, RoHS, E-mark, ITAF16949, CCC, IP69K certificates.
Q: what are the packaging conditions?
A: Usully we pack the goods in a neutal white box When the order reaches the MOQ we can also make custmized boxes according to your requirements.
CEO: "If you want competitive products or custom designed products or OEM your own products or become an agent for a win-win situation, please contact me".
