Quick Details
-
Weight (KG):
-
26000 KG
-
After-sales Service Provided:
-
Engineer Service Oveaseas, Free spare parts, Field maintenance and repair service, Field installation, commissioning and training, Video technical support, Online support
Quick Details
-
Brand Name:
-
LT
-
Applicable Industries:
-
carton packaging
-
Type:
-
Automactic Carton Box Printing Machine
-
Weight (KG):
-
26000 KG
-
After-sales Service Provided:
-
Engineer Service Oveaseas, Free spare parts, Field maintenance and repair service, Field installation, commissioning and training, Video technical support, Online support
Product Description

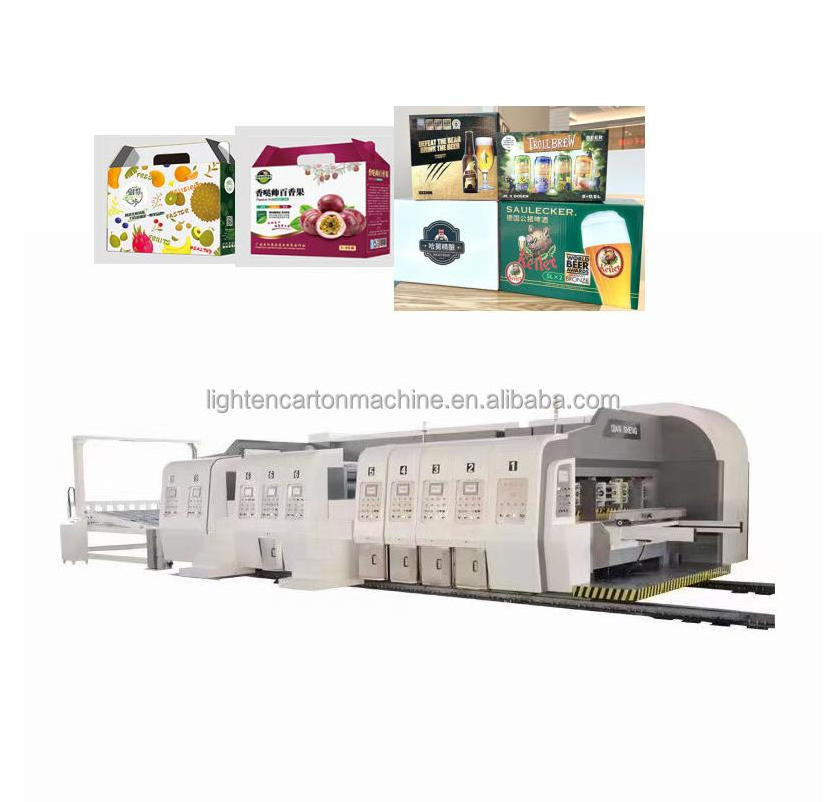

HD-GYKM Automatic High Graphics flexo printing rotary die cutting
(with slotting attachment) with vibrating
stacker machine
|
No.
|
Parameter
|
Unit
|
Model:
HD-GYKM-920
|
Model:
HD-GYKM-1224
|
Model:
HD-GYKM-1428
|
|
1
|
Maximum speed
|
pieces/min
|
200
|
180
|
180
|
|
2
|
Feeding precision
|
mm
|
±0.75
|
±0.75
|
±0.75
|
|
3
|
Maximum paperboard feeding size
|
mm
|
920×2400
|
1200×2400
|
1400×2800
|
|
4
|
Minimum paperboard feeding size
|
mm
|
280×700
|
320×800
|
350×800
|
|
5
|
Maximum Printing size
|
mm
|
920×2200
|
1200×2200
|
1400×2600
|
|
6
|
Printing precision
|
mm
|
±0.3
|
±0.3
|
±0.3
|
|
7
|
Printing polymer thickness
|
mm
|
7.2
|
7.2
|
7.2
|
|
8
|
Max. Die cutting size
|
mm
|
920×2300
|
1200×2300
|
1400×2500
|
|
9
|
Precision of die cutting
|
mm
|
±0.75
|
±0.75
|
±1
|
Lead edge feeder
(
zero pressure type
)
1.
Adsorption lead edge feeding system.
2. With
Dust extraction device.
3.
Operation control switch (PLC computer control).
The control panel is equipped with a 10-inch touch screen, which can control the Lead edge feeding unit, printing unit,
slotting unit, die cutting unit, and is easy to operate.
slotting unit, die cutting unit, and is easy to operate.
4. Automatic zero device. with vacuum transfer system
Printing unit. w
ith oil coating unit
1. Ceramic anolix roller with doctor blade. Dpi: 650~700
2.
Full Vacuum transfer system.
3.
Every printing unit with auxiliary drying device, for help the ink fast drying.
Drying unit -2 units
1) Infrared heating system, the temperature rise is fast and stable. The heating power is about 20kw.
2) Temperature constant temperature control, segment heating, saving electric heating power.
3) Temperature alarm, automatic alarm when the temperature exceeds the standard, safe and reliable.
4) Powerful fan circulation makes the drying speed more rapid.
5) Drying the box body to adjust the lift, convenient to install and replace the lamp tube, and convenient to adjust the drying effect.
2) Temperature constant temperature control, segment heating, saving electric heating power.
3) Temperature alarm, automatic alarm when the temperature exceeds the standard, safe and reliable.
4) Powerful fan circulation makes the drying speed more rapid.
5) Drying the box body to adjust the lift, convenient to install and replace the lamp tube, and convenient to adjust the drying effect.
Rotary die cutting unit (Computer adjustment)
(Independent motor drive; Computer adjust of Pr-creasing and creasing wheels; with slotting attachment )
1. The device has a self-locking function and a pre-pressing and quick-adjusting mechanism, which ensures long-term accuracy
between the disk and the shaft, and slows the breakage of the paper when pressing.
2. The pressing roller adopts the latest design pre-pressing type pressing roller to protect the plasticity of the cardboard from
damage.
3. Planetary gear type phase adjustment mechanism with digital display function, electrically adjusts the slotted phase.
4. Slotted panel operation part is equipped with paper feed on / off and host electric button, with multi-point adjustment
operation function.
between the disk and the shaft, and slows the breakage of the paper when pressing.
2. The pressing roller adopts the latest design pre-pressing type pressing roller to protect the plasticity of the cardboard from
damage.
3. Planetary gear type phase adjustment mechanism with digital display function, electrically adjusts the slotted phase.
4. Slotted panel operation part is equipped with paper feed on / off and host electric button, with multi-point adjustment
operation function.
Material
Transmission gear:
High precision grinding teeth.
Printing/Anilox/Rubber/Bottom printing roller:
Computer dynamic balance correction, grinding and hard chromium plating
Electrical parts.
Siemens(Germany)
Schneider(Germany)
Delta (Taiwan)
Printing samples
