Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Jetinno
-
Power:
-
2700W
Quick Details
-
Type:
-
Vending Machines
-
Dimension:
-
1830(H)x664(L)x720(D)mm
-
After-sales Service Provided:
-
Video technical support, Free spare parts, Online support
-
Warranty:
-
1 Year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Jetinno
-
Power:
-
2700W

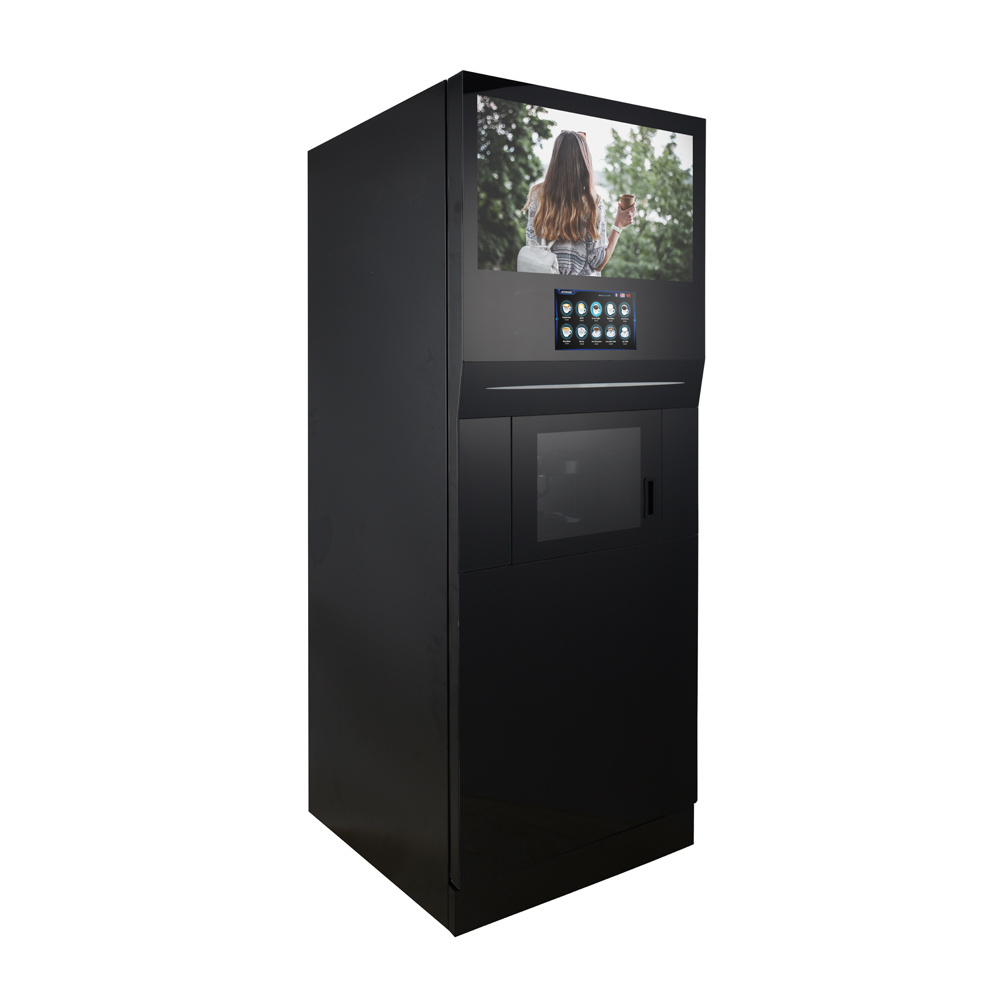

JETINNO JL500 foot standing fully instant machine series give you more selections for instant ingredients which includes 8 instant canisters for instant powder.
Perfectly suit with all kinds of protein powder, can use hot water, normal water, cool water to blend with, depend on customer request.
With 27inch easy-touch display to meet our high technology software program, easy to change recipe, edit products name, price, easy to manage each modular of this machine, easy to order machine to do rinsing or purification. Multilanguage and multimedia player.
Product List
l Instant coffee
l Instant cappuccino
l Hot milk
l Hot chocolate
l Chocolate milk
l Latte
l Cacao
l Long coffee
l Double long coffee
l Instant tea
l Milk tea
l Instant soup
Max 30 selections
Sugar on door is optional
Key Technical information of JL500-IN8CP
l 27inch touch screen display which you can quick select the products you like & Multilanguage & Multimedia player
l Valve from Italy, fitting from German for ensure long life span of machine
l Intelligent maintain system
l High speed mixer for perfect milk foam, speed adjustable.
l Communication by WIFI / GSM which you can manage your machine from anywhere
l Operator tool kits and products menu editor is eco-friendly, easy to change machine configuration and product recipe.
Specification
Machine Size
--------------------------------------------------------
Height 1830mm
Width 664mm
Depth 700mm
Gross Weight 150kg
Net Weight 130kg
Machine Install
---------------------------------------------------------
Power Supply AC 230 V / 50 Hz
Maximum power 2700W
Fuse 15A (England: 13A)
Water inlet pressure 0.5 - 7 BAR
Space for machine rear side 60 mm
Space for machine right and left side 0mm (suggest to 5mm)
Water hardness 2-8 o HD
Environment 5-50 o C, Max humidity 90%
Capacity
--------------------------------------------------------
Water tank 200ml (air break)
Boiler 700ml 2700W AC230V/50Hz
Trip tray 1000ml
Instant volume 7sets, 3.8L per set (adjustable)
Cup Dispense 500 cups
Waste water bin 18L
Waste cake bin 18L
Mug Cup Table Size
---------------------------------------------------------
Maximum cup height 120mm
Minimum cup height 70mm
Max coffee pot height 200 mm
Software
Machine Software Features
--------------------------------------------------
l Elect-mechanism parts alive detecting
l Warning message for machine status
l Communication: USB, WIFI and 3G
l Payment: MDB (Card reader and coin acceptable is optional add-on unit)
l BACK-OFFICE-SYSTEM: EVA-DTS
l Sales data calculation & Machine monitor Dosage & volume adjustable
l Intelligent maintain system
l Clock rinsing and de-scale automatically
l Skip remain coffee ground automatically
l Product menu designer
l Machine configuration designer
l Multilanguage & Multimedia player (7inch touch panel)
l Drip tray full detect
l Drip tray existing detectable
l Coffee bean empty detectable
l Menu edit and machine configuration software tools
DIY of the vending page
It is available to change picutures of background, logo and drink anytime by yourself just with a computer and a flash-drive
Remote control system
With Jetinno cloud server, it is available for you to check the sales data and machine status on your computert or mobile phone anytime
Carton or Wooden Package
Pre-Sales Service
* Inquiry and consulting support
* Sample testing support
* View our Factory
After-Sales Service
* Training (installation, daily use, maintenance)
* Engineers available to service machinery overseas.
