Quick Details
-
Armature Plate Dimension:
-
75Lx33Wx11H(mm)
-
Holding Force:
-
60kg(120Lbs)
-
Input Voltage:
-
12VDC
-
Current:
-
12V/120mA
-
Suitable:
-
File Cabinet ,Display Cabinet
-
Surface Temp:
-
≤+20℃
-
Operating Temp:
-
-10~+55℃(14-131F)
-
Humidity:
-
0~90%(non-condensing)
-
Cover Finish:
-
Anodized aluminum
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Techcrepower
-
Size:
-
80Lx40Wx24 H(mm)
-
Armature Plate Dimension:
-
75Lx33Wx11H(mm)
-
Holding Force:
-
60kg(120Lbs)
-
Input Voltage:
-
12VDC
-
Current:
-
12V/120mA
-
Suitable:
-
File Cabinet ,Display Cabinet
-
Surface Temp:
-
≤+20℃
-
Operating Temp:
-
-10~+55℃(14-131F)
-
Humidity:
-
0~90%(non-condensing)
-
Cover Finish:
-
Anodized aluminum

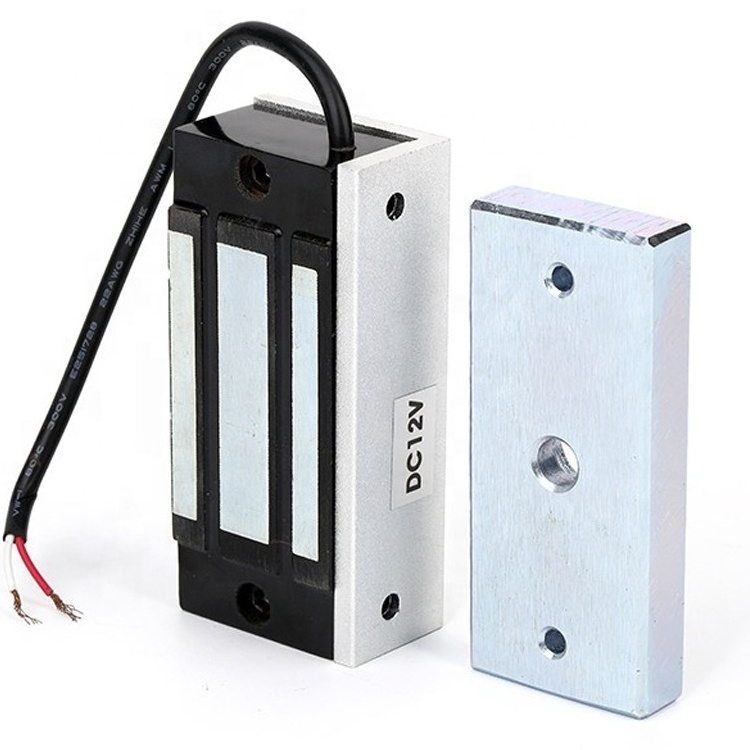

AEL-60 mini 60kgs 100 lbs electronic magnetic lock/ electromagnetic lock door magnetic lock
AEL-60 is a mini single door electric lock, it is designed for showcase, cabinet door and easy to install. The holding force is 120lbs.
• Collinear Load Test 60kg/120pounds
• MOV Provides Reverse Current Protection.
• Anti-Residual Magneism Designed.
• High Strength Material, Anodized Aluminum Housing.
• Design with no Mechanical Bolt.
• Increase the holding Force, Dual Insulative Hosing.
•
CE Certificate by European Union, MA Certificate by China Public Security Office.
Technical Specification:
| Product Parameter | Description |
| Size | 80Lx40Wx24 H(mm) |
| Armature Plate Dimension | 75Lx33Wx11H(mm) |
| Holding Force | 60kg(120Lbs) |
| Input Voltage | 12VDC |
| Current | 12V/120mA |
| Suitable | File Cabinet ,Display Cabinet |
| Surface Temp | ≤+20℃ |
| Operating Temp | -10~+55℃(14-131F) |
| Humidity | 0~90%(non-condensing) |
| Cover Finish | Anodized aluminum |
| Lock Finish | Zinc |
| Armature Plate Finish | Zinc |
| Weight | 0.6KG |
