1、Rubber is extruded with transmission process and low temperature,in order to prove plastify performance. The roller is with the shape of long and narrow, in order to reduce the power consumption.
2、Rubber is applied divided stage in accordance of crown shape of the casing. The weight of applied rubber on each stage is accurately controlled, in order to ensure the applying quality.
3、The weight of applied rubber is calculated and controlled automatically in accordance of the data of process. The stitching process prevents any air from appearing among the rubber.
4、High grade automatic process with few labor operation. The equipment can be equipped with tread grooving device.
- Product Details
- {{item.text}}
Quick Details
-
Dimension(L*W*H):
-
Max10000x4000x4650mm
-
Power (kW):
-
120KW
-
Weight (KG):
-
8000 KG
-
Technical training::
-
Provided
-
Process guidance::
-
Provided
-
Technical material::
-
Specification/Drawing/Control program
-
Control system::
-
AB/Siemens/Mitsubishi/Omron
-
OEM:
-
accept
-
Control voltage:
-
24V
-
Automatic grade:
-
Fully automatic
Quick Details
-
Place of Origin:
-
QINGDAO,CHINA
-
Brand Name:
-
REJET
-
Voltage:
-
220V/380V/480V
-
Dimension(L*W*H):
-
Max10000x4000x4650mm
-
Power (kW):
-
120KW
-
Weight (KG):
-
8000 KG
-
Technical training::
-
Provided
-
Process guidance::
-
Provided
-
Technical material::
-
Specification/Drawing/Control program
-
Control system::
-
AB/Siemens/Mitsubishi/Omron
-
OEM:
-
accept
-
Control voltage:
-
24V
-
Automatic grade:
-
Fully automatic

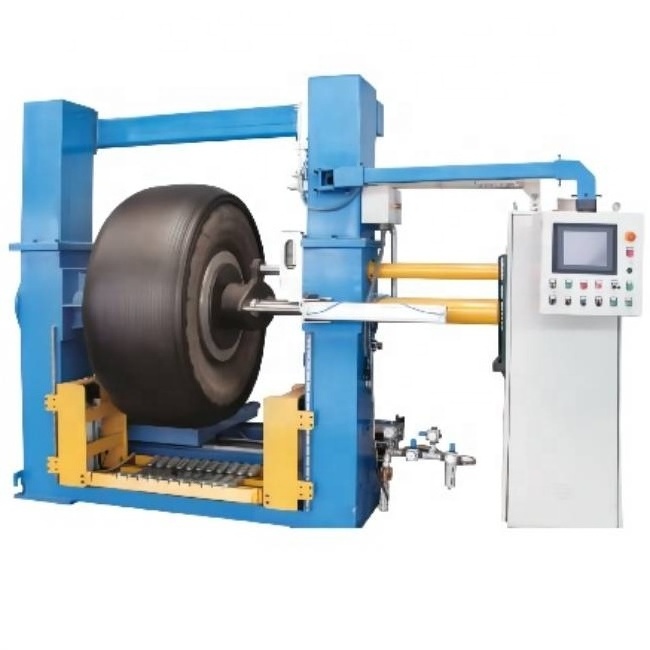

OTC-G25型 OTR Tire Rubber Strip Wrapping Machine
Equipment Features：
|
Technical Parameters
|
|
|
|
Rim Size
|
18.00x25”-27.00 x49”
|
|
|
Tire Diameter
|
1350-2900mm
|
|
|
Tire width
|
490-750mm
|
|
|
Tire Weight
|
Max 4000kg
|
|
|
Screw type
|
MCT120x16D
|
|
|
Power
|
Max 120Kw
|
|
|
Dimensions
|
Max10000x4000x4650mm
|
|
|
Weight
|
Max8000kg
|
|
