Quick Details
-
Brand Name:
-
EASUN POWER
-
Model Number:
-
ICharger-MPPT-2420 2430 2440
-
Work Time (h):
-
Accept Setting
-
Max PV Power:
-
260W(12V) 520W (24V)
-
Max PV Voltage:
-
12v/24v Auto
-
Certificate:
-
CE,FCC,RoHS
-
Warranty:
-
2 Year
-
Model name:
-
mppt solar charge controller
-
Function 1:
-
solar regulator 40A 30A 20A MPPT
-
Function2:
-
regulador solar MPPT
-
Static loss:
-
≤50mA
-
Protection class:
-
IP30
-
Rated charge current:
-
20A/30A/40A
-
Aperture for installation:
-
medium 5mm
-
Custom:
-
Support
-
Light control voltage:
-
5V/10V
-
Battery type:
-
User default, Sealed, Flooded, GEL, LiFePO4, Li(NiCoMn)O2.
Quick Details
-
Type:
-
MPPT
-
Application:
-
Charger Controller, Solar Working Station, Lighting Controller, Voltage Controller, Solar System Controller
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
EASUN POWER
-
Model Number:
-
ICharger-MPPT-2420 2430 2440
-
Work Time (h):
-
Accept Setting
-
Max PV Power:
-
260W(12V) 520W (24V)
-
Max PV Voltage:
-
12v/24v Auto
-
Certificate:
-
CE,FCC,RoHS
-
Warranty:
-
2 Year
-
Model name:
-
mppt solar charge controller
-
Function 1:
-
solar regulator 40A 30A 20A MPPT
-
Function2:
-
regulador solar MPPT
-
Static loss:
-
≤50mA
-
Protection class:
-
IP30
-
Rated charge current:
-
20A/30A/40A
-
Aperture for installation:
-
medium 5mm
-
Custom:
-
Support
-
Light control voltage:
-
5V/10V
-
Battery type:
-
User default, Sealed, Flooded, GEL, LiFePO4, Li(NiCoMn)O2.

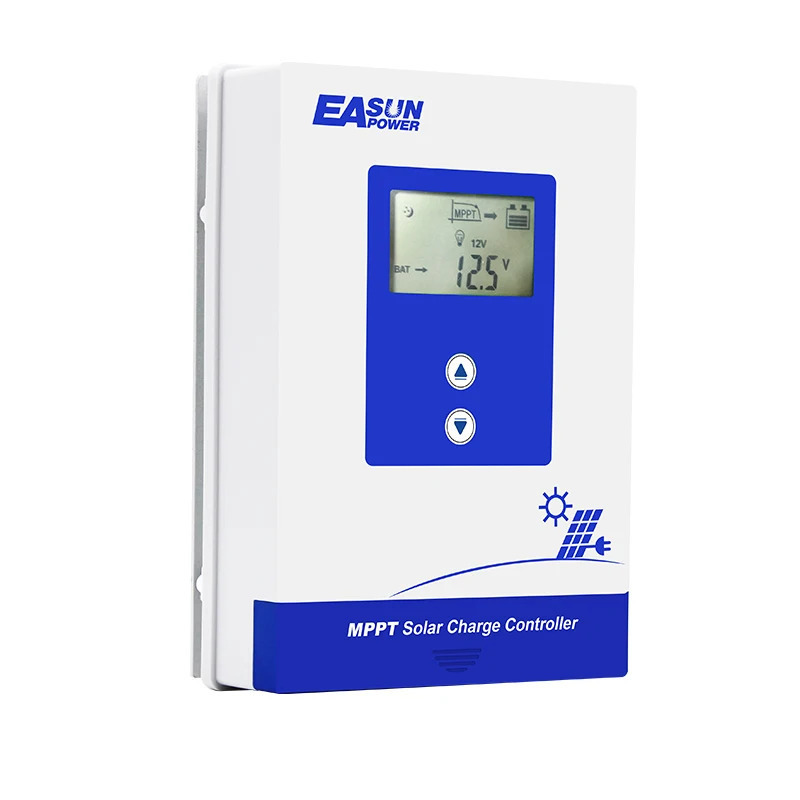

Easun Factory Price MPPT Solar Panel Charger Controller 20A 30A 40A 12V 24V Auto LCD Display Solar Regulator
We support OEM/ODM PWM MPPT 10A-100A, welcome place sample order.
Specification
|
Model Name
|
ICharger-MPPT-2420
|
ICharger-MPPT-2430
|
ICharger-MPPT-2440
|
|||
|
System rated voltage
|
12/24V Auto recognized
|
|
|
|||
|
Maximum battery voltage
|
8V-32V
|
|
|
|||
|
Maximum input power
|
260W(12V)
520W (24V) |
390W(12V)
780W (24V) |
520W(12V)
1040W (24V) |
|||
|
Output
|
|
|
|
|||
|
Rated Discharge Current
|
20A
|
20A
|
30A
|
|||
|
Battery type
|
User default, Sealed, Flooded, GEL, LiFePO4, Li(NiCoMn)O2.
|
|
|
|||
|
Equalized charging voltage |
Maintenance-free lead-acid battery :14.6V,
Duration: 2hours GEL:No;Lead-acid Flooded battery: 14.8V |
|
|
|||
|
Absorption charging voltage |
Maintenance-free lead-acid battery :14.4V,
Duration: 2hours GEL:14.2V ;Lead-acid Flooded battery: 14.6V |
|
|
|||
|
Float charging voltage
|
Maintenance-free lead-acid battery, GEL, lead-acid Flooded battery :13.8V
|
|
|
|||
|
Rated charge current
|
20A
|
30A
|
40A
|
|||
|
LVR
|
Maintenance-free lead-acid battery, GEL, lead-acid Flooded battery :12.6V
|
|
|
|||
|
LVD
|
Maintenance-free lead-acid battery, GEL, lead-acid Flooded battery :10.8V
|
|
|
|||
|
Static loss
|
≤50mA
|
|
|
|||
|
HVD
|
Lead acid battery 16V
|
|
|
|||
|
Light control voltage
|
5V/10V
|
|
|
|||
|
Temperature compensation coefficient
|
-4mV/°C/2V(25°C)
|
|
|
|||
|
Discharge loop voltage drop
|
-20°C~ +70 °C
|
|
|
|||
|
Operating temperature
|
-20°C ~ +55 °C
|
|
|
|||
|
Storage temperature
|
-30~ +80 °C
|
|
|
|||
|
Working humidity
|
≤90%, No condensation
|
|
|
|||
|
Protection class
|
IP30
|
|
|
|||
|
Grounded type
|
Positive grounded
|
|
|
|||
|
Aperture for installation
|
5mm
|
|
|
|||
