HPB-580 TTMC Hydraulic Press 30T Pressure, 25MPA Hydraulic Station for H Frame Press Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $4190

≥5 Sets

US $3550

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Return Force (kN):: 150 kN

Place of Origin:: Shandong, China

Brand Name:: TTMC

Voltage:: According to customer's request

Dimension(L*W*H):: 120x55x168 cm

Weight (T):: 0.34 T

Model Number:: HPB-580

Motor Power (kw):: 2.2 kw

Marketing Type:: High Quality H Frame Shop Press

Item No.:: 382008

Model:: HPB-580

Capacity:: 300 kn

Pressure:: 25 mpa

Quick Details

Machine Type:: H Frame Hydraulic Press

Slide Stroke (mm):: 300

Ejector Force (kN):: 300

Return Force (kN):: 150 kN

Place of Origin:: Shandong, China

Brand Name:: TTMC

Voltage:: According to customer's request

Dimension(L*W*H):: 120x55x168 cm

Weight (T):: 0.34 T

Model Number:: HPB-580

Motor Power (kw):: 2.2 kw

Marketing Type:: High Quality H Frame Shop Press

Item No.:: 382008

Model:: HPB-580

Capacity:: 300 kn

Pressure:: 25 mpa

Product Overview

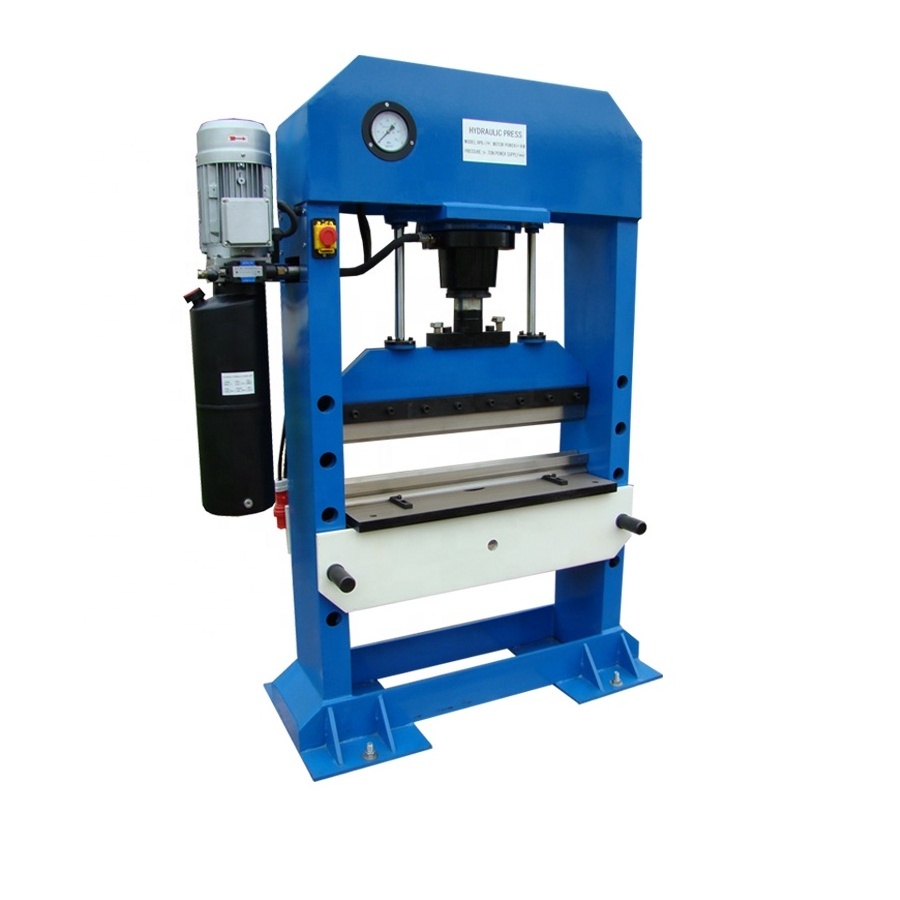

TTMC H Frame Hydraulic Press Brake

It is fitted with heavy duty top and bottom press brake tools, which makes light work of the heavier bending, forming, pressing and straightening operations you need to undertake

FEATURES AT A GLANCE

300 KN Pressure heavy H frame design Hydraulic Press
Top & bottom press brake tooling.
Safe working speed
Quiet hydraulic system
Stepless pressure adjustment
Hydraulic cylinder mounted above tooling providing vertical pressure
Twin guidance pistons in addition to the main ram
Stepless stroke adjustment with limit switches controlling the ram stroke and return
Adjustable bed height with two hardened pins
Control console with two handed operation
Ideal for low or high volume operation

PRODUCT SPECIFICATIONS

TTMC Hydraulic Press Brake (the size not in the chart please contact us for more details request)

SKU	382008	382003	382004	382009	382010
Model	HPB-580	HPB-790	HPB-1010	HPB-1500	HPB-2000
Capacity (kn)	300	500	1000	1500	2000
Pressure (mpa)	25	25	30	30	30
Piston travel Table travel (mm)	300 270	220 405	250 405	250 405	300 405
Table size (mm)	300x400	400X800	460x980	460x980	500x1000
Dimension (cm)	120x55x168	143x65x197	175x75x220	175x72x220	194x80x225
Hydraulic Station (cm)	-	-	73x63x96	73x63x96	98x80x106
N.W./G.W. (kg)	283/340	578/650	1278/1372	1240/1635	1912/2006
