Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
QuanSheng amateure walkie talkie
-
Model Number:
-
TG-K10AT
-
Dimensions:
-
138*62*37mm
-
Frequency Range:
-
VHF136-174MHz/UHF400-480MHz
-
Name:
-
Ham Two Way Radio Single Band VHF / UHF Selected Walkie Talkie
-
OEM ODM:
-
yes
-
Power:
-
110v,120v, 220v
-
Certificate:
-
ISO, CE, FCC, Rohs
-
battery:
-
4000mAh Polymer Li-ion Battery
-
Rated voltage:
-
DC7.2V
-
Warranty:
-
12 months
Quick Details
-
Talk Range:
-
4-6KM
-
Terminal style:
-
Handheld
-
Storage Channel:
-
100
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
QuanSheng amateure walkie talkie
-
Model Number:
-
TG-K10AT
-
Dimensions:
-
138*62*37mm
-
Frequency Range:
-
VHF136-174MHz/UHF400-480MHz
-
Name:
-
Ham Two Way Radio Single Band VHF / UHF Selected Walkie Talkie
-
OEM ODM:
-
yes
-
Power:
-
110v,120v, 220v
-
Certificate:
-
ISO, CE, FCC, Rohs
-
battery:
-
4000mAh Polymer Li-ion Battery
-
Rated voltage:
-
DC7.2V
-
Warranty:
-
12 months

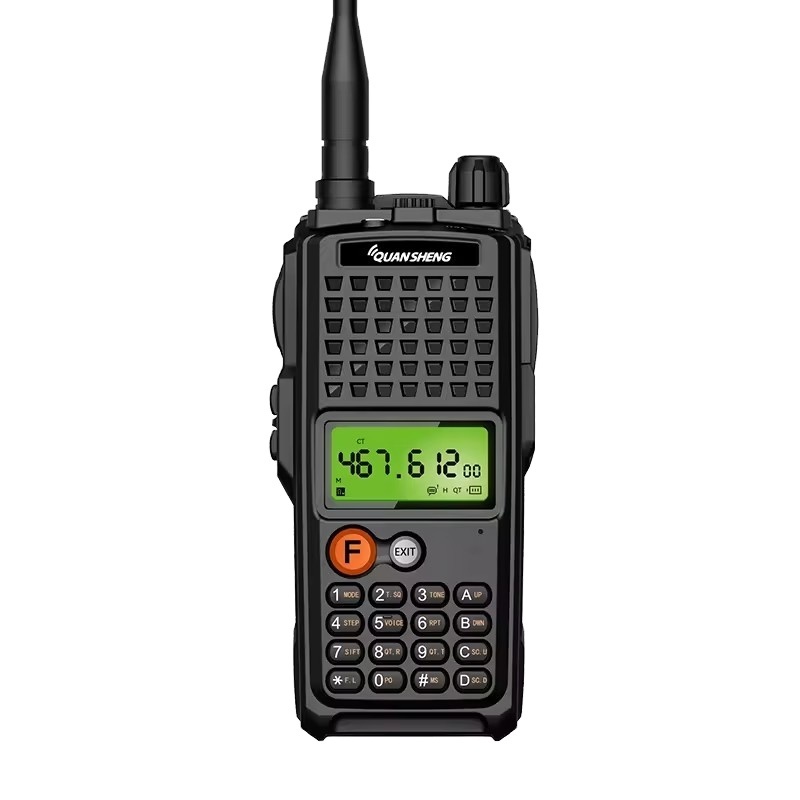

Ham Two Way Radio Single Band VHF / UHF Selected Walkie Talkie TG-K10AT
A total of 25800 Channel Combinations are available when the 100 channels are combined with the 258 privacy codes (50 CTCSS/208 DCS). These combinations prevent interference from other radios. Approved single-band portable transceiver with display function menu on the LCD, upgraded polymer lithium-ion battery high capacity 4000 mAh.
handheld type 10W powerful two-way radio with LCD and keypad handheld type 10W powerful two-way radio with LCD and key
12. Low power alarm, when the power is low, it sends the
| 1. Same frequency / different frequency | |
| 2. PC Program Function | |
| 3. Initialization | |
| 4. Channel step 5k/10k/12.5k/25k | |
| 5. CTCSS/DCS function | |
| 6. Voice prompt | |
| 7. Input Frequency directly by keypad | |
| 8. Display Channel+ Frequency mode | |
| 9. Monitor and scan function | |
| 10. Switch power between "HI" and "LOW” | |
| 11. Auto battery saving function, extend the using time of the battery. | |
| sound signal to alarm you change the battery. | |
| sends authentication range: As usual, it’s 5kilometers, | |
| but sometimes it is affected by environment. | |
| 14. Earphone/microphone/auto charger jack, | |
| convenient for answering and charging. | |
| 15. Scanning function: frequency and channel scan | |
| 16. Memory clear function |
| Frequency range | VHF: 136-174MHz |
| UHF: 400-480MHz | |
| UHF: 450-490MHz | |
| Rated voltage | DC 7.2V |
| Memory channel | 100 |
| Frequency sensitivity | ±5PPM |
| Output power | H≥5W M≥1W |
| Remanent radiation | <7μW |
| Intermodulation distortion | ≥60dB |
| Adjacent channel Selectivity | ≥65dB |
| Blocking | ≥85dB |
| Spurious rejection | ≥65dB |
walkie talkie 500km
walkie talkie 500km
Superheterodyne not RDA chip
01. Outpower: 15W
02. Adopting newest polymer Li-ion battery
03. Adopting imported PC material in case to make it solid abradable
04. 350 hours' super-long waiting time
05. CTCSS/DCS
06. Voice prompt ( Chinese and English )
07. High or Low power adjust
08. Squelch level adjust
09. Wide/Narrow bandwidth
10. Jacklight
11. PC programmable
12. Channel scan
13. Time-out-timer
14. Low power alarm
15. DTMF PTT-ID
16. 1750Hz call tone
17. Tail tone Elimination
18. Roger
walkie talkie 500km
GENERAL
Frequency Range UHF: 400-480MHz
VHF: 136-174MHz
Channel 16
Channel Spacing 25 /12.5KHz
Operating Voltage 7.2V
Antenna Impedance 50Ω
Operating Temperature -25°C~+65°C
Frequency Stability ±2.5ppm
Battery 4000mAh (Polymer Li-ion)
Dimensions 127 X 63X 42mm
Weight 295g
Transmitter
Output Power 15W
Modulation 16KΦF3E/11KΦF3E
Maximum Deviation ≤5.0KHz (W)
Spurious Emission ≤65dB
Audio Distortion ≤5%
Receiver
Sensitivity ≤0.25/0.28μV
Adjacent Channel Selectivity 70/50dB
Intermodulation 60dB
Spurious Response Rejection 70dB
S/N 43/38dB
Rated Audio Power Output ≤0.5W
Rated Audio Distortion ≤5%
e talkie 500km
