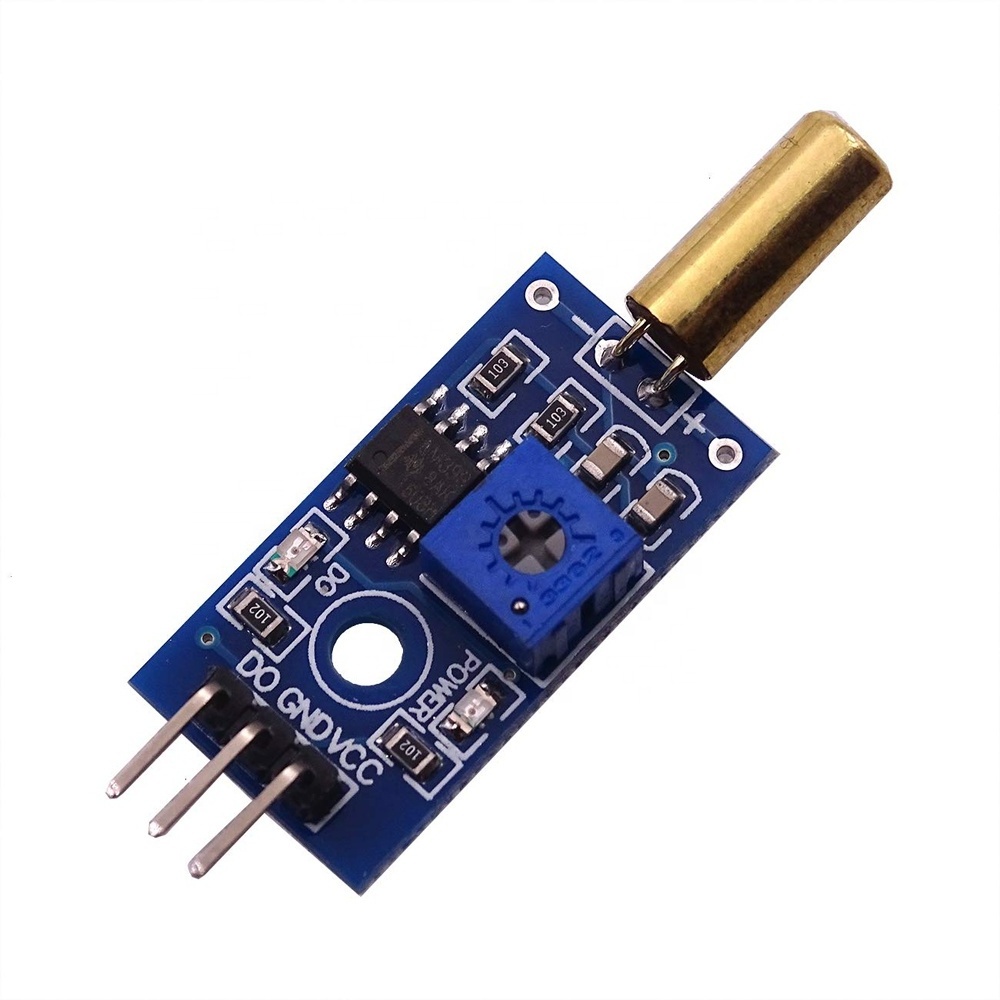

SW-520D Tilt Sensor Module Angle Sensor Module Ball Switch Golden SW520D

Description:
1.Sensor can sense changes in body angle
2.Adjustable sensitivity (shown in blue digital potentiometer adjustment)
4.Operating Voltage 3.3V-5V
5.Output format: digital switching outputs (0 and 1)
6.With fixed bolt hole for easy installation
7.Small PCB board size: 3.2cm * 1.4cm
8.Power indicator (red) and the digital switch output indicator (green)
9.Using LM393 comparator chip, stable
10.Life: at room temperature and normal life of up to 100,000 times switch (times / 1sec).

Instructions for use:
1. Please refer to the wiring diagram below for the wiring of this module, with detailed instructions;
2. The switch output of the module depends on the on and off of the angle switch. When the angle switch is off, the DO output is high, and when the angle switch is turned on, the DO output is low;
3. The output terminal can be directly connected to the single-chip microcomputer, and the high-low level is detected by the single-chip microcomputer, thereby detecting the angle change;
4. The output terminal can directly drive the relay module, which can form a high-power angle switch to protect the automatic power-off function when the products such as electrical equipment are dumped.

Small plate interface specification (3-wire)
1. VCC external 3.3V-5V
2. GND GND External
3. DO small board digital output interfaces (0 and 1)

Wiring:
Module development board connected to VCC VCC
GND GND connection module development board
D0 module development board connected to P0.1
