Quick Details
-
speed strokes/min:
-
25±3
-
max rule length:
-
<15
-
motor power:
-
2.2KW
-
Dimension:
-
1320*1500*1600
-
Warranty:
-
1 Year
-
Operation:
-
Semi-auto
-
Packing:
-
wooden case
Quick Details
-
Place of Origin:
-
Hebei, China
-
Model:
-
ML-750
-
Inner chase size:
-
750*520
-
speed strokes/min:
-
25±3
-
max rule length:
-
<15
-
motor power:
-
2.2KW
-
Dimension:
-
1320*1500*1600
-
Warranty:
-
1 Year
-
Operation:
-
Semi-auto
-
Packing:
-
wooden case

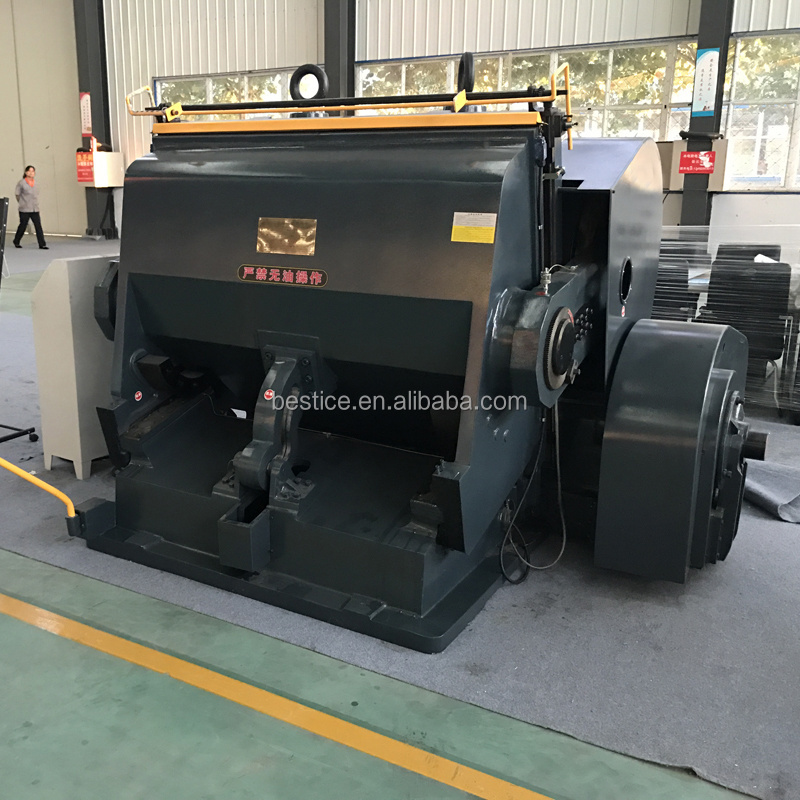

ML-750 flat pess paper cup cardboard ceasing and die cutting machine
1.Aplication:
Die cutting and creasing machine (platen press) is the special equipment for die cutting and creasing a wide range of materials, such as cardboard, corrugated board, plastic and leather.
It is widely used in printing, packaging, decoration and plastic industries and welcomed by the customers due to the reliable performance, high quality.
2.Features:
1) The sliding bearings adopt high quality cast copper alloy which is wear resistant and vibration reducing.
2) The torque of flywheel is big; the force of press and cutting is high.
3) The body of the machine adopts high strength casting iron made by resin sand casting.
4) Single plate electromagnetic clutch moves fast and reliable.
5) It has the functions of single pressing & cutting, continuous pressing & cutting and open delay pressing & cutting, delay range is adjustable from 0.1 to 9.9 seconds.
6) Operating position is reasonable arranged, moving-bed can be opened to its optimum.
7) Reliable safe protecting system
8) It can be equipped with inner and outer movable frame and centralized lubrication device.
3 Technical parameters:
|
Model |
Inner Chase Size(mm) |
Speed strokes/min |
Max. rule Length(m) |
Motor Power (kw) |
Weight (kgs) |
Overall Dimensions(mm) |
|
ML750 |
750*520 |
25±3 |
<15 |
2.2 |
2000 |
1320*1500*1600 |
|
ML930 |
930*670 |
23±3 |
<25 |
4 |
3000 |
1620*1820*1630 |
|
ML1040 |
1040*720 |
20±3 |
<30 |
4 |
3400 |
1750*1900*1670 |
|
ML1100 |
1100*800 |
20±2 |
<32 |
5.5 |
4500 |
1920*2030*1700 |
|
ML1200 |
1200*820 |
20±2 |
<35 |
5.5 |
4800 |
2020*2030*1750 |
|
ML1300 |
1300*920 |
18±2 |
<40 |
5.5/7.5 |
6000 |
2250*2000*1800 |
|
ML1400 |
1400*1000 |
18±2 |
<45 |
5.5/7.5 |
6500 |
2400*2000*1850 |
|
ML1500 |
1500*1050 |
18±2 |
<45 |
5.5/7.5 |
7000 |
2500*2000*1900 |
|
ML1600 |
1600*1250 |
16±2 |
<50 |
11 |
11000 |
2700*2200*2050 |
Platform die cutting machine
Other Carton Box Making Machineries
Pre-sales
As long as you tell us your detail requirement then we will supply the appropriate and cost-effective machines for you. And we have the R&D department and can customize for you. For all your request, we will supply best suggestion and solution on time.
On sale
During the manufacturing time, if you have any query, you can contact with us freely You could contact us by e-mail, or by Skype, Whatsup, or Wechat and QQ.
Welcome you to visit our factory to check the machine. We will pick you up from airport or train station.
After-sale service
We have the engineers available for overseas service, Installation and setup and train your worker for running the machine. If you meet anything you can not solve then you can conatct us freely. We will cooperate with you to solve it.
QC
All our machine will be tested by our QC department before shipping, to ensure every machine will work well after they reach you. The QC is through all production, from raw materials, processing, assembling, finished machine testing.
