Quick Details
-
Brand Name:
-
CHENGLIANG
-
Model Number:
-
W-12V-300W
-
Output Frequency:
-
47-63HZ
-
Output Current:
-
0-25A
-
Efficiency:
-
85.00%
-
Warranty:
-
2 Years
-
Certification:
-
CE RoHS
-
Working temperature:
-
-20-+60℃
-
Storage temperature:
-
-30-+80℃
-
Short circuit protection:
-
Auto recovery
-
Overheat protection:
-
Have
-
Overvoltage protecion:
-
Have
-
Cooling:
-
Self cooling
-
Application:
-
LED Lighting,CCTV camera,machine
Quick Details
-
Input Voltage:
-
100-130/200-250Vac
-
Output Voltage:
-
12V DC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CHENGLIANG
-
Model Number:
-
W-12V-300W
-
Output Frequency:
-
47-63HZ
-
Output Current:
-
0-25A
-
Efficiency:
-
85.00%
-
Warranty:
-
2 Years
-
Certification:
-
CE RoHS
-
Working temperature:
-
-20-+60℃
-
Storage temperature:
-
-30-+80℃
-
Short circuit protection:
-
Auto recovery
-
Overheat protection:
-
Have
-
Overvoltage protecion:
-
Have
-
Cooling:
-
Self cooling
-
Application:
-
LED Lighting,CCTV camera,machine

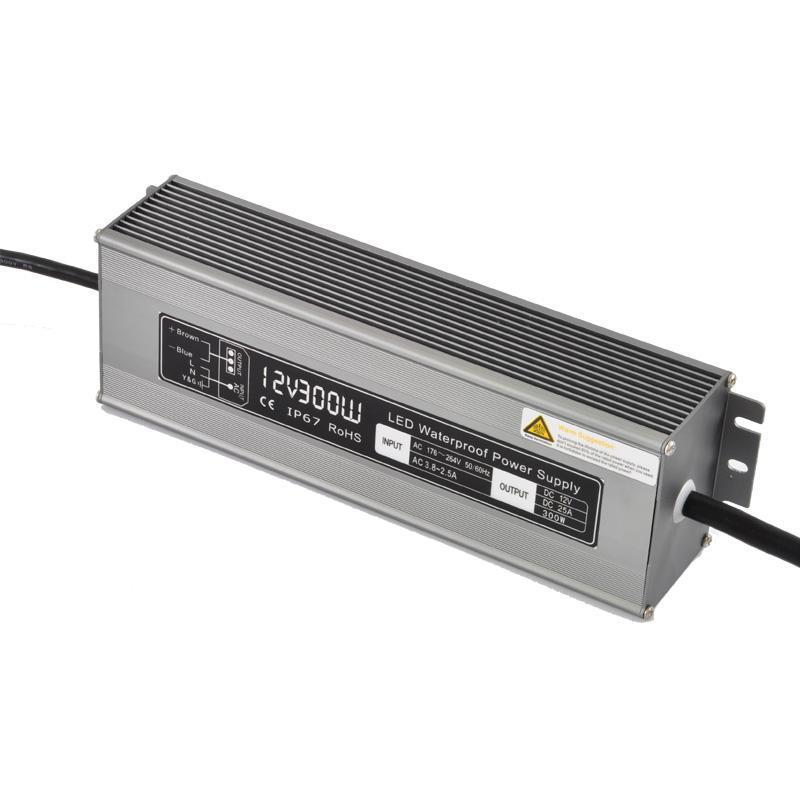

110V/220V AC DC 300W 12V 25A LED waterproof IP67 power supply or driver For LED Strip.
Features:
| Specifications | Value |
| Code | W-12V-300W |
| Type | AC to DC LED power supply |
| Efficiency | 85.00% |
| Certifications | CE,RoHS,FCC |
| Warranty | 2 years |
| Size |
250*75*50(mm) |
| Input Voltage | 100-250Vac |
| Input Frequency | 47-63HZ |
| Output Voltage | 12V |
| Output Current | 25A |
| Output Power | 300W Max |
| Power Factor | 0.50@230Vac |
| Protections | Short circuit / Overload / Under voltage |
| Working Temperature | -20 ℃ +60℃(can customized-40 ℃ +60℃) |
| Storage Temperature | -30-+80℃ |
| Cooling | Self-cooling |
| Short Circuit Protection | Auto Recovery |
| Adjustable output voltage range | 10% |
| Appliactions | LED lamp,light,strip, Industrial equipment,servers, step drivers,safeguard system and so on |
Chengliang Electronic Technology is known as switching power supply manufacturer with certain scale and good reputation in the world.Not because of its advertising,but its standard process and strict quality control,and also its perfect service system.We produce 5v/12v/24v/36v/48v IP20 and IP67 power supply,which are widely used in CCTV camera,LED lighting,3D printer,CNC motor,Step control,Electrical/Medical equipment,etc.
1.Semi-finished product inspection.
2.Assemble and install
3.Burn-in test for every one
4.Function test for every one
5.Package
6.Delivery
7.Applications.
8.Certifications
9.Exhibitions
10.Why choose us?
- 10 years' experience in switching power supply manufacturing and developing.
- 3000 customers, including 2000 in China mainland, 1000 in overseas markets all over the world;
- 100% full load brun-in test
- High quality with competitive price
- Real Factory, OEM and ODM are welcome.
- Delivery within 2 weeks for bulk order, within 3 days for general small batch order
- 2 years warranty
- Complete certification, UL,SAA,KC,CE, RoHS, EMC, FCC etc.
- 100% full load burn-in test.
11.Our main products
1)CCTV camera power supply
2)Dimmable LED power supply
3)IP67 Waterproof power supply
4)IP63 Rainproof power supply
5)Slim power supply
If you have any interest,call or email us immediately.We are looking for sincere partners.
