- Product Details
- {{item.text}}
Quick Details
-
Productivity:
-
30m3/h
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
SANQ
-
Weight:
-
4200KG
-
Dimension(L*W*H):
-
5400*1950 *2100mm
-
Max Concrete throughput:
-
30m3/h
-
Hydraulic system type:
-
open type
-
Max mixing speed:
-
40r/min
-
Concrete pressure:
-
10Mpa
-
Power:
-
85w
-
Max convey distance(vertical/horizontal):
-
150/400m
-
Filling height:
-
1100mm
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Free spare parts, Online support
-
Certification:
-
CE,ISO
Quick Details
-
Power Type:
-
Diesel
-
Max. vertical conveying distance:
-
150M
-
Max. horizontal conveying distance:
-
400M
-
Productivity:
-
30m3/h
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
SANQ
-
Weight:
-
4200KG
-
Dimension(L*W*H):
-
5400*1950 *2100mm
-
Max Concrete throughput:
-
30m3/h
-
Hydraulic system type:
-
open type
-
Max mixing speed:
-
40r/min
-
Concrete pressure:
-
10Mpa
-
Power:
-
85w
-
Max convey distance(vertical/horizontal):
-
150/400m
-
Filling height:
-
1100mm
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Free spare parts, Online support
-
Certification:
-
CE,ISO

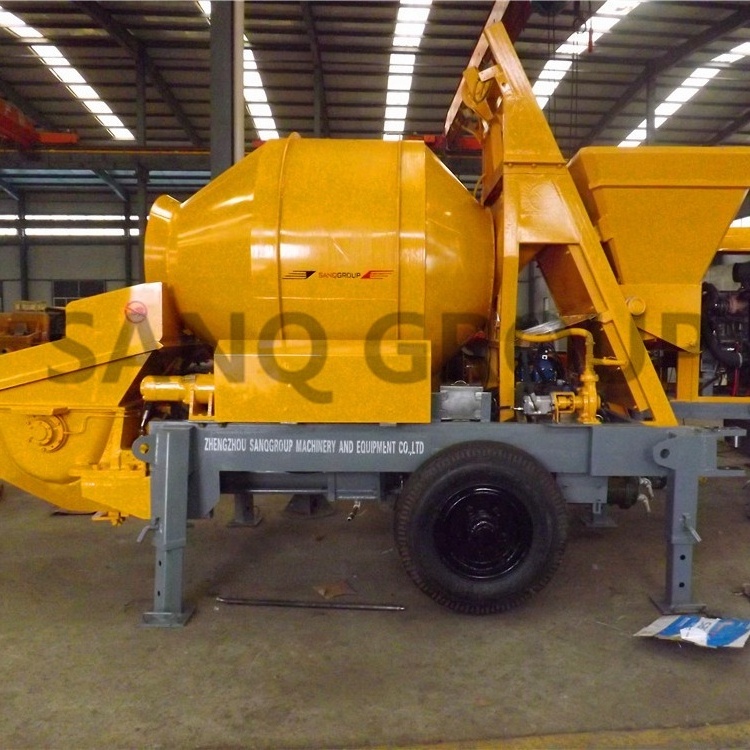

SANQ Mobile low price Construction concrete pump machine 30m3/h capacity Concrete mixer pump Mixing grit pump
Introduction:
Concrete Mixer Pump is a new type of engineering equipment combining concrete mixer and concrete pump together.It use double motors for fast and even mixing,equipped with vibration device for completely discharge.
Hydraulic accessories, power system and the mail oil pump all adopt the domestic well-known branbd with reliasble quality.Mixing and pumping combine in one product reduce the purchasing cost and only one operator can complete two processes with simple operation and high mechanization degree save the labor cost greatly.
Parameter:
| MODEL |
J BT 30 - 10 - 85R |
| Maximum concrete throughput | 30m³/H |
| Concrete pressure | 10Mpa |
| Hydraulic system type | Open type |
| Max mixing speed | 40r/min |
| Motor power | 85KW |
| Concrete bore/stroke | ø 160mm /1000mm |
| Conveying cylinder bore/stroke | ø 100mm /1000mm |
| Hydraulic oil tank volume | 200L |
| Hopper capacity | 400L |
| Filling height | 1100mm |
| Maximum Theoretic conveying distance(vertical/horizontal) | 150m/400m |
| Overall dimension(L×W×H) |
5 4 0 0×19 5 0× 21 0 0mm |
| Weight |
42 00 kg |
Feature
The most suitable projects an d engineering
1.1 Main buildings below 10 floors
1.2 Building and underground garage
1.3 Civil construction
1.4 Small bridges & Tunnels
1.5 Water conservancy slope & Small wharf
1.6 Small river locks and boat lock
1.7 Electric power communication tower base
1.8 Mine construction
1.9 Concrete roadway maintenance field sites scattered
1.10 Highway and road maintenance engineering
Zhengzhou Sanqgroup Machinery and Equipment Co., Ltdare professioanl manufacturer which specialize in R&D, production, distribution and services of concrete equipment. Sanqgroup are located in west of Zhengzhou, the capatial city of Henan province,Covers an area of 45000 square meters with more than 8000 square meters of morden workshop.
- Sanqgroup has absorbed Europe, Japan, the United States and other international advanced technology, with The world's leading batching plant electrical control system we are dedicate to manufacturing high qualtiy, high efficiency and High environmental protection products.
- Our main products are concrete mixing plant, JS series twin shaft mixer, concrete pump,concrete trailer pump and asphalt mixing plant. our products have been exported to Vietnam, Indonesia, Malaysia, India, UAE, Saudi Arabia, Yemen, Algeria, Nigeria, Togo, Benin, Russian, KZ, Mongolia, Chile and Peru etc.have owned favourable reputation in the international market.
SANQGROUP has established an integrated marketing system consisting of "Sales,Maintenance ,Fitting ,Information and Advgertisement "based on the market-oriented policy as well as the high quality products,perfect services and good faith for market development and therefore the marketing network has covered every port of the world. We consider customers the most important element for creating the enterprise's benefit. Sanqgroup have received users' recognition for the perfect services. We will always keep our promise for customer in any ports of the word sice we do what we planced.
- 24 hours on line sercvice
- Regular after-sale visit
- All after -sale service problem will be solved in 72 hours
- Accessories gloabally supply
- Lifetime technique suport
- Enginnerserve overseas avaiable
