- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
MASTECH
-
Model Number:
-
MS6818
-
Product Name::
-

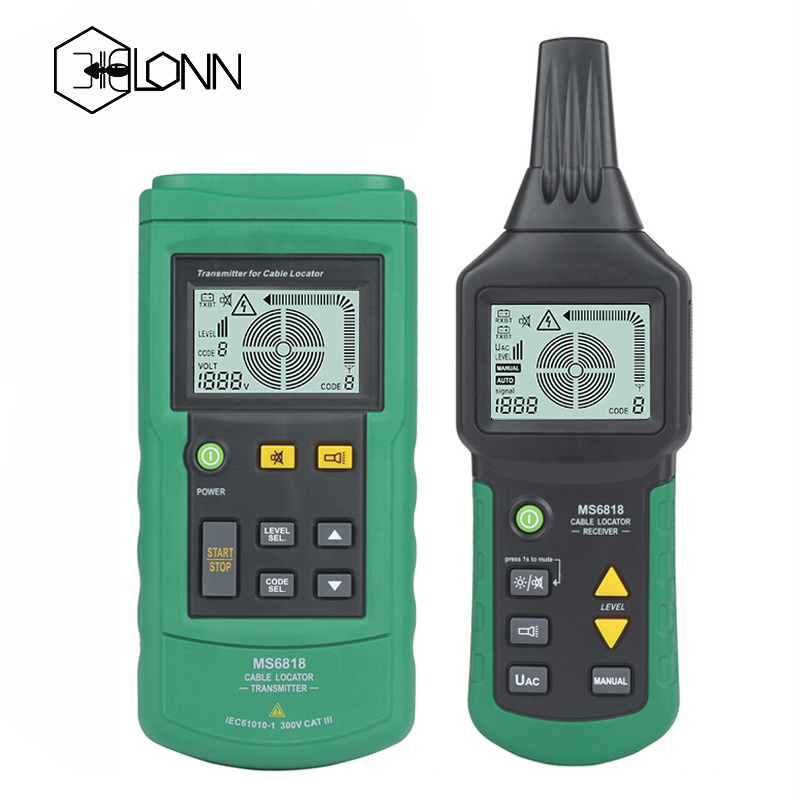

Cable Metal Pipe Locator
-
PACKAGE:
-
10pcs/carton
-
Packaging weight:
-
16kg/carton
-
Packaging size:
-
45*33*42cm
-
Usage::
-
underground cable locator
-
Color::
-
Green+Grey
-
Safety Rating::
-
CE CAT III 300V RoHS
-
MOQ::
-
1
-
Payment::
-
T/T
-
output signal ::
-
125khz
Quick Details
-
Warranty:
-
1 year
-
Power:
-
Electronic
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MASTECH
-
Model Number:
-
MS6818
-
Product Name::
-
Cable Metal Pipe Locator
-
PACKAGE:
-
10pcs/carton
-
Packaging weight:
-
16kg/carton
-
Packaging size:
-
45*33*42cm
-
Usage::
-
underground cable locator
-
Color::
-
Green+Grey
-
Safety Rating::
-
CE CAT III 300V RoHS
-
MOQ::
-
1
-
Payment::
-
T/T
-
output signal ::
-
125khz
Overview
With 30 years of technical knowledge alongside a group of young sales team, Mastech has developed a reputation for excellence:
• Excellence in providing Customer Service
• Excellence in providing Solution-based strategy to all our partners
• Excellence in Innovation in both our products and our solutions
• Excellence in building Long-term Partnerships
• Excellence in creating a Business-Friendly culture
• Excellence in genuine Cooperatiomn
Product applications and feature:
1.Find the Breaks or Shorts in Cable in the wall or Earth
2.Track Cables in the wall or Earth
3.Find the Fuse and Safeguard
4.Track a Metal Conduit in the Project of ware or hot
5.Sensitivity of transmitter or receiver can be selected
6.Auto Ranging, Auto Power Off, Backlight and Worklight
Technical parameters of Transmitter
|
Output Signal |
15kHz |
| External Voltage | D12-400V AC12-400V(50~60Hz)±2.5% |
| Fuse | F0.5A 1000V |
| MIN Current | About 31mA |
| MAX Current | About 115mA |
| In work | 0-40°C,with MAX relative humidity of 80% |
| In storage | -20~60°C, with MAX relative humidity of 80% |
| Altitude | <2000m |
| Power Supply | 1*9V 6F22 Battery |
Technical parameters of Receiver
|
Depth of Tracking |
The Depth of Tracking Depends on the Material and Specific Applications |
| Cable | Single pole application: about 0-2m |
| Locating | Dual pole application: about 0-0.5m |
| MIN Current | About 32mA |
| MAX Current | About 89mA |
| In work | 0-40°C,with MAX relative humidity of 80% |
| In storage | -20~60°C, with MAX relative humidity of 80% |
| Altitude | <2000m |
| Power Supply |
6*1.5V AAA Battery |
| Mode |
Single loop line: Up to 2.5m |
General
| Certificate | CE/ETL/Rohs |
| Safety Rating | CAT III 300V |
