Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
aoshuo
-
Voltage:
-
380v/50HZ
-
Dimension(L*W*H):
-
3110*1150*1650
-
Power (kW):
-
5KW
-
Weight (KG):
-
500 KG
-
Name:
-
China manufacturer carpentry 4 heads multi spindles drilling machine
-
Application:
-
plate surface punching
-
Working area:
-
1300mm*2500mm
-
Color:
-
Blue,red ,green ,white optional
-
Spindle:
-
Air Cooling Spindle
-
Motor:
-
Stepper Motor
-
Transmission:
-
rack and pinion
-
Control system:
-
Ncstudio
-
Software:
-
Artcam/Type3
-
Power(W):
-
2.2kwx8spindle
Quick Details
-
type:
-
Drilling & Milling Machine
-
Max. Drilling Dia. (mm):
-
25
-
Range of Spindle Speed(r.p.m):
-
6000 - 18000 r.p.m
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
aoshuo
-
Voltage:
-
380v/50HZ
-
Dimension(L*W*H):
-
3110*1150*1650
-
Power (kW):
-
5KW
-
Weight (KG):
-
500 KG
-
Name:
-
China manufacturer carpentry 4 heads multi spindles drilling machine
-
Application:
-
plate surface punching
-
Working area:
-
1300mm*2500mm
-
Color:
-
Blue,red ,green ,white optional
-
Spindle:
-
Air Cooling Spindle
-
Motor:
-
Stepper Motor
-
Transmission:
-
rack and pinion
-
Control system:
-
Ncstudio
-
Software:
-
Artcam/Type3
-
Power(W):
-
2.2kwx8spindle
China manufacturer carpentry 4 heads multi spindles drilling machine
Specifications for Side Drilling Machine,
| Model | CK260 |
| Type | CNC high speed side drilling machine |
| max working length | 2450mm |
| panel thickness | 10-60mm |
| Panel width | ≥80mm |
| X Y Z axis traveling speed | 80m/min |
| total power | 5kw |
| operating voltage | 380v/50Hz |
| net weight | 1100kg |
| overall dimension | 3200*1650*1450mm |

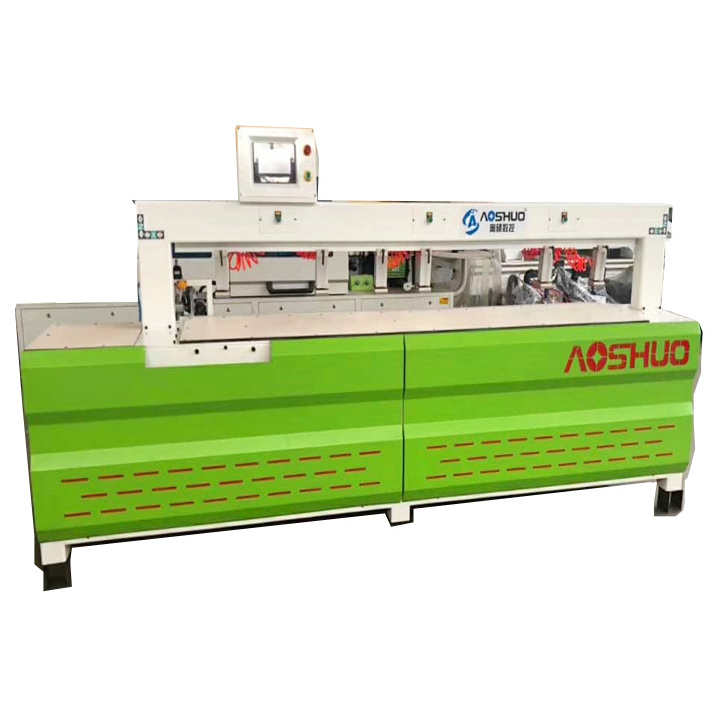

Side Drilling Machine Detail Photos,
Sample Display :
1.Application range:
Furniture Industry:
They can be used to engrave
panel furniture,office furniture ,customized furniture,Cabinets, wardrobes, wooden doors, bedside table
solid Wood doors,Cupboard doors, interior doors, sofa legs, headboards, and other panel furniture.
Wooden product industry
:
They can be used to engrave musical instrument,Audio,game cabinet,computer desk etc
Panel board processing Industry : They can be used for Insulation parts ,plastic board,PCB, Inner body of High-speed train, Anti-folding board,Epoxy Resin ,ABS,PP/PE etc
2.Product Features
A.The machine used for panel furniture and board cabinet processing ,widely used in cutting ,drilling ,sloting ,milling etc .
B. Heavy stell structure body to keep machine strong for heavy cutting working .
C.Automatic oil lubrication system to keep machine long time working and using life .
D.Machine have self-protect design ,Only cycline closer the machine can working .
Guarantee & Aftersales Service
1.Guarantee for one year
2.24-hour technical support by email or calling
3.User-friendly English manual for machine using and maintaining
