Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SENTAO
-
Dimension(L*W*H):
-
L5000*W3000*H4000mm (As Fact)
-
Weight:
-
4800 KG
-
Product Name:
-
Robotic cartons palletizer line/DALSON KUKA robot arm palletizer
-
Applicable Product:
-
Carton Box, PE Film Shrink Package, Bags, Barrel, etc
-
Capacity/Speed:
-
0~50 Pcs/min
-
Power supply:
-
220V/380V,3Phase, 50Hz/60Hz
-
Operational mode:
-
Intelligent HMI
-
PLC:
-
Mitsubishi,Schneider
-
Touch Screen:
-
Schneider
-
Air Cyclinder:
-
AirTAC, FESTO, SMC
-
Relevant Corollary Equipment:
-
Carton Packer,PE Film Wrap Case Packer,Bagging Machine,pallet wrapper
-
After-sale Service:
-
Engineers Avialable Service Oversea
Quick Details
-
Application:
-
Food, Beverage, Commodity, Chemical, APPAREL, Medical
-
Packaging Material:
-
Plastic, Paper, Metal, Wood
-
Voltage:
-
220V,380V,415V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SENTAO
-
Dimension(L*W*H):
-
L5000*W3000*H4000mm (As Fact)
-
Weight:
-
4800 KG
-
Product Name:
-
Robotic cartons palletizer line/DALSON KUKA robot arm palletizer
-
Applicable Product:
-
Carton Box, PE Film Shrink Package, Bags, Barrel, etc
-
Capacity/Speed:
-
0~50 Pcs/min
-
Power supply:
-
220V/380V,3Phase, 50Hz/60Hz
-
Operational mode:
-
Intelligent HMI
-
PLC:
-
Mitsubishi,Schneider
-
Touch Screen:
-
Schneider
-
Air Cyclinder:
-
AirTAC, FESTO, SMC
-
Relevant Corollary Equipment:
-
Carton Packer,PE Film Wrap Case Packer,Bagging Machine,pallet wrapper
-
After-sale Service:
-
Engineers Avialable Service Oversea

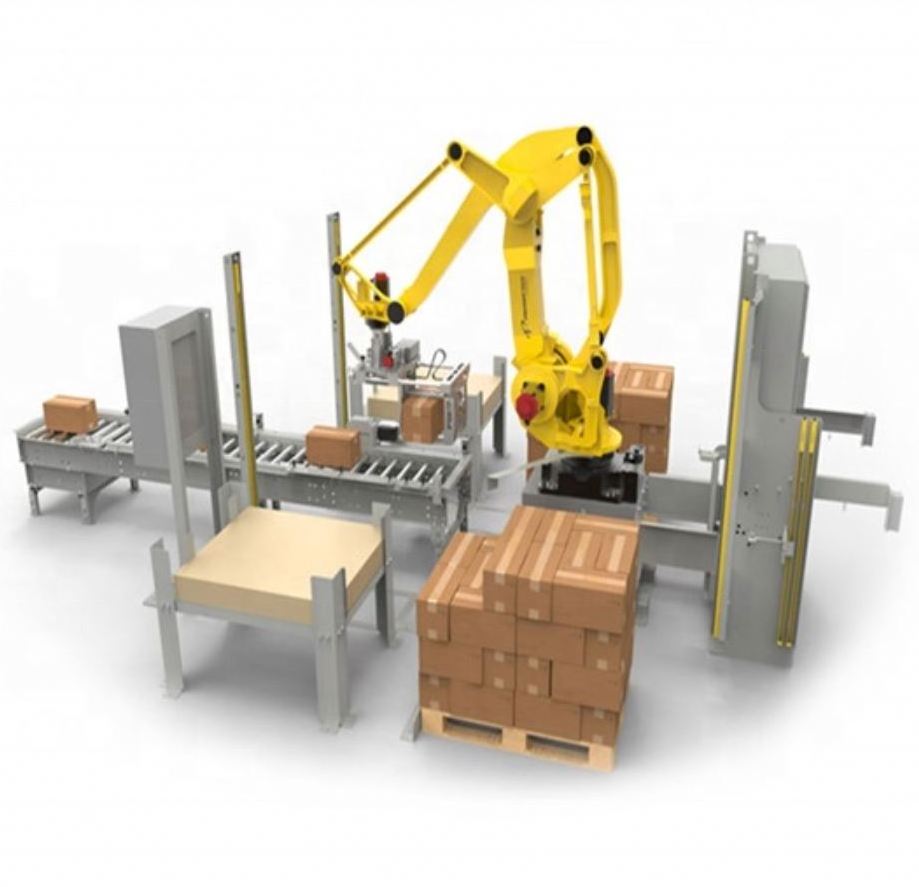

DRP Series Full Automatic Robot Arm Palletizer Machine
DRP series Robot Arm Palletizer M achine mainly use for automatically palletizing of kinds of Carton Box,PE Film Shrink Wrapped Cases,Bags etc according to program setup pattern to finished palletizing products on the pallet one by one piece or one by one layer. T his kind machine suitable for process of water,beverage,oil,etc production line, and also suitable for bottle s, cans ,etc products ca se packing work in other industries.
Robot Arm Palletizer Machine could divide into Standard Speed Type and High Speed Type. According to different speed and related conditions to choice different load value robot arm and grasp head.
Also could according to client’s different products special requirement to improve design for achieved palletizing works . Such as change to Single Case Grasp Head or Whole Layer Cases Grasp Head, Optional match with Empty Pallet storage and dispenser device with main palletizer working together.
DRP Series Robot Arm Palletizer Machine could independent finish products feeding,grouping arrange,empty pallet feeding, whole layer palletizing and full pallet feeding out works in continuously and automatically.
DRP Series Full Automatic Robot Arm Palletizer Machine's Main Tech Data:
|
Model: |
DRP-10 |
DRP-20 |
DRP-50 |
|
Palletizing Speed: |
10Pcs/min |
20Pcs/min |
30~50Pcs/min |
|
Applicable: |
Various Cartons, PE Film Shrink Wrapped Case, Bags etc |
||
|
Power Rate: |
About 10.0KW |
About 12.0KW |
About 16.0KW |
|
Voltage: |
220 V/380V,3Phase, 50Hz/60Hz |
||
|
Air Consumption: |
0.6 m3/h |
0.7 m3/h |
0.85 m3/h |
|
Air Pressure: |
0.5-0.8Mpa |
||
|
Working db: |
≤ 75db |
≤ 75db |
≤ 80db |
|
Machine Weight: |
About 480 0 KG |
About 550 0 KG |
About 600 0 KG |
|
Dimensions: |
At least need W4000mm*6000mm Space (As Fact) |
||
Machine Characteristics:
1. Adopt intelligent HMI to control and display machine running action status and with alarm function in real time.
2. Through multiple buffer design to realize running smoothly, and minimize the possibility of injury to the products.
3. Packing speed is adjustable (controlled by frequency converter).
4. Equipped with the safety protection function of accidental door opening. When the machine under running state , the machine stops and gives an alarm, and the indicator light flashes if accidental open the door.
5. Could design it according to factory site conditions, to realize one robot palletizer cover 2 lines, even one robot palletizer cover 3 lines at same time.
Our Main Products Orientation:
1. Various Carton Erector, Carton Packer, Carton Sealer,Palletizer and Depalletizer Machines
2. Various Labeling Machines
3. Various Conveyors
4. Various PE Film Shrink Wrapper Case Packing Machine, Full Pallet Film Wrapper Machines
5. Whole Line Support,special machine customize.
6. Special Machines Design, Manufacturer and Professional After-sale Service !
