Quick Details
-
Voltage:
-
220V 380v
-
Dimension(L*W*H):
-
2400 *1350 *1500mm
-
Weight:
-
1300 kg
-
Name:
-
Paper Cup Forming Machine
-
Finished Products:
-
paper cup
-
Raw material:
-
paper
-
Type:
-
Automtic
-
Function:
-
High Efficiency
-
After Warranty Service:
-
Video technical support
Quick Details
-
Production Capacity:
-
80 pcs/min
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YUGONG
-
Voltage:
-
220V 380v
-
Dimension(L*W*H):
-
2400 *1350 *1500mm
-
Weight:
-
1300 kg
-
Name:
-
Paper Cup Forming Machine
-
Finished Products:
-
paper cup
-
Raw material:
-
paper
-
Type:
-
Automtic
-
Function:
-
High Efficiency
-
After Warranty Service:
-
Video technical support
Product Description

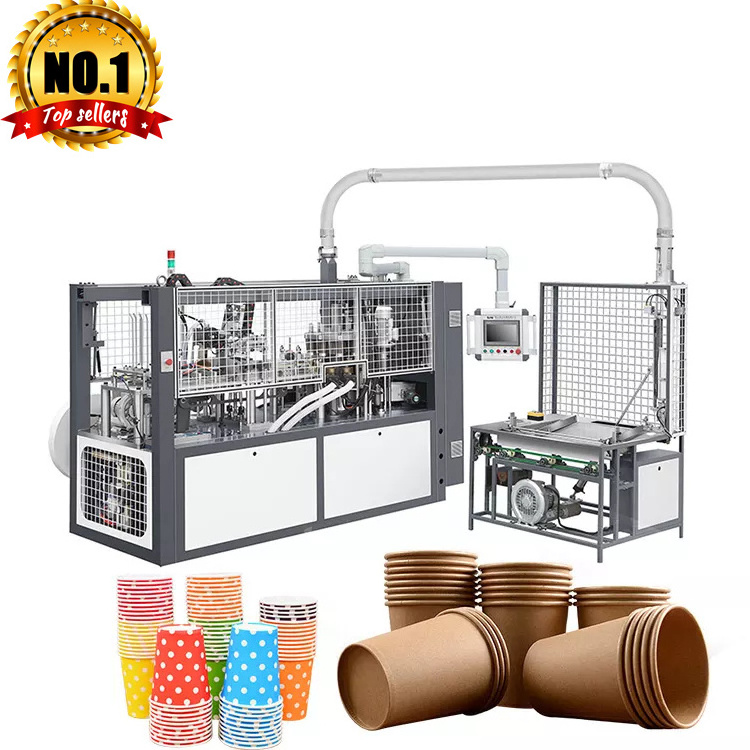

Middle Speed Paper Cup Forming Machine:
Reliability:
Smart middle speed paper cup forming machine is provided with advantages of high performance,high efficiency and high quality.
The overall steel plate machine body and oil-spraying lubrication system ensures normal and stable long-term operation of the equipment.
Reliability:
Smart middle speed paper cup forming machine is provided with advantages of high performance,high efficiency and high quality.
The overall steel plate machine body and oil-spraying lubrication system ensures normal and stable long-term operation of the equipment.
High Efficiency and Energy Conservation:
Advanced high-precision cylindrical cam driving unit working with gear drive system make sure the precisely working of every station.
Bottom paper feeding controlled by servo tracking system,and raw material paper can be saved effectively.
Advanced high-precision cylindrical cam driving unit working with gear drive system make sure the precisely working of every station.
Bottom paper feeding controlled by servo tracking system,and raw material paper can be saved effectively.
Foreign technical and Made in China:
Paper bottom heating system(Switzerland Leister)uses 2 steps flameless heating.
Every step in production is monitored by photocell (Japan Omron)and be reported.
Paper bottom heating system(Switzerland Leister)uses 2 steps flameless heating.
Every step in production is monitored by photocell (Japan Omron)and be reported.
User-friendly design:
The function of machine is controlled by human-computer interface and PLC system.
Manual operation can be replaced by automatic paper cup counting and collection table with appropriate setting.
The function of machine is controlled by human-computer interface and PLC system.
Manual operation can be replaced by automatic paper cup counting and collection table with appropriate setting.
| Cup size |
6~16oz(outside diameter ofa cup 60-90mm,outside diameter of bottom
50~70mm,height of cup 50~135mm,depth of bottom 5~10mm) |
| Rated speed | 90-110pcs/min |
| Main motor power | 2.2KW |
| Electro thermal power | 8.6/13.2KW |
| Air source | 0.6m/min;0.6MPa customer-owned |
| Applical base paper | 190~350g/(single or double PE coating paper) |
| Weight | 3.8T |
| Main size | 2700*1500*1800mm |
| Paper cup collector size | 1150*850*2000mm |
| Actual power consumption | 7.5KW |
| Remark | The paper thickness error margin is ±0.05mm for the same set of mould |
Packaging & Shipping
1. Packaging:
Packed by standard import & export wooden cases or carton boxes.
2. Shipping:
By logistics; by automobile; by train; by shipping; by air etc.
