Quick Details
-
Marketing Type:
-
New Product 2022
-
Application:
-
Cold Rolling Machine
-
After-sales Service Provided:
-
Video Technical
-
Raw material:
-
SPHC, SS
-
Function:
-
Make Spiral Blade
-
Capacity:
-
1-6 r/min
-
Motor power:
-
37KW
-
Model:
-
BB-320
-
Control system:
-
Servo System
-
Voltage:
-
380V 50Hz 3Phase/Customized
-
Product name:
-
Helical Spiral Screw Continuous Blade Cold Rolling
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
bobo
-
Weight (KG):
-
7200
-
Marketing Type:
-
New Product 2022
-
Application:
-
Cold Rolling Machine
-
After-sales Service Provided:
-
Video Technical
-
Raw material:
-
SPHC, SS
-
Function:
-
Make Spiral Blade
-
Capacity:
-
1-6 r/min
-
Motor power:
-
37KW
-
Model:
-
BB-320
-
Control system:
-
Servo System
-
Voltage:
-
380V 50Hz 3Phase/Customized
-
Product name:
-
Helical Spiral Screw Continuous Blade Cold Rolling

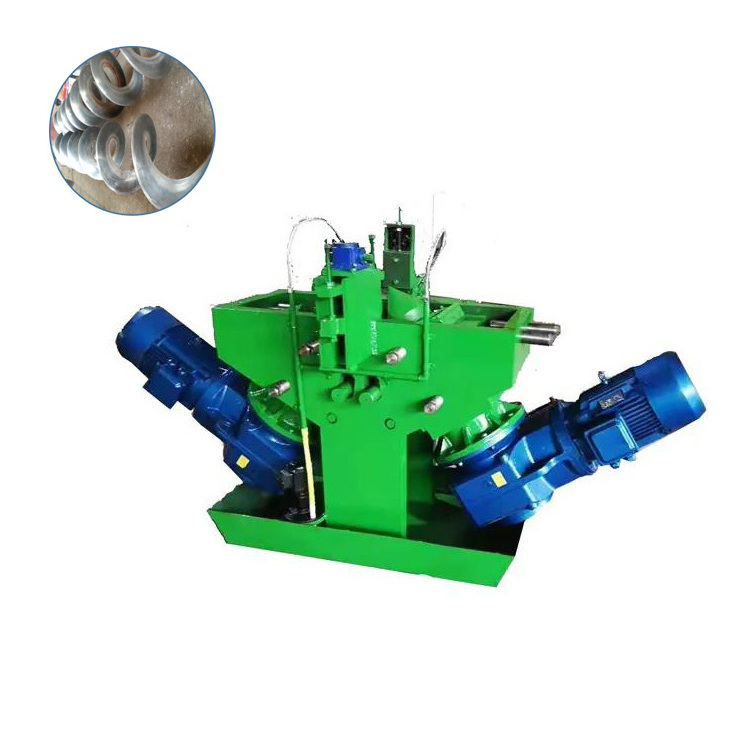

Helical Spiral Screw Continuous Blade Cold Rolling Forming Machine
For Conveyor Grain Transportation
Description
The spiral blade cold rolling mill is a special cold rolling machine for continuous rolling of spiral blades from coiled strip steel. It can roll the required blades of various specifications by adjusting the adjustment parts (roll offset, feeding height, rolling pressure, guide wheel, etc.). The continuous forming spiral blade cold rolling machine is designed with conical rolls, the strip steel can be cold rolled through the rolls to produce continuous spiral blades, replacing the traditional cold drawing forming process. The machine has the advantages of high production efficiency, saving raw materials, small deviation of pitch size, one time forming, high hardness, smooth surface, continuous without welding seam, etc.
★ Processing Effect Display
★ Main Parameter
|
NO.
|
Item
|
Parameter
|
|
|
||
|
1
|
Model
|
BB-270
|
BB-350
|
BB-400
|
||
|
2
|
Working mode
|
Mechanical
|
Mechanical
|
Hydraulic
|
||
|
3
|
The thickness of rolled strip
|
2-5mm
|
2-6mm
|
2-8mm
|
||
|
4
|
The width of the strip rolling
|
≤90mm
|
≤130mm
|
≤150mm
|
||
|
5
|
ID
|
25-90mm
|
25-110mm
|
30-110mm
|
||
|
6
|
OD
|
90-270mm
|
90-350mm
|
90-400mm
|
||
|
7
|
Pitch of screw thread
|
80-230mm
|
80-300mm
|
80-350mm
|
||
|
8
|
Rolled speed
|
1-6r/min
|
1-6r/min
|
1-6r/min
|
||
|
9
|
Main motor working speed
|
1440r/min
|
1440r/min
|
980r/min
|
||
|
10
|
Main power
|
26.5kw
|
26.5kw
|
34kw
|
||
|
11
|
Gross weight
|
6T
|
6.7T
|
9T
|
||
