Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
Uniview
-
Model Number:
-
IPC3615SB-ADF28(40)KMC-I0
-
Ingress Protection:
-
IP67
-
24-hour full-color images:
-
Supports
-
Illuminator:
-
LED Distance Up to 30m (98ft)
-
Product name:
-
Bullet Network Camera
-
Resolution:
-
Support PoE power supply
-
Defog:
-
Digital Defog
-
Reset Button:
-
Supported
-
power:
-
DC 12V±25%, PoE (IEEE 802.3af)
-
Web Browser Plug-in required live view:
-
IE9+, Chrome 41 and below, Firefox 52 and below
-
Material:
-
metal
Quick Details
-
Special Features:
-
Human Motion Tracking, Face detection, NIGHT VISION, Built-in Siren, Two-way Audio, Low Power
-
Function:
-
Two-way Audio, Alarm I/O, RESET, NIGHT VISION, Waterproof / Weatherproof, One-way Audio, Built-in Siren, NIGHT VISION, Waterproof / Weatherproof, Smart Illumination, Digital Defog, HLC, BLC
-
Customized support:
-
Customized logo, OEM, ODM
-
Place of Origin:
-
China
-
Brand Name:
-
Uniview
-
Model Number:
-
IPC3615SB-ADF28(40)KMC-I0
-
Ingress Protection:
-
IP67
-
24-hour full-color images:
-
Supports
-
Illuminator:
-
LED Distance Up to 30m (98ft)
-
Product name:
-
Bullet Network Camera
-
Resolution:
-
Support PoE power supply
-
Defog:
-
Digital Defog
-
Reset Button:
-
Supported
-
power:
-
DC 12V±25%, PoE (IEEE 802.3af)
-
Web Browser Plug-in required live view:
-
IE9+, Chrome 41 and below, Firefox 52 and below
-
Material:
-
metal
You may also like
Product Description

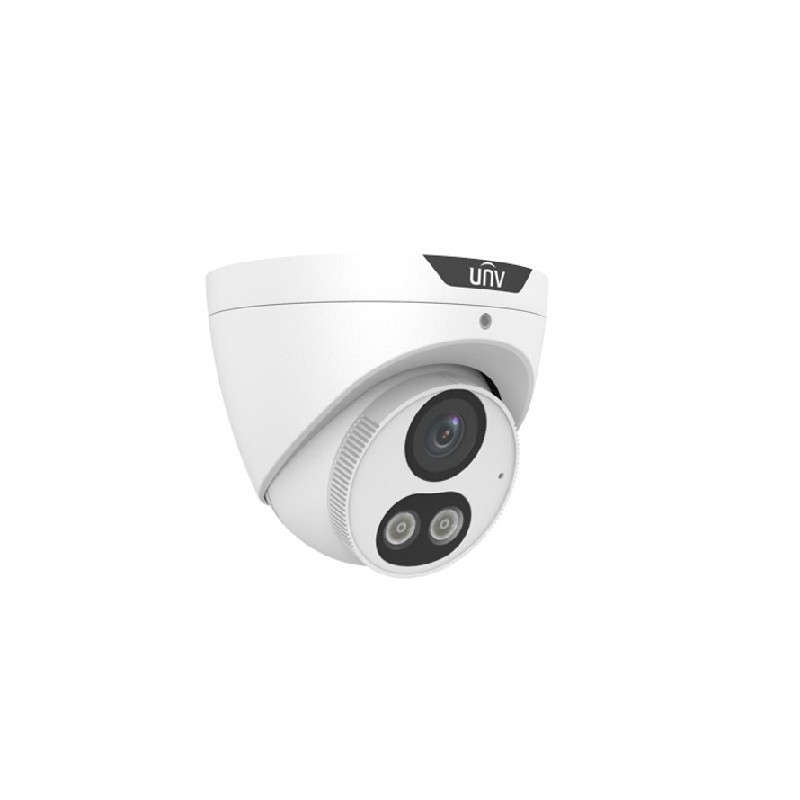

IPC3615SB-ADF28(40)KMC-I0
5MP HD Light and Audible Warning Fixed Eyeball
• High quality image with 5MP, 1/2.7"CMOS sensor
• 5MP (2880*1620)@ 30/25fps; 4MP (2560*1440)@ 30/25fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps
• Ultra 265, H.265, H.264, MJPEG
• Supports sound and light alarm linkage.When Smart intrusion prevention is triggered , the camera links sound alarm and lightlinkage.
• 120dB true WDR technology enables clear image in strong light scene
• Support 9:16 Corridor Mode
• Built-in Mic and Speaker
• Smart IR, up to 30m (98ft) IR distance
• Supports 256 G Micro SD card
• IP67 protection
• Support PoE power supply
• 5MP (2880*1620)@ 30/25fps; 4MP (2560*1440)@ 30/25fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps
• Ultra 265, H.265, H.264, MJPEG
• Supports sound and light alarm linkage.When Smart intrusion prevention is triggered , the camera links sound alarm and lightlinkage.
• 120dB true WDR technology enables clear image in strong light scene
• Support 9:16 Corridor Mode
• Built-in Mic and Speaker
• Smart IR, up to 30m (98ft) IR distance
• Supports 256 G Micro SD card
• IP67 protection
• Support PoE power supply
Specification
|
|
IPC3615SB-ADF28KMC-I0
|
|
|
IPC3615SB-ADF40KMC-I0
|
|
|||||
|
Camera
|
|
|
|
|
|
|||||
|
Sensor
|
1/2.7", 5.0 megapixel, progressive scan, CMOS
|
|
|
|
|
|||||
|
Minimum Illumination
|
Colour: 0.003Lux (F1.6, AGC ON)
|
|
|
|
|
|||||
|
|
0Lux with IR on
|
|
|
|
|
|||||
|
Day/Night
|
IR-cut filter with auto switch (ICR)
|
|
|
|
|
|||||
|
Shutter
|
Auto/Manual, 1 ~ 1/100000s
|
|
|
|
|
|||||
|
Adjustment angle
|
Pan: 0° ~ 360°
|
|
Tilt: 0° ~ 80°
|
|
Rotate: 0° ~ 360°
|
|||||
|
WDR
|
120dB
|
|
|
|
|
|||||
|
S/N
|
>56dB
|
|
|
|
|
|||||
|
Lens
|
|
|
|
|
|
|||||
|
Lens type
|
2.8mm@F1.6
|
|
|
4.0mm@F1.6
|
|
|||||
|
Angle of view(H)
|
101.1°
|
|
|
83.7°
|
|
|||||
|
Angle of View (V)
|
55.3°
|
|
|
44.9°
|
|
|||||
|
Angle of View (O)
|
111.1°
|
|
|
89.2°
|
|
|||||
|
DORI
|
|
|
|
|
|
|||||
|
DORI Distance
|
Lens (mm)
|
Detect (m)
|
Observe (m)
|
Recognize (m)
|
Identify (m)
|
|||||
|
|
2.8
|
63
|
25.2
|
12.6
|
6.3
|
|||||
|
|
4
|
90
|
36
|
18
|
9
|
|||||
|
Illuminator
|
|
|
|
|
|
|||||
|
IR Range
|
Up to 30m (98ft) IR range
|
|
|
|
|
|||||
|
Wavelength
|
850nm
|
|
|
|
|
|||||
|
IR On/Off Control
|
Auto/Manual
|
|
|
|
|
|||||
|
Video
|
|
|
|
|
|
|||||
|
Video Compression
|
Ultra 265, H.265, H.264, MJPEG
|
|
|
|
|
|||||
|
H.264 code profile
|
Baseline profile, Main profile, High profile
|
|
|
|
|
|||||
|
Frame Rate
|
Main Stream:5MP (2880*1620), Max 30fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps;
|
|
|
|
|
|||||
|
|
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max
30fps; |
|
|
|
|
|||||
|
|
Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
|
|
|
|
|
|||||
|
Video Bit Rate
|
128 Kbps~16 Mbps
|
|
|
|
|
|||||
|
U-code
|
Support
|
|
|
|
|
|||||
|
ROI
|
Up to 8 areas
|
|
|
|
|
|||||
|
Video Stream
|
Triple streams
|
|
|
|
|
|||||
|
OSD
|
Up to 8 OSDs
|
|
|
|
|
|||||
|
Privacy Mask
|
Up to 4 areas
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|||||
|
White Balance
|
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
|
|
|
|
|
|||||
|
Image Setting
|
Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser
|
|
|
|
|
|||||
|
Digital Noise Reduction
|
2D/3D DNR
|
|
|
|
|
|||||
|
Smart IR
|
Support
|
|
|
|
|
|||||
|
Flip
|
Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
|
|
|
|
|
|||||
|
Dewarping
|
N/A
|
|
|
|
|
|||||
|
HLC
|
Supported
|
|
|
|
|
|||||
|
BLC
|
Supported
|
|
|
|
|
|||||
|
Defog
|
Digital Defog
|
|
|
|
|
|||||
|
Audio
|
|
|
|
|
|
|||||
|
Audio Compression
|
G.711
|
|
|
|
|
|||||
|
Audio Bitrate
|
64 Kbps
|
|
|
|
|
|||||
|
Two-way audio
|
Supported
|
|
|
|
|
|||||
|
Suppression
|
Supported
|
|
|
|
|
|||||
|
Sampling Rate
|
8KHZ
|
|
|
|
|
|||||
|
Storage
|
|
|
|
|
|
|||||
|
Edge Storage
|
Micro SD, up to 256 GB
|
|
|
|
|
|||||
|
Network Storage
|
ANR, NAS(NFS)
|
|
|
|
|
|||||
|
Network
|
|
|
|
|
|
|||||
|
Protocols
|
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS,
RTMP,SSL/TLS, SSH |
|
|
|
|
|||||
|
Compatible Integration
|
ONVIF (Profile S, Profile G, Profile T) , API,SDK
|
|
|
|
|
|||||
|
User/Host
|
Up to 32 users. 2 user levels: administrator and common user
|
|
|
|
|
|||||
|
Security
|
Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest
authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF |
|
|
|
|
|||||
|
Client
|
EZStation
|
|
|
|
|
|||||
|
|
EZView
|
|
|
|
|
|||||
|
|
EZLive
|
|
|
|
|
|||||
|
Web Browser
|
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
|
|
|
|
|
|||||
|
|
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+
|
|
|
|
|
|||||
|
Interface
|
|
|
|
|
|
|||||
|
Audio I/O
|
N/A
|
|
|
|
|
|||||
|
Alarm I/O
|
N/A
|
|
|
|
|
|||||
|
RS485
|
N/A
|
|
|
|
|
|||||
|
Built-in Mic
|
Support
|
|
|
|
|
|||||
|
Built-in Speaker
|
Support
|
|
|
|
|
|||||
|
WIFI
|
N/A
|
|
|
|
|
|||||
|
Network
|
1 RJ45 10M/100M Base-TX Ethernet
|
|
|
|
|
|||||
|
Video Output
|
N/A
|
|
|
|
|
|||||
|
Certifications
|
|
|
|
|
|
|||||
|
EMC
|
FCC CFR 47 Part 15
|
|
|
|
|
|||||
|
|
EN 55032:2015
|
|
|
|
|
|||||
|
|
EN 55024:2010
|
|
|
|
|
|||||
|
|
EN 61000-3-2:2014
|
|
|
|
|
|||||
|
|
EN 61000-3-3-2013
|
|
|
|
|
|||||
|
Safety
|
IEC 62368-1
|
|
|
|
|
|||||
|
|
EN 62368-1
|
|
|
|
|
|||||
|
|
UL 62368-1
|
|
|
|
|
|||||
|
Environment
|
CE-ROHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006)
|
|
|
|
|
|||||
|
General
|
|
|
|
|
|
|||||
|
Power
|
DC 12V±25%, PoE (IEEE 802.3af)
|
|
|
|
|
|||||
|
|
Power consumption: Max 7.5W
|
|
|
|
|
|||||
|
Power Interface
|
Ø 5.5mm coaxial power plug
|
|
|
|
|
|||||
|
Dimensions (Ø x H)
|
Φ111 x 95mm (Φ4.4” x 3.7”)
|
|
|
|
|
|||||
|
Weight
|
0.43kg (0.948lb)
|
|
|
|
|
|||||
|
Material
|
Metal + Plastic
|
|
|
|
|
|||||
|
Working Environment
|
-30°C ~ 55°C (-22°F ~ 131°F), Humidity: ≤95% RH (non-condensing)
|
|
|
|
|
|||||
|
Storage Environment
|
-30°C ~ 55°C (-22°F ~ 131°F), Humidity: ≤95% RH (non-condensing)
|
|
|
|
|
|||||
|
Surge Protection
|
4KV
|
|
|
|
|
|||||
|
Reset Button
|
N/A
|
|
|
|
|
|||||
|
Protection
|
Ingression protection: IP67
|
|
|
|
|
|||||
