Quick Details
-
Model Number:
-
FTDI RS232 ZT213
-
Place of Origin:
-
Guangdong, China
-
Length:
-
50cm 100cm 150cm
-
Color:
-
Black/ Blue
Quick Details
-
USB Type:
-
Standard
-
Material:
-
PVC
-
Connector:
-
USB 2.0 Connector
-
Model Number:
-
FTDI RS232 ZT213
-
Place of Origin:
-
Guangdong, China
-
Length:
-
50cm 100cm 150cm
-
Color:
-
Black/ Blue

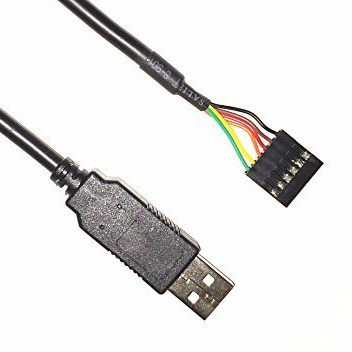

- The FTDI cable is a USB to Serial (TTL level) converter which allows for a simple way to connect TTL interface devices to USB. The VCC pins of this FTDI cable are configured to operate at 5V with 3.3V I/O.
- The FTDI cable is designed around an FT232RQ, which is housed in a USB A connector. The other side of the cable is terminated with a 0.1" pitch, 6-pin connector with the following pinout: RTS, RX, TX, 5V, CTS, GND (RTS is the green cable and GND is black).
-
This cable has almost the same pinout and functionality as our FTDI Basic Breakout board; you can use it to program your Arduino Pro, Pro Mini and Lilypad, etc. For use with those boards, align the black and green wires of the FTDI cable with the 'BLK' and 'GRN' labels on the PCB. The difference between this cable and the FTDI Basic Breakout is the cable has a 5V Vcc where as the breakout has a 3.3V Vcc. You will still be able to program an Aruidno Pro, Pro Mini, Lilypad, etc. The 5V Vcc supply will not damage these Arduino circuit boards.
