- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Network Interfaces:
-
Dual switched auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports
-
Graphic Display:
-
4.3 inch (480x272) TFT color LCD
-
Bluetooth:
-
Yes, Bluetooth V2.1
-
Auxiliary Ports:
-
RJ9 headset jack (allowing EHS with Plantronics headsets), USB
-
Sample Applications:
-
Weather, currency, news, XML
-
HD Audio:
-
Yes, both on handset and speakerphone
-
Base Stand/Wall Mountable:
-
Yes, allow 2 angle positions
-
QoS:
-
Layer 2 (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS
-
Dimention:
-
228mm (W) x 206mm (L) x 46.5mm (H)
-
Unit weight:
-
0.98kg
Quick Details
-
Type:
-
VoIP Phone
-
Brand Name:
-
Grandstream
-
Model Number:
-
GXP2140
-
Place of Origin:
-
Guangdong, China
-
Network Interfaces:
-
Dual switched auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports
-
Graphic Display:
-
4.3 inch (480x272) TFT color LCD
-
Bluetooth:
-
Yes, Bluetooth V2.1
-
Auxiliary Ports:
-
RJ9 headset jack (allowing EHS with Plantronics headsets), USB
-
Sample Applications:
-
Weather, currency, news, XML
-
HD Audio:
-
Yes, both on handset and speakerphone
-
Base Stand/Wall Mountable:
-
Yes, allow 2 angle positions
-
QoS:
-
Layer 2 (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS
-
Dimention:
-
228mm (W) x 206mm (L) x 46.5mm (H)
-
Unit weight:
-
0.98kg

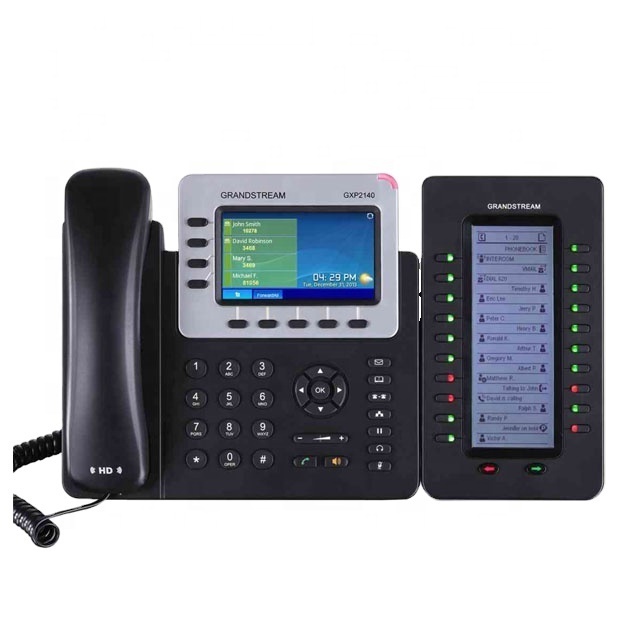

Smart Desk Phone 4 lines Bluetooth Voip Phone Grandstream GXP2140
A versatile Enterprise IP phone, the GXP2140 is a Linux-based device that includes 4 lines, 5 XML programmable soft keys, and 5-way conferencing. A 4.3 inch (480 x 272) color LCD screen and HD audio allow for a crisp display and high quality calls. The GXP2140 comes equipped with Bluetooth, USB and EHS capabilities for flexibility. The phone also comes pre-loaded with weather & currency exchange apps. Add up to four GXP2200EXT modules to view an additional 160 lines, and customize your language for global use.
| Protocols/Standards | NAPTR), DHCP, PPPoE,TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, |
| Network Interfaces | Dual switched auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports with integrated PoE |
| Graphic Display | 4.3 inch (480x272) TFT color LCD |
| Bluetooth | Yes, Bluetooth V2.1 |
| 4 line keys with up to 4 SIP accounts, 5 programmable context sensitive softkeys, 5 | |
| Feature Keys | navigation/menu keys, 11 dedicated function keys for: MESSAGE (with LED indi- |
| cator), PHONEBOOK, TRANSFER, CONFERENCE, HOLD, HEADSET, MUTE, SEND/ | |
| REDIAL, SPEAKERPHONE, VOL+, VOL- | |
| Voice Codecs | Support for G.729A/B, G.711µ/a-law, G.726, G.722 (wide-band), G723.1, iLBC, Opus |
| , and iLBC,in-band and out-of-band DTMF (in audio, RFC2833, SIP INFO), VAD, CNG, | |
| AEC, PLC, AJB, AGC | |
| Auxiliary Ports | RJ9 headset jack (allowing EHS with Plantronics headsets), USB, extension module |
| port | |
| Hold, transfer, forward, 5-way conference, call park, call pickup, shared-call-appea- | |
| Telephony Features | rance (SCA)/bridged-line-appearance (BLA), downloadable phonebook (XML, LDAP, |
| up to 2000 items), call waiting, call log (up to 500 records), customization of screen, | |
| off-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot desking, perso- | |
| nalized music ringtones and music on hold, server redundancy and fail-over | |
| Sample Applications | Weather, currency, news, XML |
| HD Audio | Yes, both on handset and speakerphone |
| Extension Module | Yes, can power up to 4 GXP2200EXT modules which features a 128x384 graphic |
| LCD, 20 quick-dial/BLF keys which dual-color LED, 2 navigation keys, and less than | |
| 1.2W power consumption per unit. | |
| Base Stand/Wall Mountable | Yes, allow 2 angle positions |
| QoS | Layer 2 (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS |
| Security | User and administrator level passwords, MD5 and MD5-sess based authentication, |
| AES based secure configuration file, SRTP, TLS, 802.1x media access control | |
| Multi-language | English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, simplified |
| and traditional Chinese, Korean, Japanese and more | |
| Upgrade/Provisioning | Firmware upgrade via TFTP/HTTP/HTTPS, mass provisioning using TR-069 or |
| encrypted XML configuration file | |
| Power & Green Energy Efficiency | Universal power adapter included: Input: 100-240V; Output: +12V, 1.0A; Integrated |
| Power-over-Ethernet (802.3af) Max power consumption: 6W (without GXP2200EXT), | |
| 10W(with 4 cascaded GXP2200EXTs ) | |
| Physical | Dimention: 228mm (W) x 206mm (L) x 46.5mm (H); Unit weight: 0.98kg; Package |
| weight: 1.55kg | |
| Temperature and Humidity | 0 ~ 40ºC (32 ~ 104ºF ), 10 ~ 90% (non-condensing) |
| Package Content | GXP2140 phone, handset with cord, base stand, universal power supply, network |
| cable, Quick Start Guide | |
| Compliance | FCC Part 15 (CFR 47) Class B; EN55022 Class B, EN55024, EN61000-3-2, EN61000-3- |
| 3, EN 60950-1, EN62479 | |
| AS/NZS CISPR 22 Class B, AS/NZS CISPR 24, RoHS; UL 60950 (power adapter) |
Packaging
1.Trade terms: FOB,CIF,CFR,etc
2.Price Terms: T/T,Western Union,PAYPAL
3.Payment Terms: T/T in advance
4.MOQ: 1 pcs
5.FOB Price:US $110-120/ Piece
6.Port: Shanghai
7.Lead time: Within 3-5 working days after receiving the full payment.
8.Shipment: Express, Air, Sea
9.Supply capability: 200 Piece/Pieces per Week
10.Sample availability: Yes( not free)
11.Package information: carton package with Grandstream original package or as customers' requests.
