Quick Details
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
2900mmx900mmx2070mm
-
Machine Weight:
-
1000 kg
-
Bucket capacity:
-
0.2CBM, 0.2m3
-
Marketing Type:
-
New Product 2022
-
Warranty of core components:
-
1 years
-
Product name:
-
small hydrostatic loader electric mini front wheel loader
-
Load capacity:
-
400KG
-
Engine type:
-
electric motor
-
power:
-
1200W
-
Model:
-
BA400W
-
Color:
-
yellow
-
Brand:
-
Baoomax
-
Drive type:
-
4x4 Wheel Drive
-
weight:
-
1000kg
Quick Details
-
Engine Brand:
-
electric motor
-
Power:
-
1200W
-
Brand Name:
-
Baoomax
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
2900mmx900mmx2070mm
-
Machine Weight:
-
1000 kg
-
Bucket capacity:
-
0.2CBM, 0.2m3
-
Marketing Type:
-
New Product 2022
-
Warranty of core components:
-
1 years
-
Product name:
-
small hydrostatic loader electric mini front wheel loader
-
Load capacity:
-
400KG
-
Engine type:
-
electric motor
-
power:
-
1200W
-
Model:
-
BA400W
-
Color:
-
yellow
-
Brand:
-
Baoomax
-
Drive type:
-
4x4 Wheel Drive
-
weight:
-
1000kg

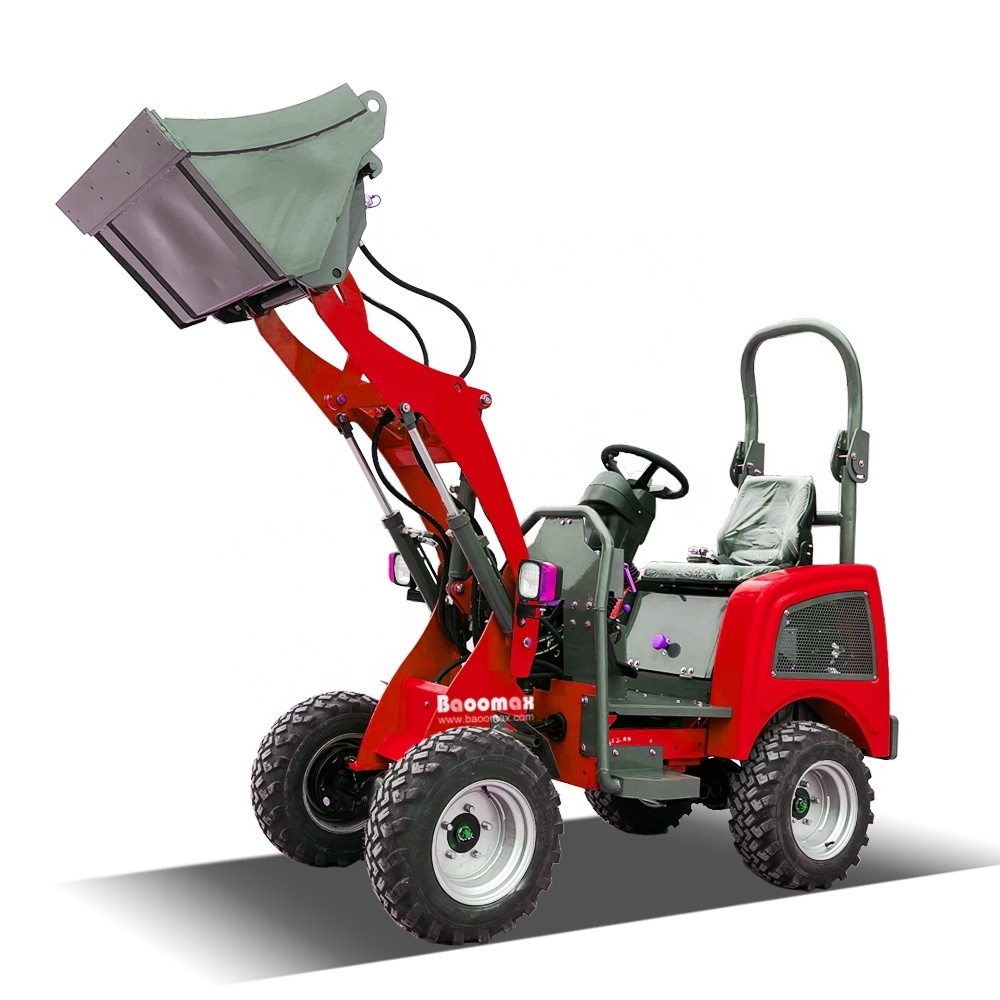

China famous Baoomax 400kg multi function small hydrostatic loader electric mini front wheel loader
|
Performance |
Rated Load ( KG ) |
400 |
|
|
Bucket rated capacity ( m)³ |
0.2 |
||
|
Dumping height ( mm) |
1350 |
||
|
( at 45° ) |
|||
|
Lifting Height ( mm) |
2100 |
||
|
Dumping Reach ( mm) |
450 |
||
|
Max. Excavation Force ( kn) |
8 |
||
|
Max. Grade ability |
15 |
||
|
Max. Turning Angel |
28°±1 |
||
|
Swing degree of the rear axle |
3 |
||
|
Dimensions. &.Weight |
Overall length ( Bucket on Ground position ) mm |
2900 |
|
|
Bucket width ( overall width ) |
900 |
||
|
Overall Height(mm) |
2070 |
||
|
Wheel base(mm) |
1387 |
||
|
Min Ground Clearance(mm) |
300 |
||
|
Net Weight ( kg) |
1000kg |
||
|
Battery |
Battery Model No. |
6-EVF-120A |
|
|
rated capacity ( 3hr) |
120Ah |
||
|
No.of battery groups |
5 |
||
|
Rated Voltage |
60V |
||
|
Working hours ( h ) |
4h |
||
|
Transmission System |
Hydraulic System |
Motor No. |
HL-60 |
|
Voltage |
60V |
||
|
Power |
1200W |
||
|
Displacement ( ml/r) |
14 |
||
|
Tyres |
Type |
6.00-12 |
|
|
working pressur e ( mpa) |
0.25 |
||
|
Qty |
4 |
||
|
Steering System |
Type of Steering Hydraulic System |
Full Hydraulic Steering System |
|
|
System Pressure ( mpa) |
16 |
||
|
Type of Steering Pump |
External Gear Pump |
||
|
Steering Cylinder Bore ( mm) |
50 |
||
|
Qty ( pc ) |
1 |
||
|
Braking System |
Service Brake |
Drum Brake |
|
|
Brake Drum ( mm) |
200 |
||
|
Parking Brake |
Drum Brake |
||
|
|
Distribution Valve |
Model |
DL10 |
|
Type |
Triple valve stem |
||
|
Dumping Cylinder-Bore |
ø50 |
||
|
Lifting Cylinder-Bore |
ø50 |
||
|
Oil Capacity |
Hydraulic Oil Tank ( L) |
11 |
|
|
Brake Fluid ( L) |
0.8 |
||
