Quick Details
-
Product name:
-

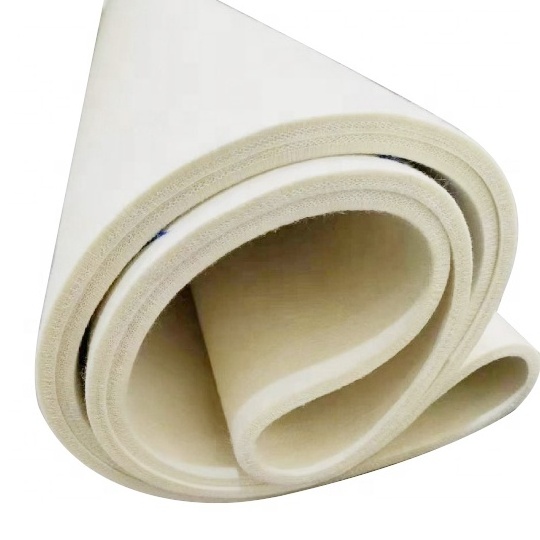

High temperature resistant digital printing blanket
-
Size:
-
8mm
-
Color:
-
rice-white
-
Material:
-
Aramid fiber
Quick Details
-
Color & Page:
-
Multicolor
-
Place of Origin:
-
China
-
Weight:
-
15 KG
-
Product name:
-
High temperature resistant digital printing blanket
-
Size:
-
8mm
-
Color:
-
rice-white
-
Material:
-
Aramid fiber
Product Description
The blanket is made of high temperature resistant 100% aramid fibre,100% Nomex ，the intermediate base cloth is made of seamless cylinder base cloth, the dry heat shrinkage rate of the door width is 2.5%, elongation 3%, the use temperature is below 250℃, the regular thickness is 8mm, the grammage is 3200g/㎡, , can be customised thickened type, grammage 3600g / ㎡ Above, it is a variety of fabrics, curtain fabrics, mouse pads, webbing zips and other special blankets for digital cylinder printing machine, suitable for domestic and imported digital cylinder printing machine. The size can be customised according to customers' requirements.
Specification
|
item
|
value
|
|
Place of Origin
|
China
|
|
material
|
100%Aramid fiber 100% Nomex
|
|
Shrinkage of door width
|
2.5%
|
|
Operating temperature
|
Below 250℃
|
|
Size
|
Any size is ok
|
|
Conventional thickness
|
7-12mm or as customer's request
|
|
Grammage
|
3200g/㎡
|
|
Customized or not
|
customized
|
|
MOQ
|
1 Piece
|
Installation problems of thermal transfer machine blankets:
The thermal transfer machine blankets are generally adjusted before they leave the factory, because the thermal transfer machine blankets work at a high temperature of 250°C, and the cold machine and thermal transfer machine blankets experience thermal expansion and contraction, so when the transfer is just started If there is a deviation, please use the following methods to solve it.
1. In normal transfer, the blanket moves to the left and can be driven in the reverse direction. At this time, the blanket moves to the right and stops on the side of the big drum. Tighten the adjustment screw at the left end of the lower tension shaft ``4'' and loosen it properly. Just lower the adjusting screw at the right end of the tension shaft ``4''.
2. After using the above method to correct the deviation, if the blanket is still moving to the left at this time, please turn the
high-speed joint screw at the right end of the front upper tension shaft ``1'' and push it forward by 5-8mm.
3. Move the blanket to the right, and you can drive in the opposite direction. At this time, the blanket will move to the left and stop on the side of the big tube. Tighten the adjusting screw at the right end of the rear lower tension shaft ``4'', and loosen the rear lower tension shaft properly. The adjustment screw at the left end of 4" is enough.
4. After using the above method to correct the deviation, if the blanket is still going to the right at this time, please turn the
adjustment screw at the left end of the front upper tension shaft "4" and push it forward by 5-8mm.
Precautions
1. During normal transfer, if the content that needs to be transferred is not ready, you can lower the speed appropriately. It is best not to stop, so as to avoid too much color deviation, and do not reverse to avoid shadows.
2. After the machine is used, it should still be in a rotating state, because the temperature is still very high after it is used,
it may damage the blanket after it stops, and reduce the service life of the blanket, and the temperature must be kept within a safe range. Turn off the main power supply.
3. If there is a power outage during transfer, turn the hand wheel so that the blanket can be completely separated from the
roller. The most important aspect is to reduce the temperature. It is estimated that the rotation can be stopped after it drops to a safe range, but the main power supply must be turned off. So as not to know when you call.
4. When the machine is running at high speed, the positive and negative gears cannot be interchanged to avoid burning the fuse.The forward and reverse gears can only be interchanged after turning down the speed.
The thermal transfer machine blankets are generally adjusted before they leave the factory, because the thermal transfer machine blankets work at a high temperature of 250°C, and the cold machine and thermal transfer machine blankets experience thermal expansion and contraction, so when the transfer is just started If there is a deviation, please use the following methods to solve it.
1. In normal transfer, the blanket moves to the left and can be driven in the reverse direction. At this time, the blanket moves to the right and stops on the side of the big drum. Tighten the adjustment screw at the left end of the lower tension shaft ``4'' and loosen it properly. Just lower the adjusting screw at the right end of the tension shaft ``4''.
2. After using the above method to correct the deviation, if the blanket is still moving to the left at this time, please turn the
high-speed joint screw at the right end of the front upper tension shaft ``1'' and push it forward by 5-8mm.
3. Move the blanket to the right, and you can drive in the opposite direction. At this time, the blanket will move to the left and stop on the side of the big tube. Tighten the adjusting screw at the right end of the rear lower tension shaft ``4'', and loosen the rear lower tension shaft properly. The adjustment screw at the left end of 4" is enough.
4. After using the above method to correct the deviation, if the blanket is still going to the right at this time, please turn the
adjustment screw at the left end of the front upper tension shaft "4" and push it forward by 5-8mm.
Precautions
1. During normal transfer, if the content that needs to be transferred is not ready, you can lower the speed appropriately. It is best not to stop, so as to avoid too much color deviation, and do not reverse to avoid shadows.
2. After the machine is used, it should still be in a rotating state, because the temperature is still very high after it is used,
it may damage the blanket after it stops, and reduce the service life of the blanket, and the temperature must be kept within a safe range. Turn off the main power supply.
3. If there is a power outage during transfer, turn the hand wheel so that the blanket can be completely separated from the
roller. The most important aspect is to reduce the temperature. It is estimated that the rotation can be stopped after it drops to a safe range, but the main power supply must be turned off. So as not to know when you call.
4. When the machine is running at high speed, the positive and negative gears cannot be interchanged to avoid burning the fuse.The forward and reverse gears can only be interchanged after turning down the speed.
