Quick Details
-
Model Number:
-
GRT8-LS-AC230
-
Product name:
-
Staircase Time Switch
-
3 Function:
-
ON/AUTO/PFF
-
Voltage Range:
-
AC230V
-
Frequency:
-
50/60HZ
-
Time Range:
-
AUTO:0.5-20MIN ON OFF
-
Weight/pcs:
-
1KG/PCS
-
Current:
-
16A
-
Certifications:
-
CE CB
-
Warranty/guarantee:
-
18months
-
MOQ:
-
20PCS
Quick Details
-
Contact Load:
-
Low Power
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
GEYA OEM ODM
-
Model Number:
-
GRT8-LS-AC230
-
Product name:
-
Staircase Time Switch
-
3 Function:
-
ON/AUTO/PFF
-
Voltage Range:
-
AC230V
-
Frequency:
-
50/60HZ
-
Time Range:
-
AUTO:0.5-20MIN ON OFF
-
Weight/pcs:
-
1KG/PCS
-
Current:
-
16A
-
Certifications:
-
CE CB
-
Warranty/guarantee:
-
18months
-
MOQ:
-
20PCS
··········This link price is only for GRT8-LS-AC230··········
Products Description

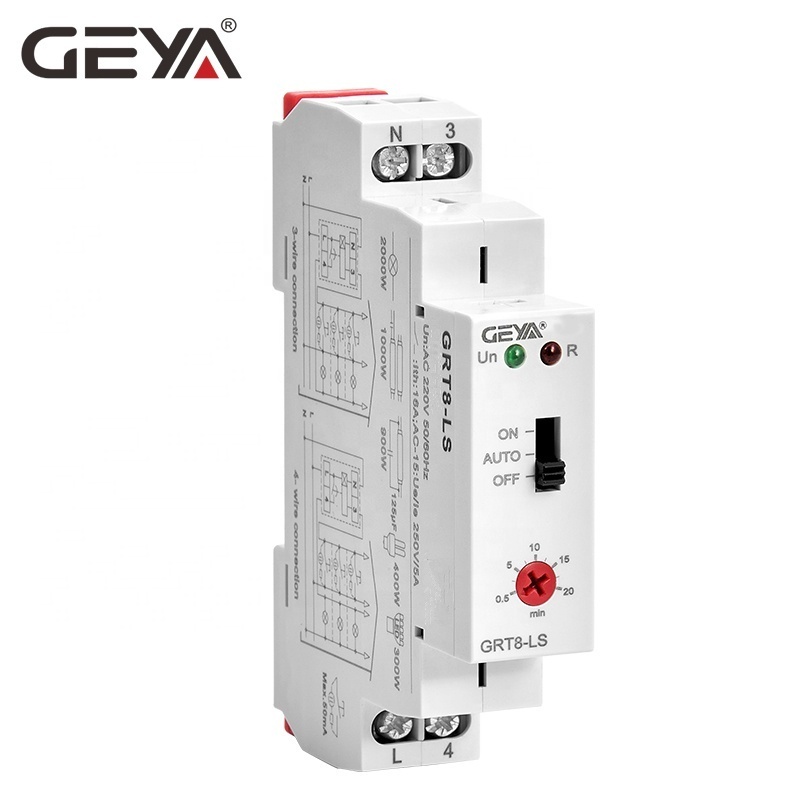

GRT8-LS Staircase time switch is used for delayed switching of lights in the corridors, entrances, stairways, halls or for
delayed fi nish of fans (WC, bathroom, etc.).
- GRT8-LS
Function Features
-Operating system switch:
ON- output is constantly ON .
AUTO- timing according to adjusting by potentiometer in range 0.5 - 20 min
OFF-output is constantly OFF.
- Voltage range: AC 230 V, clamp terminals.
- Relay status is indicated by LED.
- 1-MODULE,DIN rail mounting.
Product Paramenters
|
|
GRT8-LS
|
|
Function
|
delay off reacting to contact switching
|
|
Supply terminals
|
L-N
|
|
Voltage range
|
AC230V(50-60Hz)
|
|
Power input
|
AC max.6VA/1.3W
|
|
Supply voltage tolerance
|
-15%;+10%
|
|
Supply indication
|
green LED
|
|
Time ranges
|
AUTO:0 5-20min ON OFF
|
|
Time setting
|
potentionmeter
|
|
Time deviation
|
10%-mechanical setting
|
|
Repeat accuracy
|
0.2%-setvalue stability
|
|
Mininum power time
|
200ms
|
|
Glow tubes connetions
|
Yes(N-3 or L-3)
|
|
Max.amount of glow lamps
|
230V,max.75pcs(Measured with glow lamp 0.68mA/230VAC)
|
|
Temperature coefficient
|
0.05%/℃,at=20℃(0.05%F,at=68°F)
|
|
Output
|
1×SPST
|
|
Current rating
|
16A/AC1
|
|
Switching voltage
|
250VAC/24VDC
|
|
Min.breaking capacity DC
|
500mW
|
|
Output indication
|
redLFD
|
|
Mechanical life
|
1×107
|
|
Electrical life(AC1)
|
1×105
|
|
Reset time
|
max.200ms
|
|
Operating temperature
|
-20℃ to+55℃(-4F to 131F)
|
|
Storage temperature
|
-35℃ to+75℃(-22F to 158F)
|
|
Mounting/DIN rail
|
Din rail EN/IEC 60715
|
|
Protection degree
|
IP40 for front panel/IP20 terminals
|
|
Operating position
|
any
|
|
Overvoltage cathegory
|
III
|
|
Pollution degree
|
2
|
|
Max.cable size(mm²)
|
solid wire max.1X2.5or2×1.5/with sleeve max.1X2.5(AWG 12)
|
|
Dimensions
|
90×18×64mm
|
|
Weight
|
61g
|
|
Standards
|
EN61812-1,IEC 60669-2-3,IEC60947-5-1
|
Packing List
|
Item
|
Specification
|
N.W. of product (g)
|
G.W. of product (g)
|
Medium box weight
(g) |
G.W. of 60pcs/CTN (kg)
|
G.W. of 100pcs/CTN(kg)±50g
|
G.W. of 200pcs/CTN(kg)
|
|
GRT8-LS
|
AC230
|
61.2
|
74.0
|
806
|
5.19
|
8.53
|
16.76
|
