Quick Details
-
Resonant Frequency:
-
1.70-30KHz±60KHz
-
Resonant Impedance:
-
Max.5Ω
-
Capacitance:
-
1600±15%PF
-
Electromechanical Coupling Factor:
-
Min.55%
-
Mechanical quality:
-
Min.800
-
Dielectric loss:
-
Max.0.5%
-
Piezoelectric constant(C/N):
-
Min.300
-
Operating Temperature:
-
-20~70℃
-
Srorage Temperature:
-
-30~80℃
-
RoHs:
-
yes
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
MANORSHI
-
Model Number:
-
MNSE2517B-W
-
Resonant Frequency:
-
1.70-30KHz±60KHz
-
Resonant Impedance:
-
Max.5Ω
-
Capacitance:
-
1600±15%PF
-
Electromechanical Coupling Factor:
-
Min.55%
-
Mechanical quality:
-
Min.800
-
Dielectric loss:
-
Max.0.5%
-
Piezoelectric constant(C/N):
-
Min.300
-
Operating Temperature:
-
-20~70℃
-
Srorage Temperature:
-
-30~80℃
-
RoHs:
-
yes

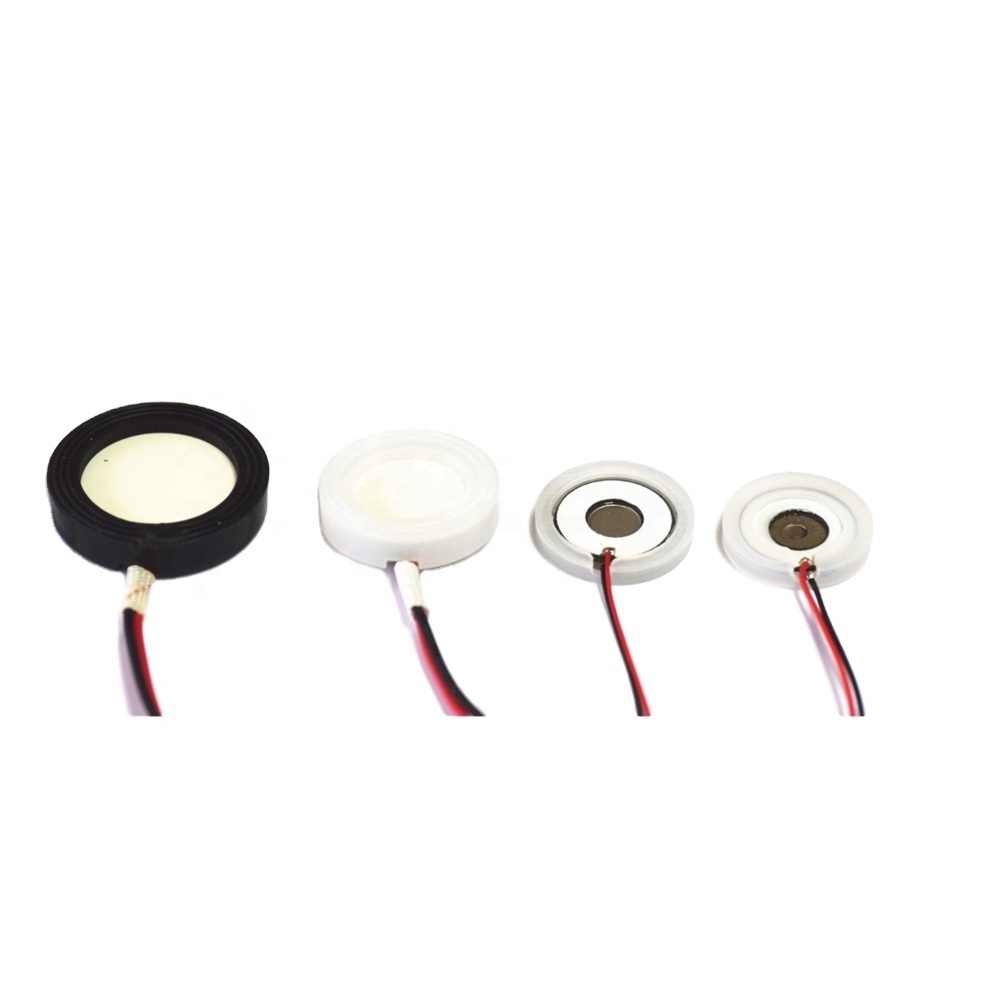

1.7mhz Ultrasonic Micropore atomizer membrane ceramic
Specification
|
Resonant Frequency(Note 1) |
1.70-30KHz±60KHz | ||||
|
Resonant Impedance(Note 1) |
Max.5Ω |
||||
|
Capacitance (Note 2) |
1600±15%PF |
||||
|
Electromechanical Coupling Factor(kt,kp) |
Kp=Min.25% |
||||
|
Mechanical quality(Qm) |
Min.800 |
||||
|
Dielectric loss(tan) |
Max.0.5% |
||||
|
Piezoelectric constant(C/N) |
Min.300 |
||||
|
Operating Temperature |
-20~70℃ |
||||
|
Srorage Temperature |
-30~80℃ |
||||
|
Buzzer Soldering process |
Soldering Parameter |
||||
|
Temp(℃) |
Time(Sec.) |
Times |
|||
|
Inclusive Lead |
|
Reflow soldering |
230±10 |
Above 170℃ time 40~70 |
2 |
|
|
Wave soldering |
245±5 |
3~6 |
1~2 |
|
|
|
Manual soldering |
330±10 |
1~2 |
1~2 |
|
|
Lead Free |
|
Reflow soldering |
245±15 |
Above 180℃ time 40~70 |
3 |
|
|
Wave soldering |
260±5 |
4~8 |
2~3 |
|
|
* |
Manual soldering |
350±10 |
1~3 |
2~3 |
|
Note1:Measured by HP-4194Aat 25℃ 80%R.H
Note2:Measured by LCR meter at 1kHZ,10Vms
Dimension
