Quick Details
-
Brand Name:
-
KINGLEI
-
Dimension(L*W*H):
-
CUSTOMIZED
-
Weight:
-
3 KG
-
Product name:
-
Air Purifier
-
Type:
-
Hepa Filter
-
Application:
-
Hotel, Commercial, Household, Fume end of commercial hood
-
Material:
-
ABS frame+glass fiber
-
Keyword:
-
HEPA Air Purifier
-
Usage:
-
Remove 99% Bacteria/Virus/Pollen/Smoke/Mite/Dust/Dander
-
Media:
-
glass fiber/PP/PTFE
-
Color:
-
Customized Color
-
Size:
-
592*592*292mm or Customized size
Quick Details
-
Efficiency:
-
99.5-99.9, F9 H10 H11 H12 H13
-
Porosity:
-
N/T
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
KINGLEI
-
Dimension(L*W*H):
-
CUSTOMIZED
-
Weight:
-
3 KG
-
Product name:
-
Air Purifier
-
Type:
-
Hepa Filter
-
Application:
-
Hotel, Commercial, Household, Fume end of commercial hood
-
Material:
-
ABS frame+glass fiber
-
Keyword:
-
HEPA Air Purifier
-
Usage:
-
Remove 99% Bacteria/Virus/Pollen/Smoke/Mite/Dust/Dander
-
Media:
-
glass fiber/PP/PTFE
-
Color:
-
Customized Color
-
Size:
-
592*592*292mm or Customized size

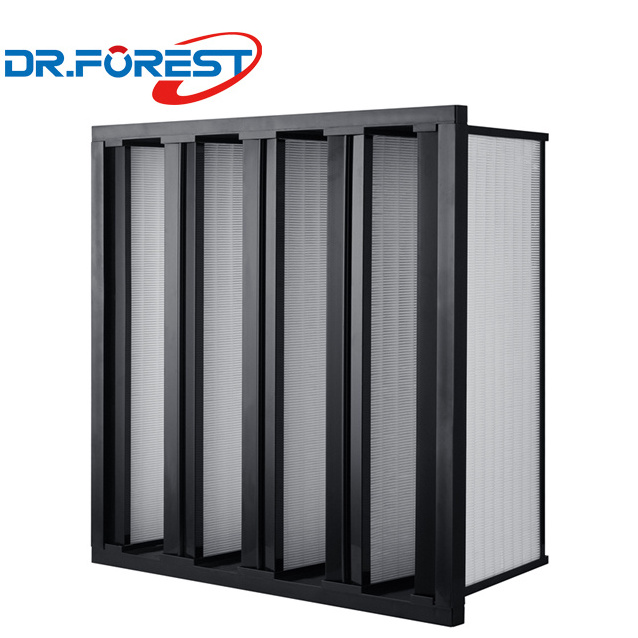

Professional Large Volume Air Conditioning And Ventilation System W-type Medium High Efficient V-Bank Air Filter
| Frame | Aluminum / Galvanized Plate / ABS plastic | |||
| Media | Fiberglass /PTFE/PP | |||
| Adopt Standard | EN1822 | |||
| Size |
287*492*292mm-2V 287*592*292mm-2V 490*287*292 mm -3V 490*490*292mm-3V 592*592*292mm-4V 490*592*292mm-4V |
|||
| Frame Thickness | 292mm | |||
| Divider | Hot melt glue | |||
| Feature |
1.low flow resistance
|
|||
| Application | Electronics plants, food processing plants, pharmaceutical plants, hospital operating theatres, fibre optic equipment plants, etc. | |||
|
Sealant | Seal | Maximum operating temperature/humidity | Filtration efficiency | |
| 592*592*292mm | Two-component polyurethane glue | EVA/EPDM | 80℃/80% | F5-H14 |
What is v-bank?
V bank filters, also be called as v cell filters, rigid pocket filters, are the most important part in clean room ventilation systems when filtration level 100 or 10. V bank filters are pre-filters before HEPA filters, the role and function are the same as pocket filters, but v bank filters offer more stable performance.
The 'V' design provides significantly more surface area than pocket filters, reducing the overall pressure drop in the system and extending HEPA filters life. To enlarge the service life of HEPA filters, V bank filters need to remove most of the 0.5um particles with efficiency from 75-99%.
Normally, the v bank filters are made of ABS plastic frame, mini pleated glass fiber or pp pack, hot melt glue as the separator, they are manufactured in a doubleheader frame and are relatively lightweight when compared to the overall capacity of the products.
